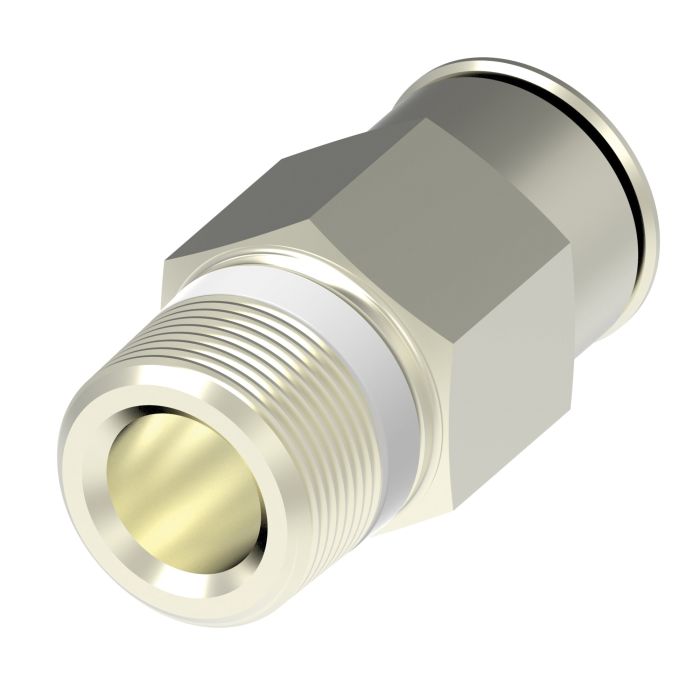

Brass Push>Connect Metric Tube Fitting, 10.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

Ask A Question

Description & Features

Designed for efficiency in compressed pneumatic instrumentation circuit lubricant and cooling lines this Push>Connect swivel straight adapter offers significant ease of assembly without requiring tools. Constructed from robust brass with nickel plating it ensures longevity and reliable performance.

Features a 10.00 mm tube OD connecting to a 1/4-19 male universal BSPP/BSPT thread adapting seamlessly to various industry requirements.

With a temperature range spanning from -40F to 200F it ensures durability under extreme conditions. The fittings are reusable allowing for effortless assembly and disassembly reducing maintenance time.

The O-ring is made of Buna-N with Viton options available upon request. Suitable for applications up to 250 psi and fittings rated at 29.5 inches of mercury vacuum.

Brand: Danfoss Power Solutions (Aeroquip Inc-Alternate). Catalog Number: C1HL91. UNSPSC: 40183100.

Supplier Part Number: 1168X10MX4PT

MPN: 1168X10MX4PT

Specifications

Brand
Danfoss
Connection Size 2
1/4 in
Connection Type
Male BSP, Push-Fit
Connection Type 1
Female Push-to-Connect
Connection Type 2
Male BSPT
Dimensions
28.5 mm L x 18.5 mm W
f Dimensions
16.3 mm
Finish
Nickel-Plated
Fitting Type
Connector
For Use With
PT230, TP160 Nylon and PT240 Polyethylene Tubings
Hex Size
17 mm
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
250 psi
Series
1168X Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4-19

Similar Products

Model Number Tube O.D. Thread Size f Dimensions L Price Action
Brass Push>Connect Metric Tube Fitting, 10.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, Straight

1168X10MX6PT Push>Connect To Male BSPP/BSPT Adapter

10

3/8-19

16.3 mm

25.5

Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, Straight

1168X12MX6PT Push>Connect To Male BSPP/BSPT Adapter

12

3/8-19

18.3 in

30.5

Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD To 1/2-14 Male Universal BSPP/BSPT, Straight

1168X12MX8PT Push>Connect To Male BSPP/BSPT Adapter

12

1/2-14

18.3 in

27

Brass Push>Connect Metric Tube Fitting, 4.00 mm Tube OD To 1/8-28 Male Universal BSPP/BSPT, Straight

1168X4MX2PT Push>Connect To Male BSPP/BSPT Adapter

4

1/8-28

8.8 in

18

Brass Push>Connect Metric Tube Fitting, 4.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X4MX4PT Push>Connect To Male BSPP/BSPT Adapter

4

1/4-19

8.8 in

19.5

Brass Push>Connect Metric Tube Fitting, 6.00 mm Tube OD To 1/8-28 Male Universal BSPP/BSPT, Straight

1168X6MX2PT Push>Connect To Male BSPP/BSPT Adapter

6

1/8-28

11.7 mm

20.5

Brass Push>Connect Metric Tube Fitting, 6.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X6MX4PT Push>Connect To Male BSPP/BSPT Adapter

6

1/4-19

9.8 mm

20

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X8MX4PT Push>Connect To Male BSPP/BSPT Adapter

8

1/4-19

13.7 mm

24

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, Straight

1168X8MX6PT Push>Connect To Male BSPP/BSPT Adapter

8

3/8-19

13.7 in

23.5

Product Questions & Answers (2)

Question by: Diane W on Nov 9, 2025, 11:19 AM
trying to hook up 10mm metric tube to a 1/4-19 male BSPP or BSPT port, is that what this adapter is for?
Answer by: Customer Support on Nov 11, 2025, 7:09 AM
Built for that exact connection, it takes 10.00 mm tube OD on the push to connect side and mates to a 1/4-19 male universal BSPP/BSPT thread on the other end in a straight swivel adapter style.
Question by: Cody G on Nov 14, 2025, 10:49 AM
fitting says it goes up to 250 psi, is that enough for a standard compressed air line or cooling circuit, or is that on the low end?
Answer by: Customer Support on Nov 15, 2025, 12:23 PM
For typical compressed air instrumentation lines and cooling circuits, 250 psi is right in the normal working range. Most shop air systems run well below that, and light-duty cooling and lubrication circuits rarely push anywhere close to that ceiling. Where this fitting starts to fall short is in heavier hydraulic applications that see sustained high pressures. Stick to pneumatic, instrumentation, or low-pressure fluid lines and that 250 psi rating gives you plenty of headroom.
