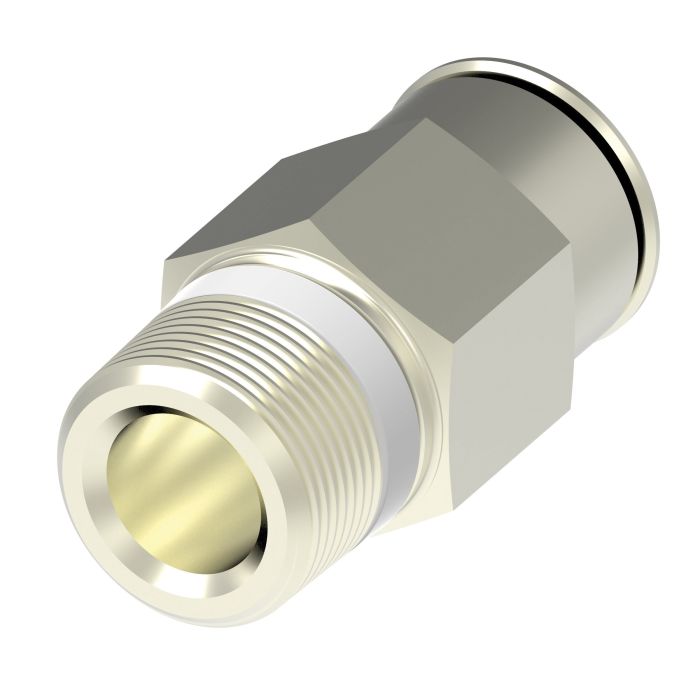

main product photo

Brass Push>Connect Metric Tube Fitting, 4.00 mm Tube OD To 1/8-28 Male Universal BSPP/BSPT, Straight

Ask A Question

Description & Features

Designed for high-performance in compressed pneumatic instrumentation circuit lubricant and cooling lines. This fitting supports ease of assembly and disassembly requiring no tools making it reusable. Featuring a nickel-plated brass construction these fittings are durable and reliable under various conditions.

Fittings rated at 29.5 inches of mercury vacuum and capable of handling up to 250 psi pressure depending on tube size. The temperature range is -40F to 200F though it's important not to exceed the tubing temperature range.

Incorporating an O-Ring of Buna-N construction this fitting ensures secure connections. (Viton O-Ring available on request by special order.) To connect simply push the tubing into the fitting. To disconnect depress the collet ring with two fingers and withdraw.

Supplier Part Number: 1168X4MX2PT

MPN: 1168X4MX2PT

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
F
8.80
L
18
Supplier Part Number
1168X4MX2PT
Thread 1
1/8-28
Tube O.D.
4
Tube O.D.
4
Alternate Part Numbers
Alternate Part Number C1HM13, Alternate Part Number MI-03098763, Alternate Part Number MINO-00015X02440, Alternate Part Number MINO-00925J15128
Product Weight
0.02 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 F L Price Action
Brass Push>Connect Metric Tube Fitting, 10.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X10MX4PT Push>Connect To Male BSPP/BSPT Adapter

10

1/4-19

16.3

28.5

Brass Push>Connect Metric Tube Fitting, 10.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, Straight

1168X10MX6PT Push>Connect To Male BSPP/BSPT Adapter

10

3/8-19

16.3

25.5

Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, Straight

1168X12MX6PT Push>Connect To Male BSPP/BSPT Adapter

12

3/8-19

18.3

30.5

Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD To 1/2-14 Male Universal BSPP/BSPT, Straight

1168X12MX8PT Push>Connect To Male BSPP/BSPT Adapter

12

1/2-14

18.3

27

Brass Push>Connect Metric Tube Fitting, 4.00 mm Tube OD To 1/8-28 Male Universal BSPP/BSPT, Straight

1168X4MX2PT Push>Connect To Male BSPP/BSPT Adapter

4

1/8-28

8.8

18

Brass Push>Connect Metric Tube Fitting, 4.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X4MX4PT Push>Connect To Male BSPP/BSPT Adapter

4

1/4-19

8.8

19.5

Brass Push>Connect Metric Tube Fitting, 6.00 mm Tube OD To 1/8-28 Male Universal BSPP/BSPT, Straight

1168X6MX2PT Push>Connect To Male BSPP/BSPT Adapter

6

1/8-28

11.7

20.5

Brass Push>Connect Metric Tube Fitting, 6.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X6MX4PT Push>Connect To Male BSPP/BSPT Adapter

6

1/4-19

9.8

20

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X8MX4PT Push>Connect To Male BSPP/BSPT Adapter

8

1/4-19

13.7

24

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, Straight

1168X8MX6PT Push>Connect To Male BSPP/BSPT Adapter

8

3/8-19

13.7

23.5

Product Questions & Answers (1)

Question by: Cody R on Oct 31, 2025, 12:59 PM
fitting says it goes up to 250 psi but I'm running 4mm tubing on a pneumatic line, is that pressure rating actually good for my tube size or does it drop down?
Answer by: Customer Support on Nov 1, 2025, 5:54 PM
Pressure capacity on these push-connect fittings does vary depending on tube size, so 250 psi is the ceiling across the product range, not a flat guarantee for every size. With 4mm tubing specifically, you'll want to stay within whatever your tubing's own rated pressure is, since the fitting instructions call out not exceeding the tubing's temperature and pressure limits. As long as your line stays under both the fitting's max and your tubing's rated threshold, you're in good shape for standard pneumatic instrumentation work.
