main product photo

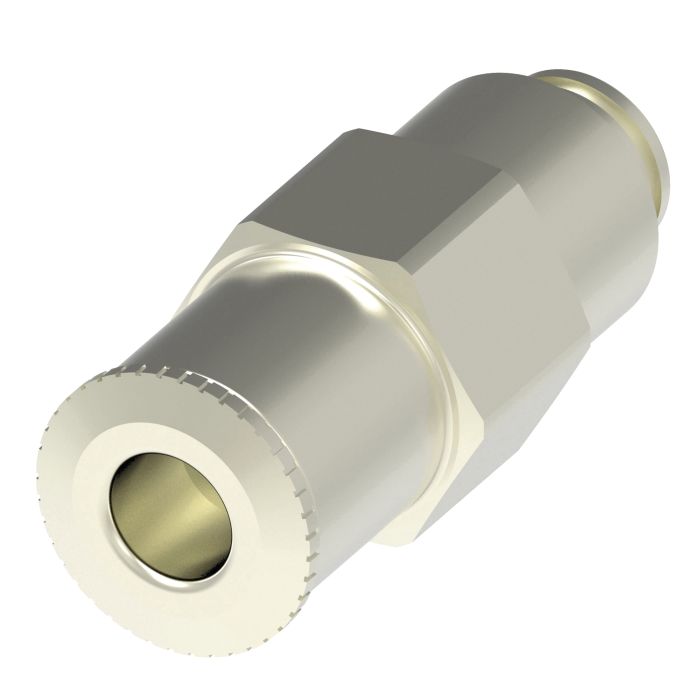

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

Ask A Question

Description & Features

Brass Push>Connect Metric Tube Fitting 8.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT Straight is designed for use in compressed pneumatic instrumentation circuit lubricant and cooling lines.

The fitting offers ease of assembly with no tools required and is reusable saving time during both assembly and disassembly processes.

Constructed from nickel-plated brass the fitting ensures durability and reliable performance. The temperature range is between -40F to 200F which should be considered in conjunction with the compatible plastic tubing's temperature range.

The pressure range reaches up to 250 psi depending on the size of the tube and the fittings are rated for 29.5 inches of mercury vacuum as well. An O-Ring made from Buna-N is included with Viton available upon special request.

Assembly is simple; connect by pushing the tubing into the fitting and disconnect by depressing the collet ring with two fingers and withdrawing.

ECCN: EAR99

Supplier Part Number: 1168X8MX4PT

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
F
13.70
L
24
Supplier Part Number
1168X8MX4PT
Thread 1
1/4-19
Tube O.D.
8
Tube O.D.
8
Alternate Part Numbers
Alternate Part Number C1HM23, Alternate Part Number MINO-00015X02460
Product Weight
0.03 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 F L Price Action
Brass Push>Connect Metric Tube Fitting, 10.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X10MX4PT Push>Connect To Male BSPP/BSPT Adapter

10

1/4-19

16.3

28.5

Brass Push>Connect Metric Tube Fitting, 10.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, Straight

1168X10MX6PT Push>Connect To Male BSPP/BSPT Adapter

10

3/8-19

16.3

25.5

Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, Straight

1168X12MX6PT Push>Connect To Male BSPP/BSPT Adapter

12

3/8-19

18.3

30.5

Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD To 1/2-14 Male Universal BSPP/BSPT, Straight

1168X12MX8PT Push>Connect To Male BSPP/BSPT Adapter

12

1/2-14

18.3

27

Brass Push>Connect Metric Tube Fitting, 4.00 mm Tube OD To 1/8-28 Male Universal BSPP/BSPT, Straight

1168X4MX2PT Push>Connect To Male BSPP/BSPT Adapter

4

1/8-28

8.8

18

Brass Push>Connect Metric Tube Fitting, 4.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X4MX4PT Push>Connect To Male BSPP/BSPT Adapter

4

1/4-19

8.8

19.5

Brass Push>Connect Metric Tube Fitting, 6.00 mm Tube OD To 1/8-28 Male Universal BSPP/BSPT, Straight

1168X6MX2PT Push>Connect To Male BSPP/BSPT Adapter

6

1/8-28

11.7

20.5

Brass Push>Connect Metric Tube Fitting, 6.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X6MX4PT Push>Connect To Male BSPP/BSPT Adapter

6

1/4-19

9.8

20

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD To 1/4-19 Male Universal BSPP/BSPT, Straight

1168X8MX4PT Push>Connect To Male BSPP/BSPT Adapter

8

1/4-19

13.7

24

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD To 3/8-19 Male Universal BSPP/BSPT, Straight

1168X8MX6PT Push>Connect To Male BSPP/BSPT Adapter

8

3/8-19

13.7

23.5

Product Questions & Answers (2)

Question by: Scott C on Oct 25, 2025, 6:25 PM
Fitting works without tools right? Got a pneumatic line I need to tie into and really can't be tearing things apart for long.
Answer by: Customer Support on Oct 27, 2025, 9:46 AM
Push the tubing straight into the fitting until it seats and you're done. No tools, no fittings to thread by hand, no clamps. When you need to pull it back apart, just press the collet ring in with two fingers and slide the tube out. The whole thing is reusable, so you're not throwing it away every time you disconnect it.
Question by: Wade J on May 6, 2025, 2:32 PM
got 8mm plastic tube already, will this push-to-connect end fit it and what’s on the other side thread-wise?
Answer by: Customer Support on May 7, 2025, 7:02 PM
Built for 8.00 mm tube OD on the push-to-connect side, and the male end is 1/4-19 with a universal BSPP/BSPT thread in a straight configuration.
