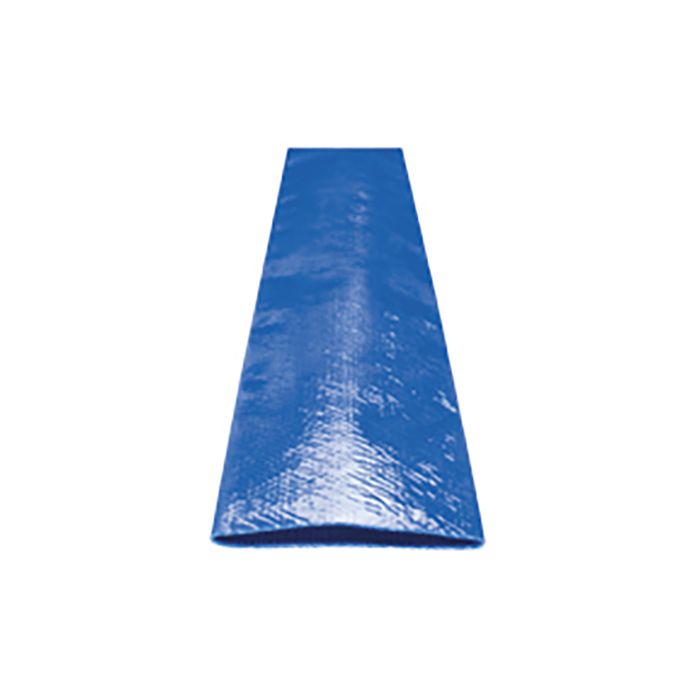

PVC Water Discharge Blue Layflat Hose

Description & Features

Application	A general purpose PVC water discharge hose.
Construction	Features a balanced polyester yarn spiral wrap, longitudinal strength member and homogeneous PVC tube and cover to prevent separation.
Fittings	Shank Type (Aluminium, Steel, Brass, Stainless Steel). Cam & Groove (Aluminum, Polypropylene)
Fittings & Fitting Attachment Suggestions	• Aluminum, malleable iron or brass shank type fittings attached with preformed clamps. • Cam & Groove type fittings attached with preformed clamps.
Temperature Range	-5°F to 170°F.

Model Number	Size	Hose I.D.	Wall Thickness	Maximum Working Pressure	Length
BU200-PVC-DISCHA PVC Water Layflat Hose	2 in	2.087	0.048	65	300
BU300-PVC-DISCHA PVC Water Layflat Hose	3 in	3.071	0.055	60	300
BU400-PVC-DISCHA PVC Water Layflat Hose	4 in	4.134	0.083	70	300
BU600-PVC-DISCHA PVC Water Layflat Hose	6 in	6.102	0.061	40	300
