main product photo

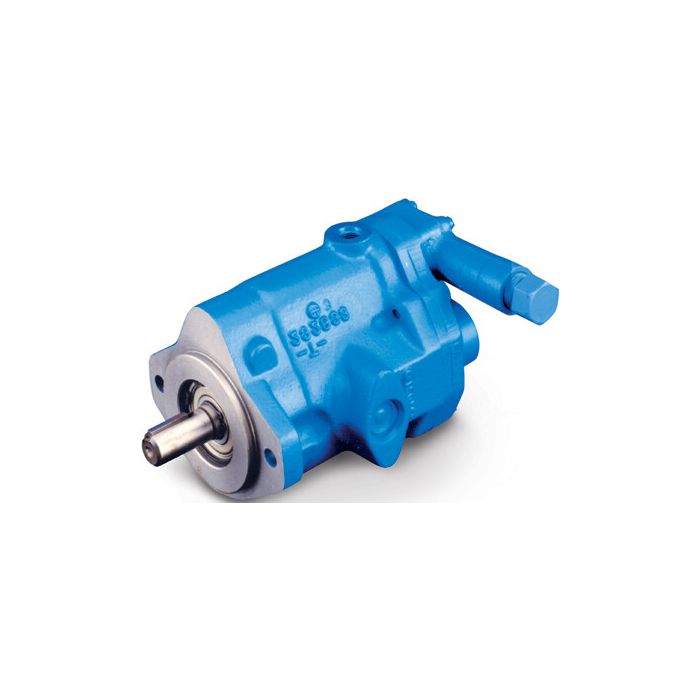

PVQ Series Industrial Piston Pump, 2.01 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, Reduced operating noise|Longer life|Lower operating pressure

Ask A Question

Description & Features

The Eaton Vickers PVQ Series Industrial Piston Pump is engineered for demanding applications such as mining machinery, injection molding, and metal forming. With a displacement of 2.01 cu in/rev and a 2-Bolt SAE B mounting flange, this pump ensures efficient performance in various industrial settings. Designed with a 7/8 straight keyed shaft, the pump delivers reliable operation while maintaining reduced noise levels and extended service life. It operates at a maximum pressure of 2000 PSI, making it suitable for heavy-duty tasks. The pressure-compensated control maintains optimal performance within a 350-3000 PSI range, set at 2000 PSI for maximum efficiency. Viton® seals offer durability, handling system temperatures from 0°F to 180°F.

SKU: 02-341685

Supplier Part Number (MPN): 02-341685

Alternate Part Numbers: C1JV15

Specifications

Application
Mining Machinery, Injection Molding Machines, Metal Forming Machines, Oil and Gas Equipment, Conveyor Lines, Primary Metals, Metal Cutting Equipment
Control
Pressure Compensated (350-3000 PSI range, set 2000 PSI)
Displacement
2.01
Displacement
2.01
Brand
Danfoss (Power Solutions II LLC)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Reduced operating noise|Longer life|Lower operating pressure
Maximum Operating Pressure
2000
Mount
2-Bolt SAE B
Mount
2-Bolt SAE B
Pressure Rating
2000
Rated Flow
15.66
Rated Flow
15.66
Shaft
7/8 Straight Keyed
Shaft
7/8 Straight Keyed
Special Features
None
Supplier Part Number
02-341685
Alternate Part Numbers
Alternate Part Number C1JV15, Alternate Part Number MINO-00900H63541
Product Weight
34.00 lbs

Related Documents

Similar Products

Model Number Part Number Displacement Rated Flow Control Mount Shaft Features Maximum Operating Pressure Pressure Rating Price Action
PVQ Series Industrial Piston Pump, 1.29 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, Reduced operating noise|Longer life|Lower operating pressure

PVQ20-B2R-SE1S-21-C21-12 PVQ Series Piston Pump

02-341552

1.29

10

Pressure Compensated (350-3000 PSI range, set 3000 PSI)

2-Bolt SAE B

7/8 Straight Keyed

Reduced operating noise|Longer life|Lower operating pressure

3000

3000

PVQ Series Industrial Piston Pump, 0.64 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 Straight Keyed Shaft, Reduced operating noise|Longer life|Lower operating pressure

PVQ10-A2R-SE1S-20-C21-12 PVQ Series Piston Pump

02-341576

0.64

4.98

Pressure Compensated (350-3000 PSI range, set 3000 PSI)

2-Bolt SAE A

3/4 Straight Keyed

Reduced operating noise|Longer life|Lower operating pressure

3000

3000

PVQ Series Industrial Piston Pump, 2.01 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, Reduced operating noise|Longer life|Lower operating pressure

PVQ32-B2R-SE1S-21-C14-12 PVQ Series Piston Pump

02-341685

2.01

15.66

Pressure Compensated (350-3000 PSI range, set 2000 PSI)

2-Bolt SAE B

7/8 Straight Keyed

Reduced operating noise|Longer life|Lower operating pressure

2000

2000

Product Questions & Answers (2)

Question by: Hugh J on Apr 15, 2025, 9:05 PM
Will this pump work okay with standard hydraulic fluid, or do I need something special?
Answer by: Customer Support on Apr 17, 2025, 8:03 PM
These PVQ series pumps are rated assuming you're running standard anti-wear hydraulic fluid or even good ol' automotive crankcase oil with SC, SD, SE, or SF ratings per SAE J183FEB80. If you're planning on using fire-resistant fluids, get in touch with us so we can make sure it's a good match.
Question by: Gene H on Oct 4, 2025, 11:44 AM
got a PVQ32-B2R-SE1S-21-C14-12 here, is that the same pump as SKU 02-341685 or am i mixin things up
Answer by: Customer Support on Oct 5, 2025, 12:50 PM
Match-up is straightforward on this one. SKU 02-341685 is listed as model PVQ32-B2R-SE1S-21-C14-12, a PVQ Series variable displacement (piston) open circuit pump with 2.01 cu in/rev displacement.
