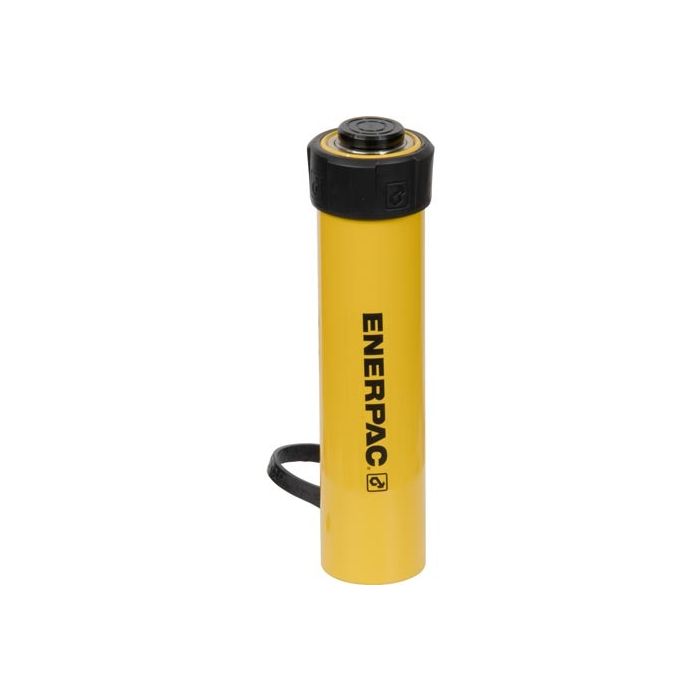

11.2 ton Capacity, 6.13 in Stroke, General Purpose Hydraulic Cylinder

Ask A Question

Description & Features

The ENERPAC 11.2 ton capacity 6.13-inch stroke general-purpose hydraulic cylinder is constructed for durability designed to meet the demands of high-force hydraulic applications. Built to exacting standards this hydraulic cylinder ensures consistent performance in construction manufacturing and industrial maintenance. The RC-106 provides precise control for a wide array of industrial tasks with its 6.13-inch stroke and substantial load capacity. Engineered with high-quality materials this general-purpose hydraulic cylinder guarantees long-lasting usage and reliability. Ideal for demanding tasks it is an essential tool for handling significant loads efficiently.

Supplier Part Number: RC106

Specifications

Cylinder Type
Single-Acting
Finish
Baked Enamel
Material
Steel
Maximum Operating Pressure
10000 psi
Mounting Type
Base
Number of Mounting Holes
2
Plunger Type
Solid
Return Type
Spring
Series
RC Series

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Ross P on Oct 15, 2025, 9:44 PM
i’ve got an older RC-Series cylinder already. are the outside dimensions and threads on this RC-106 the same, or did Enerpac change stuff around?
Answer by: Customer Support on Oct 17, 2025, 8:43 AM
Good news if you are swapping from an older RC-Series. The RC-TRIO generation keeps the same RC-Series model numbers, external dimensions, and threads, so the RC-106 stays compatible with the familiar sizing and threading.
Question by: Freddie T on Oct 25, 2025, 6:39 PM
Does this cylinder work mounted sideways or upside down, or does it have to stay upright?
Answer by: Customer Support on Oct 27, 2025, 11:47 AM
Mount it however the job calls for. The RC106 is built to operate in all positions, so whether you're running it on its side, inverted, or at an angle, it'll perform the same. That kind of flexibility makes it a lot easier to fit into tight or awkward setups without having to engineer around the cylinder itself.
