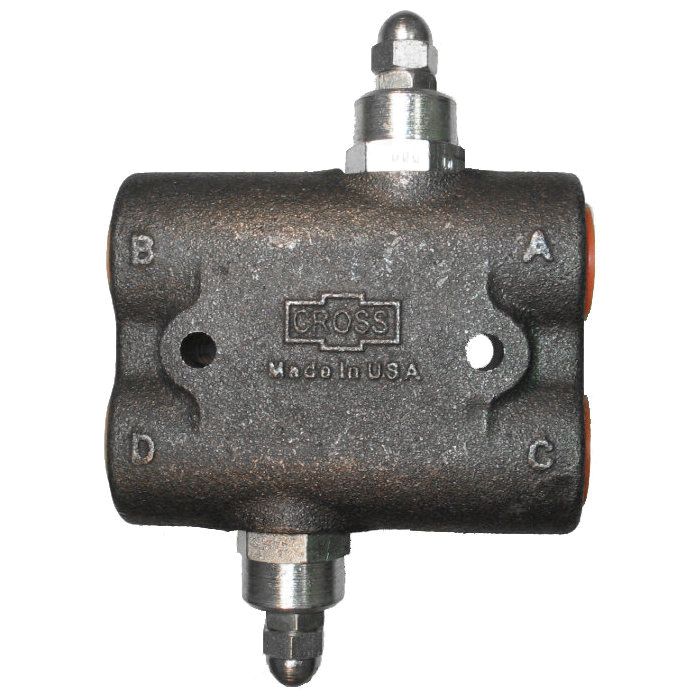

RC Series Cushion Valve (Double Relief Valve), 500-1500 PSI Adjustable Range, Screw Adjustment with Acorn Nut

Engineered by Cross Manufacturing this advanced cushion valve serves to protect equal displacement cylinders or motors from external shocks or loads. The RC Series Cushion Valve (Double Relief Valve) with a 500-1500 PSI adjustable range offers precise pressure control for industrial hydraulic systems. Its screw adjustment accompanied by an acorn nut enables straightforward and secure pressure settings ensuring reliability under variable load conditions.

Fluid passing through one relief valve flows directly to the opposite side or circuit thereby preventing cavitation in the cylinder or motor. This is particularly crucial for applications demanding equal bidirectional cylinder displacement. The hydraulically dampened poppet design ensures quiet operation and a smaller differential between cracking and full-flow pressures.

The high tensile gray iron housing and hardened steel poppet ensure robust durability while Buna-N seals deliver excellent resistance to hydraulic fluids. With a maximum flow rate of 30 GPM and a maximum operating pressure of 3000 PSI this valve is suited for demanding industrial applications.

Its port size is 3/4 NPT and comes with a standard pressure setting of 1000 PSI. Designed for efficiency and reliability this product is essential for sophisticated hydraulic systems.

Supplier Part Number: RC12BB

MPN: C1DJ87
