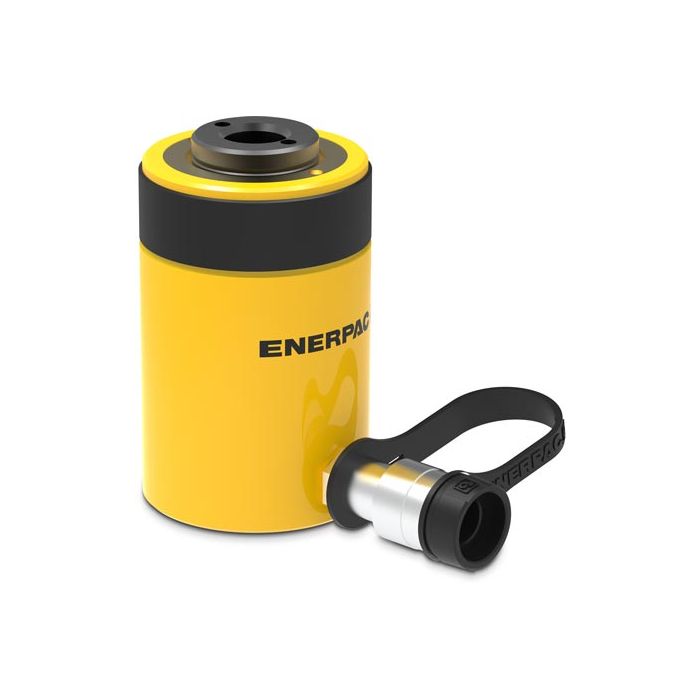

23.6 ton Capacity, 2.00 in Stroke, Single-Acting, Hollow Plunger Hydraulic Cylinder

Ask A Question

Description & Features

Engineered for precision lifting and pushing tasks in confined spaces, this Enerpac single-acting hollow plunger hydraulic cylinder delivers 23.6 tons of capacity with a 2.00-inch stroke. The hollow plunger design allows for pull-through applications, bolt tensioning, and alignment work where a conventional solid-ram cylinder cannot be used. Single-acting function means hydraulic pressure extends the plunger, while retraction relies on a spring or external mechanical load.

The 23.6 ton Capacity, 2.00 in Stroke, Single-Acting, Hollow Plunger Hydraulic Cylinder is a reliable choice for maintenance, fabrication, and structural work requiring controlled, high-force output in a compact form factor. It is compatible with standard Enerpac hydraulic pumps and accessories.

SKU: RCH-202

Supplier Part Number (MPN): RCH202

Alternate Part Numbers: C1DJ93

Specifications

Cylinder Type
Single-Acting
Finish
Baked Enamel
Material
Steel
Maximum Operating Pressure
10000 psi
Mounting Type
Base
Number of Mounting Holes
2
Plunger Type
Hollow
Return Type
Spring
Series
RCH Series

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Floyd C on Jun 7, 2026, 6:08 AM
got a threaded rod i need to run through the middle for a pull job. is that what the hollow plunger is for?
Answer by: Customer Support on Jun 8, 2026, 12:09 PM
With the hollow bore, you can run a threaded steel rod through the center and hook it to the load so the cylinder can apply either pull or push force, including tensioning work.
Question by: Lynn E on Aug 29, 2025, 8:15 PM
hollow bore on this one, can you actually run a threaded rod clean through it to pull something toward you, or is it only good for pushing?
Answer by: Customer Support on Aug 31, 2025, 6:50 AM
Running a threaded rod through the bore and using it to pull is exactly what this cylinder is built for. The hollow plunger design lets you feed a steel rod straight through, attach it to your load, and apply force in either direction depending on how you set things up. Push, pull, or lifting work are all on the table with this configuration.
