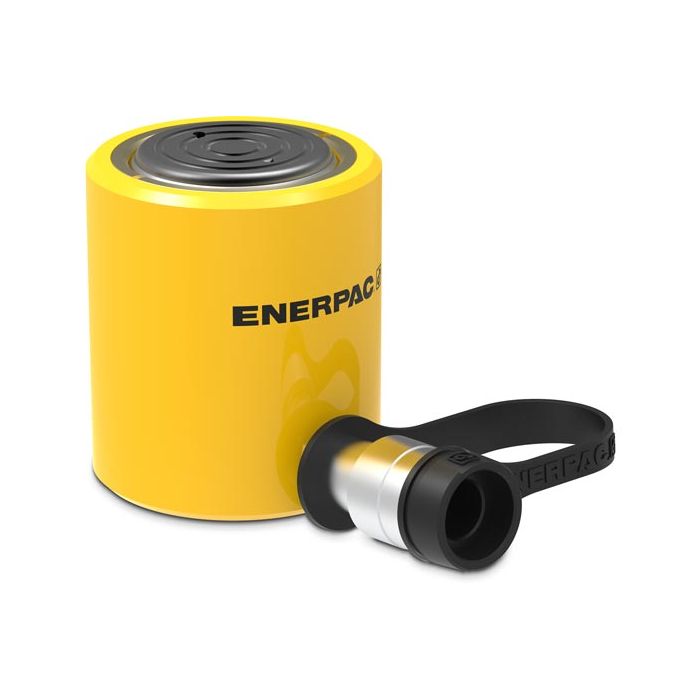

32.4 ton Capacity, 2.44 in Stroke, Low Height Hydraulic Cylinder

Description & Features

The ENERPAC 30 TON S/A CYLINDER is designed for industrial and construction applications requiring compact solutions. This hydraulic cylinder features a robust 32.4 ton capacity with a 2.44 inch stroke ensuring reliable and efficient performance in demanding environments.

With its low height design it provides flexibility in tight spaces making it ideal for heavy lifting and positioning tasks. The cylinder is constructed to withstand harsh working conditions ensuring durability and longevity.

This hydraulic cylinder does not include additional accessories like battery or remote control emphasizing a straightforward high-performance design. The absence of components such as a check valve or switch connector highlights its specific purpose for industrial use without unnecessary complexities.

Supplier Part Number: RCS302

Specifications

Cylinder Type
Single-Acting
Finish
Baked Enamel
Material
Steel
Maximum Operating Pressure
10000 psi
Mounting Type
Base
Number of Mounting Holes
2
Plunger Type
Solid
Return Type
Spring
Series
RCS Series

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Judy M on Nov 21, 2025, 9:11 PM
Got a lift job where clearance is real tight, does this cylinder have enough travel to be worth usin, or is the stroke too short for most practical work?
Answer by: Customer Support on Nov 23, 2025, 6:43 AM
At 2.44 inches of stroke, it's purpose-built for low-clearance situations where you just need enough travel to break a load free or seat a component. That kind of stroke is plenty for production fixtures, press frames, and maintenance lifts where the range of motion is controlled and predictable. If your job calls for longer travel, this ain't the right tool. But for tight-quarters lifting where every inch of height matters, the short stroke is a feature, not a limitation.
Question by: Janice L on Nov 6, 2025, 10:58 AM
tight spot under a machine, how short is this cylinder when it’s collapsed?
Answer by: Customer Support on Nov 7, 2025, 8:33 PM
With a 2.44 inch stroke and a low profile build, it’s meant for jobs where you do not have much room to work. The key spec you can count on is the 2.44 inch (62 mm) travel, so you are only gaining that amount of height from fully retracted to fully extended.
