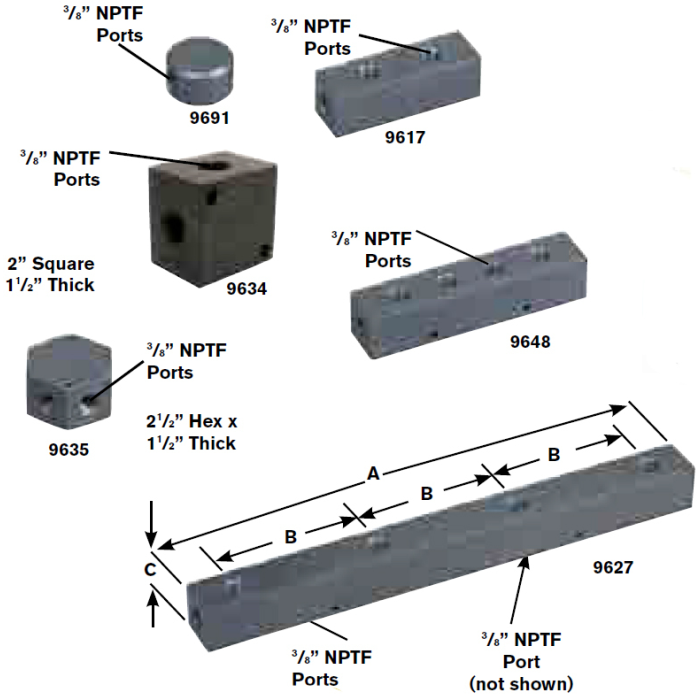

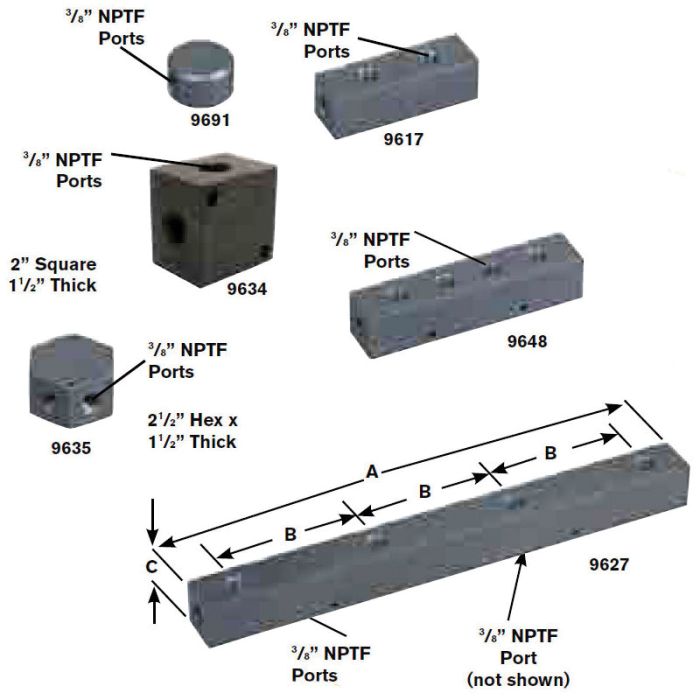

SPX Y MANIFOLD

Description & Features

Designed for use within SPX High Force Hydraulics systems, the SPX Y Manifold is a remote and pump-mounted manifold component engineered to distribute hydraulic flow across multiple circuit branches from a single inlet point. The Y-configuration allows directional splitting of hydraulic lines, making it well suited for multi-actuator setups where a compact, reliable flow distribution solution is required.

Manufactured by SPX Hydraulic Technologies, also marketed under the SPX Flow brand, this manifold is cataloged under model reference C1KL14 and is intended for integration with compatible SPX high-force hydraulic assemblies. Its design supports both remote-mounted and pump-mounted configurations, providing installation flexibility across a range of industrial applications.

SKU: 9691

Supplier Part Number (MPN): 9691

Alternate Part Numbers: C1KL14

Specifications

Brand HYDRAULIC TECH USA LLC(SPX)	Brand SPX Flow	Pack Size 1.00	UOM EA	Alternate Part Numbers Alternate Part Number C1KL14	Supplier Part Number 9691	Product Weight 0.88 lbs

Similar Products

Model Number	Product Description	Price	Action
9635 Remote & Pump Mounted Manifold	SPX MANIFOLD BLOCK (6) 3/8 NPTF PORTS
9642 Remote & Pump Mounted Manifold	SPX NDL VLV MANIFOLD
9644 Remote & Pump Mounted Manifold	SPX H MANIFOLD BLOCK
9691 Remote & Pump Mounted Manifold	SPX Y MANIFOLD

Product Questions & Answers (2)

Question by: Kurt M on Apr 5, 2026, 1:26 PM

Will this Y manifold work if I need to split the hydraulic flow on my log splitter?

Answer by: Customer Support on Apr 7, 2026, 6:50 AM

It's designed for use in SPX High Force Hydraulics systems to distribute hydraulic flow across multiple circuit branches, which means it could work for splitting the flow in your log splitter setup, assuming it's compatible with the rest of your system.

Question by: Harvey H on Jun 1, 2025, 12:43 PM

Got a multi-actuator setup on a high-force SPX system and need to split flow off a single line. This Y manifold do that, or am I looking at the wrong part?

Answer by: Customer Support on Jun 2, 2025, 1:28 PM

That's exactly what this manifold is built for. The Y-configuration splits hydraulic flow from one inlet point out to multiple circuit branches, so running more than one actuator off a single line is pretty much its primary job. It fits within SPX High Force Hydraulics systems and can be mounted either at the pump or remotely, depending on how your hydraulic connections is laid out.
