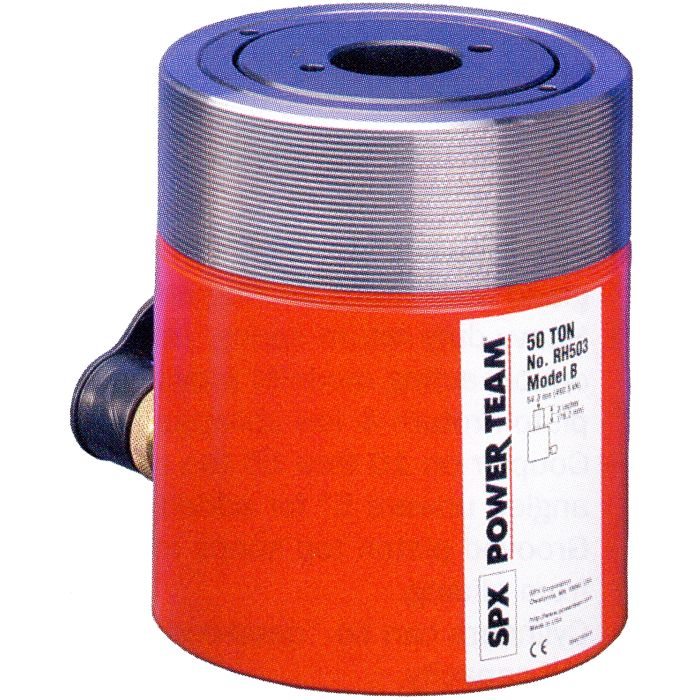

RH Series Center Hole Single-Acting Cylinders, Up To 100 Ton

Description & Features

Group Description

Ideal for pulling and tensioning of cables, anchor bolts, forcing screws, etc. ASME B30.1 10,000 PSI.

Features

Interchangeable piston head inserts provide versatility of application • 12, 20*, 30*, 50, 60 Ton Single-Acting Models Feature Threaded Collar • Withstands full “dead-end” loads • Corrosion resistant standpipe has “Power Tech” treatment • All cylinders except RH120 are furnished with a 9796 3/8'' NPT female half coupler • Aluminum cylinder body and piston are featured on the RHA306 cylinder. * Model RH203 and RHA306 do not feature the collar thread. See the chart below.

Products

Model Number	Capacity (tons)	Extended Height	Hole Dia.	Cylinder Effective Area (sq in)
RH102 RH Series Single-Acting Cylinder	10	7.813	0.766	2.21
RH121 RH Series Single-Acting Cylinder	12	6.438	0.797	2.76
RH123 RH Series Single-Acting Cylinder	12	10.25	0.8125	2.76
RH202 RH Series Single-Acting Cylinder	20	8.125	1.078	4.72
RH203 RH Series Single-Acting Cylinder	20	9.063	1.047	3.92
RH302 RH Series Single-Acting Cylinder	30	8.75	1.297	6.34
RH306 RH Series Single-Acting Cylinder	30	15.75	1.281	6.34
RH603 RH Series Single-Acting Cylinder	60	12.25	2.125	12.31
