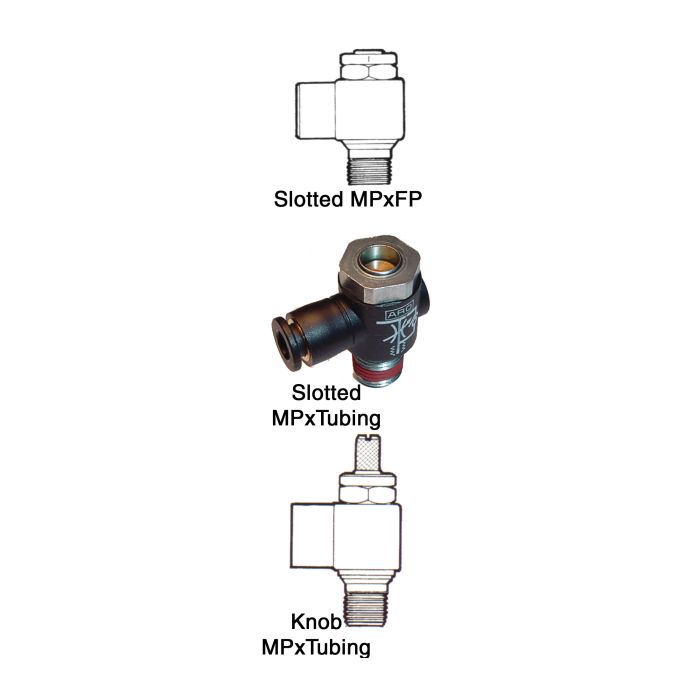

Right Angle Pneumatic Flow Control Valve, 1/8 NPT Male x 1/8 NPT Female Ports, 17 Flow Rating

Description & Features

The Right Angle Pneumatic Flow Control Valve provides superior performance with its 1/8 NPT Male x 1/8 NPT Female ports and 17 SCFM flow rating. Manufactured by Ingersoll-Rand Industrial U.S. Inc. this valve is designed for precision control in pneumatic applications allowing controlled flow in one direction and free flow in the opposite direction.

Featuring a 360 swivel it simplifies tube alignment and minimizes installation complexity. The pre-applied thread sealant eliminates the need for additional Teflon taping ensuring a secure seal.

The valve's robust construction includes a nickel-plated brass body a black anodized aluminum swivel a stainless steel spring and Buna-N seals suitable for rigorous industrial environments. It operates efficiently within a temperature range of 0F to 200F and can withstand a maximum operating pressure of 200 PSI.

Ideal for a variety of industrial fluid control systems this valve offers reliable performance and durability. Its slotted adjustment style allows for easy and precise flow regulation.

MPN: C1AJ29

Supplier Part Number: 119307-125

Specifications

A 1.27	Adjustment Style Slotted	E 1.05	Brand Ingersoll-Rand Industrial US	Brand Ingersoll-Rand	Pack Size 1.00	UOM EA	Flow Rating (SCFM) 17	H 0.59 in	Ports 1/8 NPT Male x 1/8 NPT Female	Ports 1/8 NPT Male x 1/8 NPT Female	Supplier Part Number 119307-125	Product Weight 0.13 lbs	Alternate Part Numbers Alternate Part Number C1AJ29

Similar Products

Model Number	Adjustment Style	Ports	Flow Rating (SCFM)	A	H	E	Price	Action
119309-250 Right Angle Pneumatic Flow Control	Slotted	1/4 NPT Male x 1/4 Tubing	34	1.61	0.75 in	1.3

Product Questions & Answers (3)

Question by: Ricky S on May 27, 2025, 8:06 AM

does this valve work with standard 1/8 NPT fittings already on my air lines, or do i need adapters?

Answer by: Customer Support on May 28, 2025, 10:16 AM

The ports on this valve are 1/8 NPT male on one end and 1/8 NPT female on the other, so if your existing lines are already threaded to that size you can connect it straight in without any adapters. Thread sealant comes pre-applied to the threads as well, so there's no need to wrap anything with Teflon tape before you install it.

Question by: Cheryl P on Oct 8, 2025, 7:09 AM

What size tubing does this fit? I'm using 1/8" OD nylon.

Answer by: Customer Support on Oct 9, 2025, 7:23 PM

This right angle flow control valve has 1/8 NPT male and 1/8 NPT female ports. You'll need fittings appropriate for connecting your 1/8" OD nylon tubing to those NPT ports.

Question by: Scott C on Aug 12, 2025, 8:16 PM

trying to dial back air speed on a small cylinder, is this the kind that meters one way but lets it return free?

Answer by: Customer Support on Aug 14, 2025, 7:45 AM

For pneumatic setups where you want controlled flow in one direction and free flow the other way, that is exactly what this valve is built to do. It uses a slotted adjustment so you can fine-tune the restricted direction.
