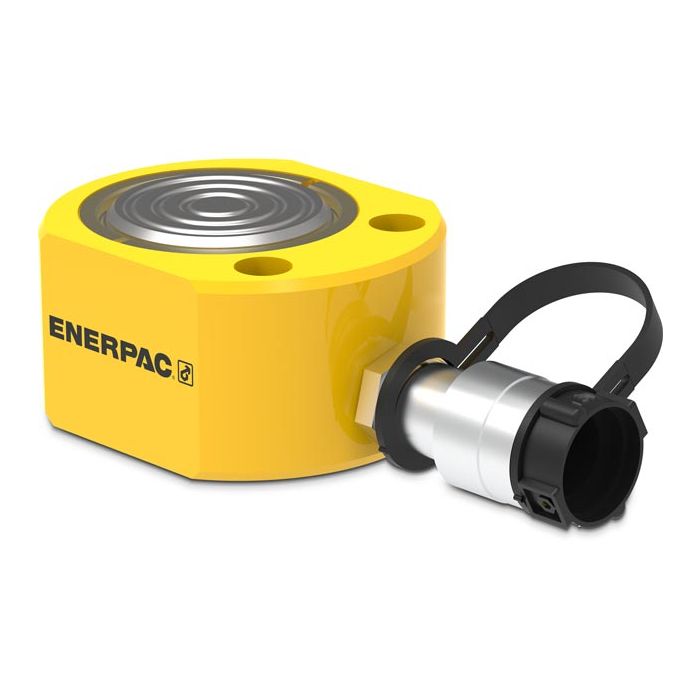

Enerpac | 32.4 ton Capacity, .50 in Stroke, Low Height Hydraulic Cylinder | RSM300

Description & Features

Experience the precision and reliability of the Enerpac 32.4 ton Capacity, 0.50 in Stroke, Low Height Hydraulic Cylinder. Designed for versatility in confined spaces, this low-profile cylinder is ideal for both vertical and horizontal lifting applications. The robust single-acting spring return mechanism ensures quick plunger retraction, enhancing productivity and efficiency.

Constructed with hard chrome-plated high-quality steel plungers, the cylinder offers exceptional durability and corrosion resistance, thanks to its baked enamel finish. The compact design includes two through-mounting holes, allowing seamless integration into various machinery setups. With a maximum operating pressure of 10,000 psi (700 bar), this cylinder is built to withstand demanding industrial environments.

SKU: RSM-300

Supplier Part Number (MPN): RSM300

Alternate Part Numbers: C1DK31, MI-00903433, MINO-00284X11298

Specifications

Brand Enerpac	Brand Enerpac	Pack Size 1.00	UOM EA	Cylinder Bore Diameter 2.88 in (73.2 mm)	Max Operating Pressure 10,000 psi (700 bar)	Product Type HydraulicCylinders	Series RSM	Stroke 0.5 in (13 mm)	Subtype Low Height Cylinder	Weight 10 lbs (4.5 kg)	Supplier Part Number RSM300	Product Weight 9.30 lbs

Product Questions & Answers (2)

Question by: Scott S on Jul 16, 2025, 9:01 AM

Got a tight spot on a press fixture where nothing else has fit so far. mounting holes on this thing, do they let you bolt it down solid or are they just for light positioning?

Answer by: Customer Support on Jul 18, 2025, 6:33 AM

Those through mounting holes are built for real fixturing work, not just keeping the cylinder from sliding around. You can clamp it down to machinery or a fixture plate with them, which makes a real difference when you need repeatable positioning on a press or production setup. The flat sides help too since the whole profile stays low and stable whether you're running it vertical or horizontal.

Question by: Jimmy A on May 19, 2026, 8:45 PM

got a tight spot under a machine base. how low is this cylinder when it’s sitting collapsed?

Answer by: Customer Support on May 21, 2026, 7:23 AM

For tight-clearance work, the key spec is the stroke, and this model has a short 0.50 inch stroke. It is an RSM low profile style cylinder meant for situations where a taller ram will not fit.
