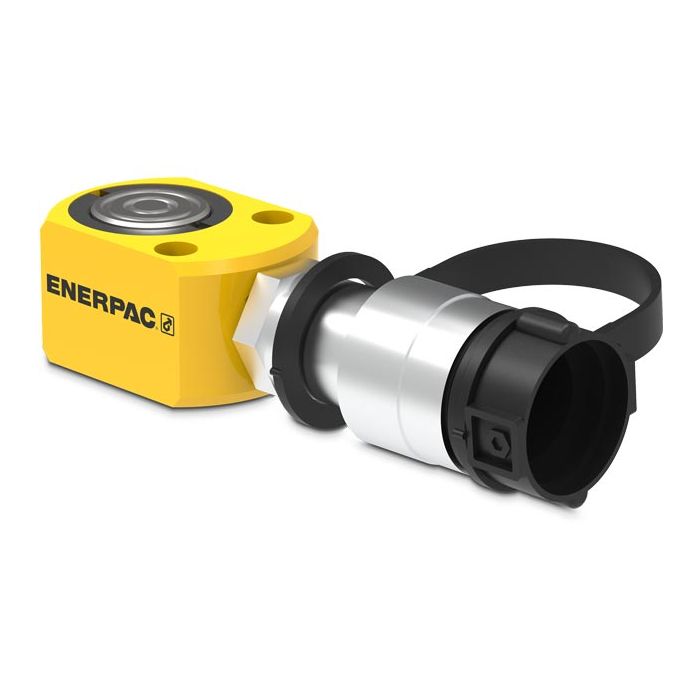

Enerpac | 4.9 ton Capacity, .25 in Stroke, Low Height Hydraulic Cylinder | RSM50

Rated to 10,000 psi (700 bar) and built around a 0.25 in (6 mm) stroke, the Enerpac RSM-50 4.9 ton Capacity, .25 in Stroke, Low Height Hydraulic Cylinder is designed for confined spaces where standard cylinders cannot be positioned. The flat-profile, single-acting design incorporates a spring return mechanism for consistent, reliable retraction without depending on load weight. A bore diameter of 1.13 in (28.7 mm) and a total weight of 2.3 lbs (1 kg) keep the unit compact and easy to handle.

Two through-mounting holes allow the cylinder to be fixed directly to machinery or tooling fixtures, supporting both vertical and horizontal orientations. Hard chrome plated steel plungers with grooved ends eliminate the need for a separate saddle. A baked enamel finish provides corrosion resistance in demanding environments. The included Cr400 coupler and dust cap make the cylinder ready for immediate integration into existing hydraulic circuits.

SKU: RSM-50

Supplier Part Number (MPN): RSM50

Alternate Part Numbers: C1EZ38, MI-00903375, MINO-00284X11295
