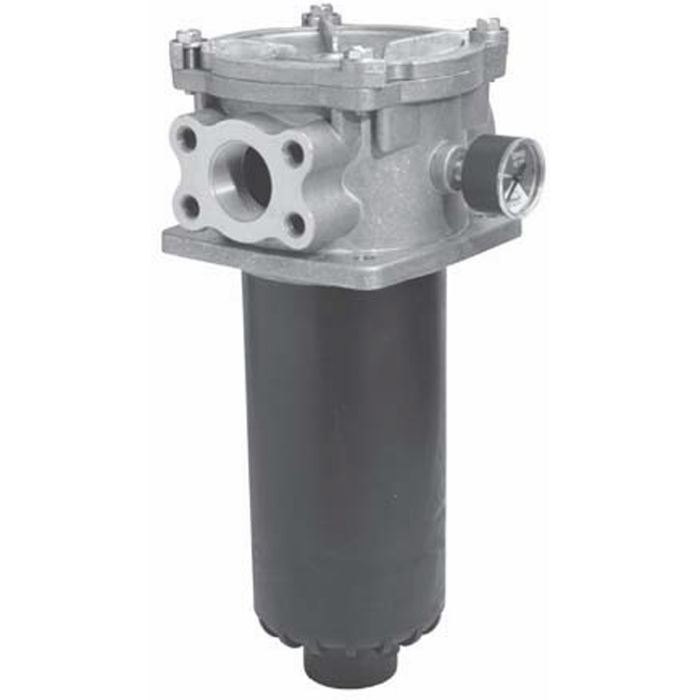

RTF40 Series In-Tank Return Filter, Up To 100 GPM & 100 PSI

Description & Features

Application	For use in return lines of mobile and industrial hydraulic systems where space saving in-tank style design is desired.
Assembly	Complete assembly consists of one Filter Head, one Bowl, one or two Elements (depending on bowl selected), and optional Gauge. Element Connector is required when using double length bowl.
Element	Inorganic glass fiber elements available in 03-05-10-25 micron. Paper elements available in 03-05-10-20-25 micron. Note: By-pass valve in RTF47 models is integrated in the element. RTF48 and RTF49 by-pass is in filter head.
Features	Conforms to HF-4 specifications. In-tank configuration minimizes space requirements and potential system leakage points. Dual inlet ports.
Flow Rating	RTF47 Models (75 GPM), RTF48 & RTF49 Models (100 GPM).
Fluids & Seals	Suitable for use with mineral oils, other fluids on request. Seals available: Buna-N.
Indicators	Visual indicator (pressure gauge) or electrical pressure switch.
Materials	Die cast aluminum head and cover. Glass fiber reinforced polyamide bowl (bowl length 1), steel bowl (bowl length 2).
Maximum Operating Pressure	100 PSI.
Temperature Range	-13° F to 212°F.

Model Number	Rated Flow	Element	Length	Includes	Outlet Port	Features	Price	Action
6100079967 RTF40 Series In-Tank Return Filter	100	10 Micron Paper	S1	Clogging Indicator (Gauge)	1-1/2 NPT	25 PSI By-Pass (in filter head), Buna-N seals

Question by: Phil F on Sep 2, 2025, 1:14 PM

What kind of fluid can I run through this filter? Just regular hydraulic oil, or can it handle somethin' else?

Answer by: Customer Support on Sep 4, 2025, 11:44 AM

Suitable for mineral oils, this filter can handle other fluids, though you'd need to make a specific request to ensure proper seal compatibility.
