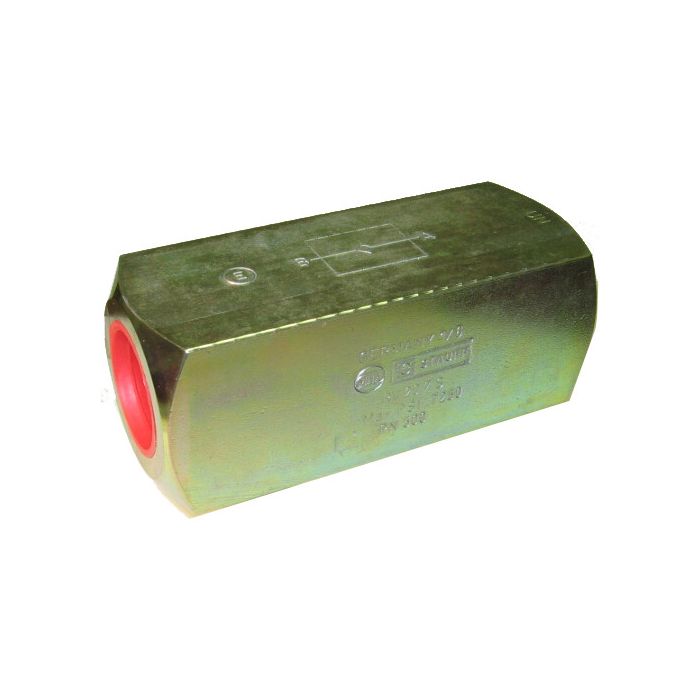

RV Series Inline Check Valve, SAE-8 Ports, 7 PSI Cracking Pressure, Up To 7250.00 PSI

Description & Features

This check valve is engineered for demanding industrial applications providing a reliable solution for controlling fluid flow. Featuring a robust carbon steel body with zinc plating it ensures durability and resistance to corrosion.

With SAE-8 ports and a 7 PSI cracking pressure this valve is suitable for systems requiring precise flow control. Its maximum operating pressure is rated up to 7250 PSI making it ideal for high-pressure environments.

The RV Series Inline Check Valve supports sizes up to 2 inches ensuring compatibility with various setups. The metal-to-metal seat design guarantees a secure seal to prevent backflow and maintain system integrity.

Supplier Part Number: STNA30220

Specifications

Cracking Pressure (psi) 7	D 1.38	Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	L 2.87	Maximum Operating Pressure 7250	Size 1/2	Supplier Part Number STNA30220	Thread 1 SAE-8	Alternate Part Numbers Alternate Part Number C1HX34, Alternate Part Number MI-08751939, Alternate Part Number MINO-02491X66352, Alternate Part Number RV-12-7-S	Product Weight 1.26 lbs

Product Questions & Answers (2)

Question by: Judy W on Mar 7, 2026, 3:28 PM

What size is this check valve? The description mentions up to 2 inches but is vague.

Answer by: Customer Support on Mar 9, 2026, 11:45 AM

This particular inline check valve is a half-inch (1/2) size.

Question by: Troy H on Feb 5, 2026, 12:56 PM

cracking pressure on this one is 7 PSI, that low enough for most standard hydraulic circuits or is that gonna cause any backflow issues at startup?

Answer by: Customer Support on Feb 6, 2026, 1:14 PM

For most standard hydraulic circuits, 7 PSI cracking pressure is on the lower end, which means the valve opens with very little upstream pressure. That works well in systems where you need fast response or low back pressure to initiate flow. The metal-to-metal seat handles the sealing side of things, so once flow stops, backflow gets blocked regardless of how low that cracking threshold is. If your system runs at higher startup pressures and you need more resistance before the valve opens, there is also a 65 PSI cracking pressure option available in the same RV Series.
