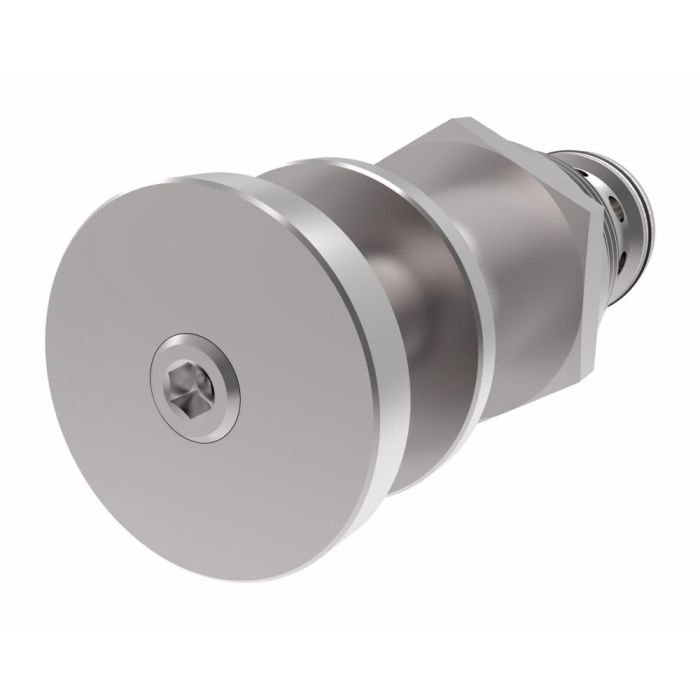

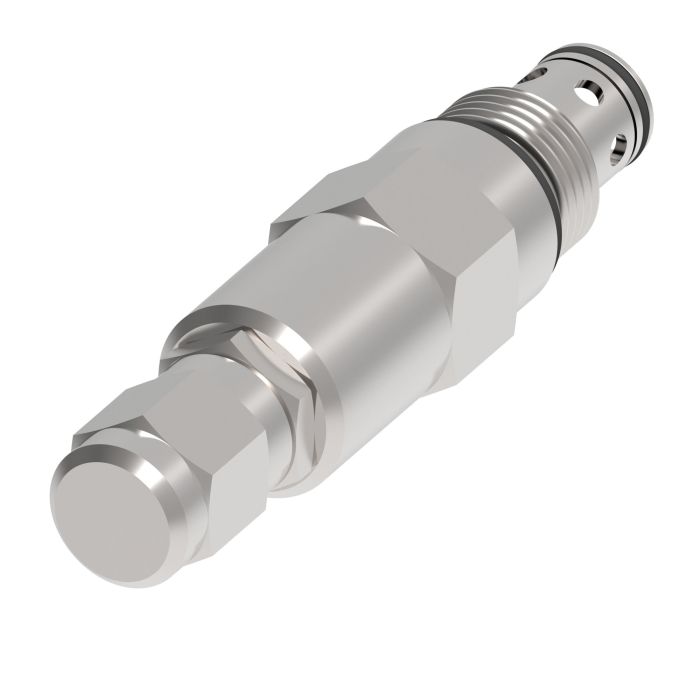

RV1-10 Series Direct-Acting Relief Cartridge Valve, 500-3000 PSI Screw Adjustment

Ask A Question

Description & Features

The RV1-10 Series Direct-Acting Relief Cartridge Valve 500-3000 PSI Screw Adjustment offers reliable and compact performance for heavy-duty applications. This cartridge style valve is characterized by a maximum operating pressure of 3000 PSI and a flow rate of 10 GPM making it ideal for harvesters refuse haulers and various mobile and industrial uses. The poppet style design ensures fast response and continuous duty contributing to its low-cost efficiency.

Engineered with a screw adjustment style and an adjustable range of 500-3000 PSI this valve provides versatility and precision. Featuring a Buna-N seal material and requiring a cavity size C-10-2 this unit demands a separate machined cavity or housing for installation.

Features include a pressure rating of 350 bar (5000 psi) and a flow capacity of 300 L/min (80 USgpm). It also ensures maximum flexibility and utilizes minimal space making it a practical choice for complex hydraulic systems.

Model Number: RV1-10-S-0-30/

Supplier Part Number: 565563

Specifications

Adjustable Range
500-3000
Adjustment
No
Adjustment Style
Screw
Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Electrical Flag
No
Features
350 bar (5000 psi) & 300 L/min (80 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Remote Control
No
Seal Material
Buna-N
Special Features
None
Style
Poppet
Supplier Part Number
565563
Switch Connector
No
Alternate Part Numbers
Alternate Part Number C1BT33, Alternate Part Number MINO-00569H79198, Alternate Part Number RV1-10-S-0-30, Alternate Part Number RV110S030
Product Weight
1.00 lbs

Related Documents

Similar Products

Model Number Part Number Adjustable Range Adjustment Style Seal Material Price Action
RV1-10 Series Direct-Acting Relief Cartridge Valve, 500-3000 PSI Screw Adjustment

RV1-10-S-0-30/ RV1-10 Series Cartridge Valve

565563

500-3000

Screw

Buna-N

Product Questions & Answers (2)

Question by: Harold C on Feb 18, 2026, 8:20 AM
Is this valve okay to use on a refuse truck, for hydraulics on the back end?
Answer by: Customer Support on Feb 19, 2026, 3:26 PM
This RV1-10 series valve is often used in refuse haulers, so it should be a good fit for your truck's hydraulic system. Just make sure the specs line up with what you need.
Question by: Melvin H on Jun 24, 2025, 6:22 AM
Running this on a refuse hauler that sees pretty constant cycle pressure. Does this valve hold up to continuous duty, or is it more of an occasional-use setup?
Answer by: Customer Support on Jun 26, 2025, 6:02 AM
Continuous duty is one of the things this valve is built around. The poppet-style design handles repeated pressure events without needing recovery time between cycles, so steady hydraulic demand on a refuse truck is well within what it's rated for. Max operating pressure sits at 3000 PSI with a 10 GPM flow rate, which lines up with the kind of work those systems typically put out.
