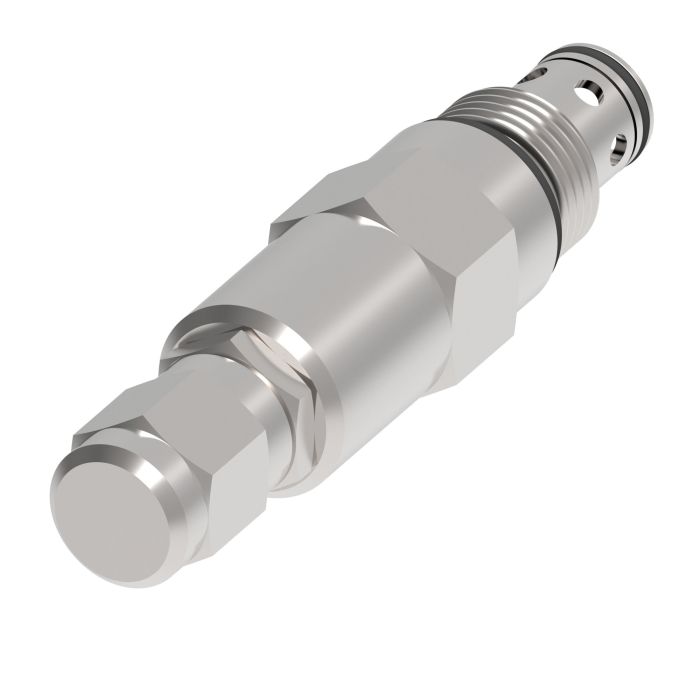

main product photo

RV2-10 Series Pilot-Operated Poppet Type Relief Cartridge Valve, 250-3500 PSI Screw Adjustment

Ask A Question

Description & Features

The RV2-10 Series Pilot-Operated Poppet Type Relief Cartridge Valve 250-3500 PSI Screw Adjustment is an efficient pressure control solution designed for various mobile and industrial applications including harvesters and refuse haulers. With a reliable and cost-effective construction this valve supports a flow rating from 3 to 30 GPM.

Featuring a maximum operating pressure of 5000 PSI caution is advised for pressures exceeding 3000 PSI requiring steel housing. Its screw-in cartridge installation type ensures compactness and flexibility accommodating space constraints in sophisticated systems.

This model operates as a pilot-operated relief valve with a poppet style utilizing Buna-N seal material for dependable performance. The minimum working pressure is 17 PSI and the valve ensures minimal leakage of 0.25 cc/min. Its recommended filtration level is 18/16/13 microns.

The RV2-10 Series is built with robust features like 350 bar (5000 psi) capability and a 300 L/min (80 USgpm) flow capacity making it ideal for demanding environments.

Model Number: RV2-10-S-0-35/

Supplier Part Number: 566212

Specifications

Actuator Type
Pilot Operated
Adjustment
Without Adjustment
Adjustment Style
Screw
Cavity
C-10-2
Check Valve
Without Check Valve
Dimensions
4.38 in L x 1 in W x 1 in H
Diode
Without Diode
Domestic/Import
Import
Electrical Flag
Without Electrical Flag
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
Cartridge
Remote Control
Without Remote Control
Seal Material
Buna-N
Series
RV2-10 Series
Style
Poppet
Switch Connector
Without Switch Connector

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Roger B on Jun 6, 2025, 3:14 PM
What's the pressure range on this relief valve?
Answer by: Customer Support on Jun 8, 2025, 6:49 AM
The adjustable range for this relief valve is 250 to 3500 PSI, adjusted via a screw.
Question by: Dwayne M on Nov 28, 2025, 7:07 AM
running this on a refuse hauler setup, does the pressure adjustment actually go low enough to start at 250 PSI or is that just the bottom of the range on paper?
Answer by: Customer Support on Nov 29, 2025, 9:25 PM
250 PSI is the true bottom of the adjustment range, not just a spec floor. The screw adjustment lets you dial in anywhere from 250 up to 3500 PSI, so for refuse hauler circuits that need lower working pressures, you have real room to tune it without fighting the valve. Keep in mind the minimum working pressure is 17 PSI, so as long as your system stays above that, the valve will function as intended across that full range.
