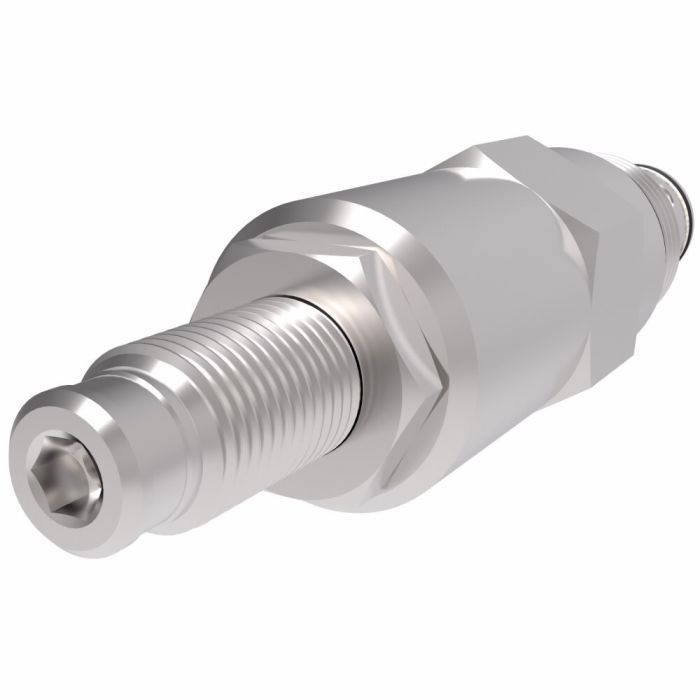

RV3-10 Series Direct-Acting Relief Cartridge Valve, 600-3600 PSI Screw Adjustment

The RV3-10 Series Direct-Acting Relief Cartridge Valve, 600-3600 PSI Screw Adjustment offers reliable performance for demanding applications. Designed for harvesters, refuse haulers, and various mobile and industrial requirements, this valve ensures consistent pressure control.

Engineered by Danfoss - Hydraulics, this valve supports an adjustable range from 600 to 3600 PSI. The direct-acting design allows for fast response times, and the screw adjustment mechanism provides precise control.

With a maximum operating pressure of 3600 PSI and a flow rate of up to 20 GPM, the RV3-10 Series is contamination tolerant, making it suitable for harsh environments. It features a poppet style, ensuring minimum leakage and enhanced durability.

Key features include compactness, economical operation, and maximum flexibility in installations that require minimal space. It requires a machined cavity or housing for installation, adding to the versatility of this cartridge-style valve.

The seal material is Buna-N, providing long-lasting performance and reliability. It fits within a cavity size C-10-2 and meets recommended filtration levels of 18/16/13 microns.

Model Number: RV3-10-S-0-36/

Supplier Part Number: 565568
