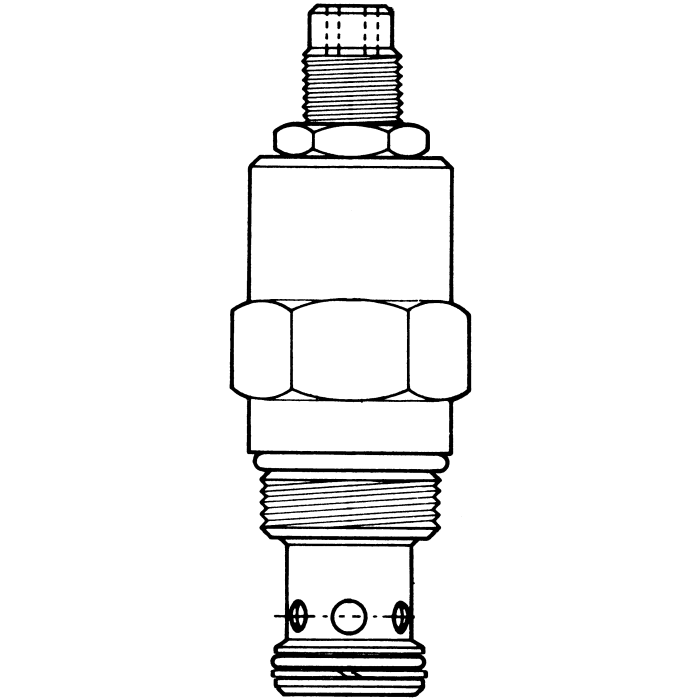

RV3-16 Series Direct-Acting Relief Cartridge Valves, Up To 5000 PSI & 80 GPM

Description & Features

Cartridge	Model RV3-16-*, sold separately.
Features	Cartridge style (Requires a machined cavity or housing for installation). Contamination tolerant. Fast response.
Housing	Cavity size C-16-2, sold separately, see
Maximum Flow Rate	80 GPM.
Maximum Operating Pressure	5000 PSI (CAUTION: Pressures over 3000 PSI require steel housing).

Products

Model Number	Part Number	Adjustable Range	Adjustment Style	Seal Material	Price	Action
RV3-16-S-0-35/ RV3-16 Series Cartridge Valve	565569	1200-3500	Screw	Buna-N

Product Questions & Answers (1)

Question by: Cindy P on May 13, 2025, 7:17 PM

Can this handle pressures above 3000 PSI? Just want to make sure for my setup.

Answer by: Customer Support on May 15, 2025, 6:59 AM

Caution should be taken when using pressures over 3000 PSI, as the product description indicates that a steel housing is required for those higher pressure applications.
