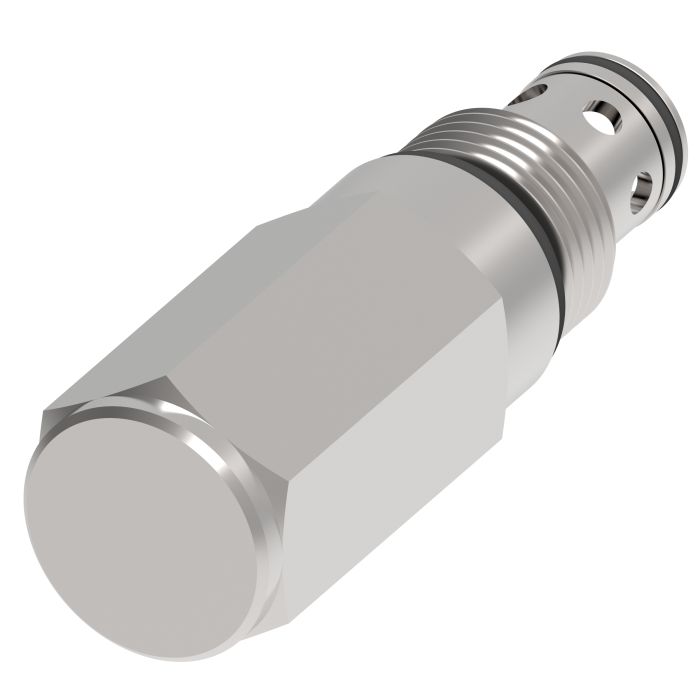

main product photo

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 3000) PSI Factory set Adjustment

Ask A Question

Description & Features

The Vickers by Danfoss / Eaton RV5-10 Series Pressure Control Valves are engineered for demanding applications such as harvesters, refuse haulers, and various mobile and industrial uses. This pilot-operated spool type relief cartridge valve offers a factory-set adjustment, ensuring precision and reliability without the need for manual adjustments.

Featuring an adjustable range of 250-3500 PSI, with the factory setting at 3000 PSI, this valve ensures optimal performance under varying pressures. With a maximum operating pressure of 5000 PSI and a maximum flow rate of 30 GPM, it is built to handle high-pressure environments effectively. Note that pressures exceeding 3000 PSI require a steel housing.

Compact and economical, it provides maximum flexibility while minimizing the space required for installation. The valve is designed for continuous duty, delivering smooth and quiet performance. The RV5-10 Series valve does not include a housing and requires a machined cavity or housing for installation.

Recommended filtration level is 18/16/13 microns for optimal functionality, and it includes Buna-N seals for robust sealing. The reliability and durability of this valve make it a preferred choice for ensuring consistent pressure control in critical systems.

Model Number: RV5-10-F-0-35/30

Supplier Part Number: 02-163944

Specifications

Adjustable Range
250-3500 (Set at 3000)
Adjustment
No
Adjustment Style
Factory set
Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Electrical Flag
No
Features
350 bar (5000 psi) & 300 L/min (80 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Housing
None
Installation Type
Screw-in Cartridge
Leakage
114 cc/min
Minimum Working Pressure
17
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Pilot Operated
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13 microns
Remote Control
No
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
Spool
Supplier Part Number
02-163944
Switch Connector
No
Valve Material
Cartridge only
Alternate Part Numbers
Alternate Part Number C1MW94, Alternate Part Number MINO-00900X50796
Product Weight
0.49 lbs

Related Documents

Similar Products

Model Number Part Number Adjustable Range Adjustment Style Housing Seal Material Price Action
RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 100-2000 (Set at 1200) PSI Screw Adjustment

RV5-10-S-0-20/12 RV5-10 Series Cartridge Valve

02-164222

100-2000 (Set at 1200)

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1450) PSI Screw Adjustment

RV5-10-S-0-35/14.5 RV5-10 Series Cartridge Valve

02-164723

250-3500 (Set at 1450)

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 500-5000 PSI Screw Adjustment

RV5-10-S-0-50/ RV5-10 Series Cartridge Valve

565572

500-5000

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 PSI Screw Adjustment

RV5-10-S-0-35/ RV5-10 Series Cartridge Valve

566246

250-3500

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 3000) PSI Factory set Adjustment

RV5-10-F-0-35/30 RV5-10 Series Cartridge Valve

02-163944

250-3500 (Set at 3000)

Factory set

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 3000) PSI Internal Adjustment

RV5-10-I-0-35/30 RV5-10 Series Cartridge Valve

02-164733

250-3500 (Set at 3000)

Internal

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1400) PSI Screw Adjustment

RV5-10-S-0-35/14 RV5-10 Series Cartridge Valve

02-180537

250-3500 (Set at 1400)

Screw

None

Buna-N

Product Questions & Answers (1)

Question by: Carl H on Mar 15, 2026, 4:16 PM
got a cavity already cut for C-10-2, will this RV5-10 cartridge screw right in or am i missing something
Answer by: Customer Support on Mar 16, 2026, 4:22 PM
It is a screw-in cartridge made for the C-10-2 cavity size. Keep in mind it is cartridge only, so you need the machined cavity or a separate housing for installation since no housing comes with it.
