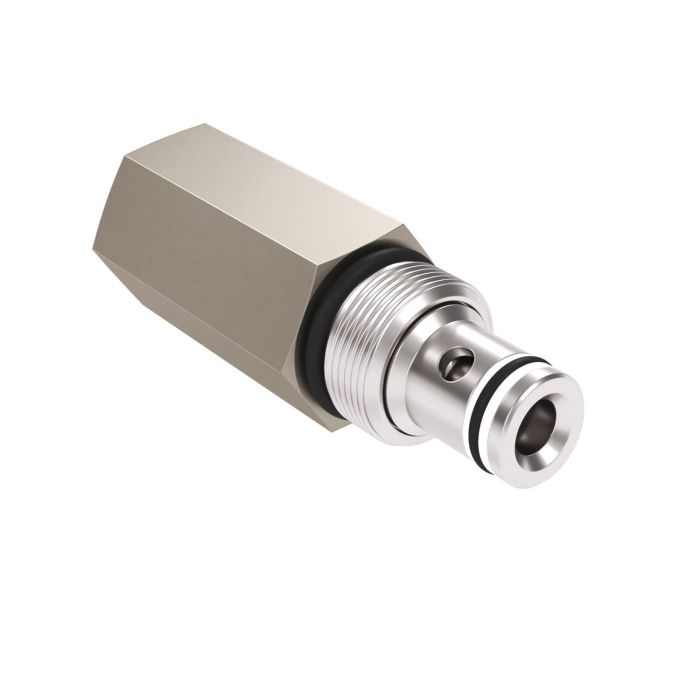

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1500) PSI Screw Adjustment

Ask A Question

Description & Features

The RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1500) PSI Screw Adjustment, is a versatile component designed for mobile and industrial applications such as harvesters and refuse haulers. This reliable valve offers a pressure range from 250 to 3500 PSI and uses a screw adjustment mechanism for precision.

With features like Buna-N seals, it ensures durability and proper sealing. It maintains constant flow to priority circuits, bypassing any excess to an auxiliary circuit or tank. The pilot-operated mechanism enhances its efficiency in pressure control.

Designed for screw-in cartridge installation, this valve supports a maximum operating pressure of 3000 PSI at all ports except port T. It comes with an inline housing type and supports various pressurization configurations.

Recommended filtration level is 18/16/13 microns for optimal performance. It ensures minimal leakage of 114 cc/min, offering a reliable and economical solution. The product is a fixed priority flow control cartridge with a regulated flow setting between 0.1 and 6.0 GPM.

Supplier Part Number: 02-164209

Model Number: RV5-10-S-0-35/15

Specifications

Actuator Type
Pilot Operated
Adjustment
Without Adjustment
Adjustment Style
Screw
Cavity
C-10-2
Check Valve
Without Check Valve
Dimensions
4.38 in L x 1 in W x 1 in H
Domestic/Import
Import
Housing
Without Housing
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
Cartridge
Seal Material
Buna-N
Segment Code
A
Series
RV5-10 Series
Specifications
Relief Cartridge, 250 to 3500 psi Range (Set at 1500), Screw Adjustment, Buna-N Seals
Style
Spool

Product Questions & Answers (4)

Sign In Hover me Please sign in to submit a question
Question by: Billy S on May 3, 2025, 8:34 AM
got a system that needs the relief set around 1500 psi. does this one come that way or am i startin from scratch?
Answer by: Customer Support on May 4, 2025, 4:18 PM
Setpoint-wise, it ships set at 1500 PSI and you can adjust it with the screw adjuster anywhere in the 250 to 3500 PSI range.
Question by: Joyce M on Aug 31, 2025, 3:57 PM
How many ports does this thing have? Just trying to make sure it'll work with my setup.
Answer by: Customer Support on Sep 1, 2025, 5:09 PM
This valve has two ports. It's designed as a screw-in cartridge, so keep that in mind for your installation.
Question by: Hugh F on Feb 15, 2026, 7:35 AM
got a skid steer setup that needs a relief cartridge, how wide’s the adjustment on this one and how do you set it?
Answer by: Customer Support on Feb 16, 2026, 10:39 AM
Adjustment runs from 250 to 3500 PSI, and it uses a screw adjustment. This particular version is set at 1500 PSI out of the box, then you fine tune it by turning the adjustment screw to the pressure you need.
Question by: Cindy S on Aug 6, 2025, 1:19 PM
Running this on a refuse hauler that's been giving us fits with pressure spikes. What's the actual pressure range on this thing, and is 3500 PSI the hard ceiling or is there some headroom built in?
Answer by: Customer Support on Aug 7, 2025, 2:55 PM
The adjustable range runs from 250 to 3500 PSI, and it ships preset at 1500 PSI from the factory. That 3500 PSI figure is the top of the adjustment range for the relief cartridge itself. Worth noting that all ports except port T are rated for up to 3000 PSI operating pressure, so keep that in mind when you're routing your hydraulic connections. The screw adjustment gives you fine control across that whole range, which makes dialing it in for a specific circuit a lot more manageable than dealing with a fixed-setting unit.
