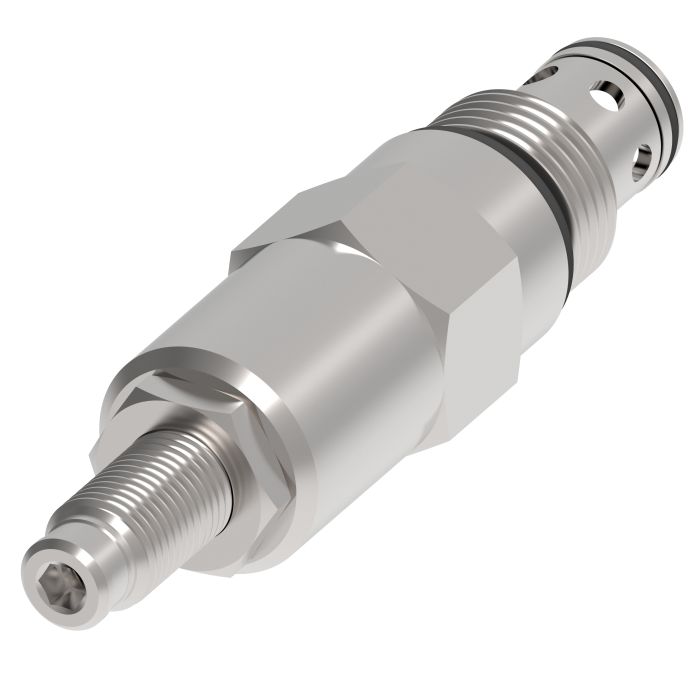

main product photo

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 100-2000 (Set at 1200) PSI Screw Adjustment

Ask A Question

Description & Features

The RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 100-2000 (Set at 1200) PSI Screw Adjustment, is designed for industrial applications such as harvesters and refuse haulers. Engineered by Danfoss - Hydraulics, this relief valve ensures reliable and smooth performance with a maximum operating pressure of 5000 PSI and a flow rate of 30 GPM.

Constructed with the highest quality materials, it features a Buna-N seal and requires a C-10-2 cavity for installation. This cartridge style valve prioritizes maximum flexibility and minimizes space usage, making it an economical option for continuous duty applications.

Additional benefits include low leakage at 114 cc/min, an adjustable pressure range from 100 to 2000 PSI (set at 1200 PSI), and a screw-in adjustment style. The absence of a check valve and remote control enhances its reliability

ECCN: EAR99

Supplier Part Number: 02-164222

Specifications

Adjustable Range
100-2000 (Set at 1200)
Adjustment
No
Adjustment Style
Screw
Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Electrical Flag
No
Features
350 bar (5000 psi) & 300 L/min (80 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Housing
None
Installation Type
Screw-in Cartridge
Leakage
114 cc/min
Minimum Working Pressure
7
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Pilot Operated
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13 microns
Remote Control
No
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
Spool
Supplier Part Number
02-164222
Switch Connector
No
Valve Material
Cartridge only
Alternate Part Numbers
Alternate Part Number C1FM79, Alternate Part Number MINO-00900X50798, Alternate Part Number RV510S020/12.5
Product Weight
0.48 lbs

Related Documents

Similar Products

Model Number Part Number Adjustable Range Adjustment Style Housing Seal Material Price Action
RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 100-2000 (Set at 1200) PSI Screw Adjustment

RV5-10-S-0-20/12 RV5-10 Series Cartridge Valve

02-164222

100-2000 (Set at 1200)

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1450) PSI Screw Adjustment

RV5-10-S-0-35/14.5 RV5-10 Series Cartridge Valve

02-164723

250-3500 (Set at 1450)

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 500-5000 PSI Screw Adjustment

RV5-10-S-0-50/ RV5-10 Series Cartridge Valve

565572

500-5000

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 PSI Screw Adjustment

RV5-10-S-0-35/ RV5-10 Series Cartridge Valve

566246

250-3500

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 3000) PSI Factory set Adjustment

RV5-10-F-0-35/30 RV5-10 Series Cartridge Valve

02-163944

250-3500 (Set at 3000)

Factory set

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 3000) PSI Internal Adjustment

RV5-10-I-0-35/30 RV5-10 Series Cartridge Valve

02-164733

250-3500 (Set at 3000)

Internal

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1400) PSI Screw Adjustment

RV5-10-S-0-35/14 RV5-10 Series Cartridge Valve

02-180537

250-3500 (Set at 1400)

Screw

None

Buna-N

Product Questions & Answers (3)

Question by: Chad R on Nov 24, 2025, 6:27 PM
putting together a system that runs right around 4000 psi. what kind of block or housing do I need for this cartridge?
Answer by: Customer Support on Nov 26, 2025, 2:20 PM
Steel housing is absolutely required anytime you run these over 3000 PSI. You will also need to make sure the manifold or block has a machined C-10-2 cavity size since the valve is sold as the cartridge only.
Question by: Roger P on Jul 19, 2025, 6:16 PM
got a system that needs a relief set around 1200 psi. is this one already set there or do i have to mess with it right out the box
Answer by: Customer Support on Jul 21, 2025, 6:18 AM
From the factory it is set at 1200 PSI within its adjustable range of 100 to 2000 PSI, and the adjustment is a screw style.
Question by: Jimmy M on Jul 5, 2025, 10:10 AM
Will this cartridge work in a standard C-10-2 cavity?
Answer by: Customer Support on Jul 7, 2025, 8:29 AM
Yes, this RV5-10 series valve is designed to fit a C-10-2 cavity for installation.
