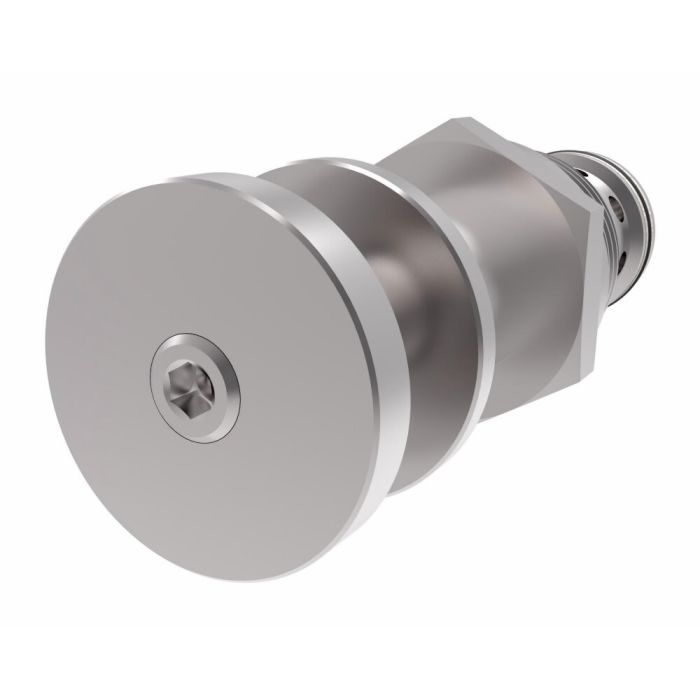

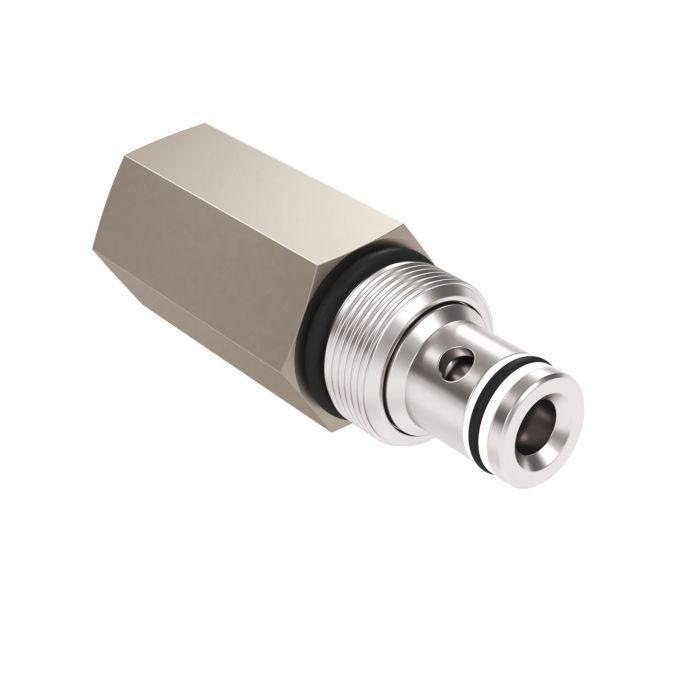

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1450) PSI Screw Adjustment

Description & Features

The RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1450) PSI Screw Adjustment offers outstanding reliability and compact design, ideal for mobile and industrial applications such as harvesters and refuse haulers. Engineered by Danfoss (Power Solutions II LLC), this valve features a screw adjustment style for precise control.

This relief valve supports a maximum operating pressure of 5000 PSI, although pressures above 3000 PSI necessitate a steel housing.

The cartridge-only design ensures smooth and quiet performance, running on continuous duty cycles. The valve operates effectively with a maximum flow rate of 30 GPM and requires recommended filtration levels of 18/16/13 microns for optimal functioning.

Compatibility is ensured with a C-10-2 cavity size and has a leakage rate of 114 cc/min, underscoring its efficiency. Equipped with Buna-N seal material, the RV5-10 Series supports a minimum working pressure of 17 PSI.

Model Number: RV5-10-S-0-35/14.5

Supplier Part Number: 02-164723

Specifications

Adjustable Range 250-3500 (Set at 1450)	Adjustment No	Adjustment Style Screw	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Electrical Flag No	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Housing None	Installation Type Screw-in Cartridge	Leakage 114 cc/min	Minimum Working Pressure 17	Number of Housing Ports 2	Number of Valve Ports 2	Operation Pilot Operated	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Remote Control No	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Spool	Supplier Part Number 02-164723	Switch Connector No	Valve Material Cartridge only	Alternate Part Numbers Alternate Part Number C1AD24, Alternate Part Number DSRV510S035/14.5, Alternate Part Number MINO-00900X50799, Alternate Part Number RV5-10-S-0-35/14.5, Alternate Part Number RV510S035/14.5	Product Weight 0.48 lbs

Similar Products

Model Number	Part Number	Adjustable Range	Adjustment Style	Housing	Seal Material
RV5-10-S-0-20/12 RV5-10 Series Cartridge Valve	02-164222	100-2000 (Set at 1200)	Screw	None	Buna-N
RV5-10-S-0-50/ RV5-10 Series Cartridge Valve	565572	500-5000	Screw	None	Buna-N
RV5-10-S-0-35/ RV5-10 Series Cartridge Valve	566246	250-3500	Screw	None	Buna-N
RV5-10-F-0-35/30 RV5-10 Series Cartridge Valve	02-163944	250-3500 (Set at 3000)	Factory set	None	Buna-N
RV5-10-I-0-35/30 RV5-10 Series Cartridge Valve	02-164733	250-3500 (Set at 3000)	Internal	None	Buna-N
RV5-10-S-0-35/14 RV5-10 Series Cartridge Valve	02-180537	250-3500 (Set at 1400)	Screw	None	Buna-N

Product Questions & Answers (3)

Question by: Troy J on Jun 25, 2025, 11:56 AM

got a cavity block already, what cavity does this RV5-10 cartridge need to screw into?

Answer by: Customer Support on Jun 26, 2025, 5:12 PM

For installation, it uses cavity size C-10-2 and it is a screw-in cartridge style valve. The cartridge and the housing or cavity block are sold separately, and it is a 2 port valve.

Question by: Tommy Y on Jan 6, 2026, 7:24 PM

got a C-10-2 cavity block already. will this RV5-10 cartridge screw right in, or am i missing some special housing?

Answer by: Customer Support on Jan 8, 2026, 6:09 AM

It’s a screw-in cartridge made for the C-10-2 cavity size. Keep in mind it is cartridge-only, so you still need a machined cavity or a separate housing to install it, and the housing itself is sold separately.

Question by: Billy M on Feb 1, 2026, 9:47 AM

What size cavity does this valve need? Just making sure I get the right housing.

Answer by: Customer Support on Feb 3, 2026, 7:00 AM

For this RV5-10 series valve, you'll need a C-10-2 size cavity.
