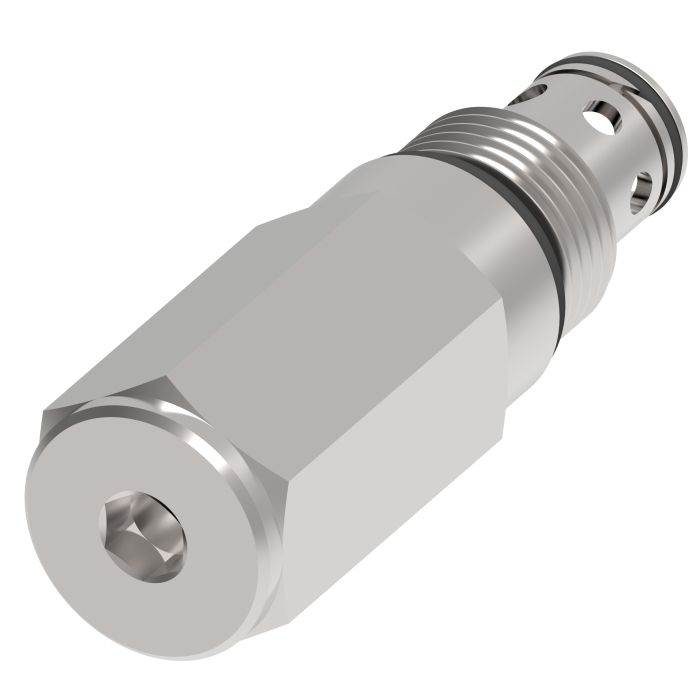

main product photo

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 3000) PSI Internal Adjustment

Ask A Question

Description & Features

The RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve is engineered to provide reliable pressure control in mobile and industrial applications such as harvesters and refuse haulers. This compact and economical valve offers an adjustable range of 250 to 3500 PSI, with internal adjustments pre-set at 3000 PSI.

The valve features a maximum operating pressure of 5000 PSI and a maximum flow rate of 30 GPM, ensuring robust performance under demanding conditions. Constructed with Buna-N seals and operating as a pilot-operated relief valve, it fits seamlessly into applications requiring a cavity size C-10-2 housing (sold separately).

Designed with a smooth and quiet operation for continuous duty, the spool type relief valve ensures maximum flexibility and minimal space requirements. With a recommended filtration level of 18/16/13 microns, it limits leakage to 114 cc/min, promoting optimal efficiency.

Brand: Danfoss - Hydraulics

Model Number: RV5-10-I-0-35/30

Supplier Part Number: 02-164733

Specifications

Adjustable Range
250-3500 (Set at 3000)
Adjustment
No
Adjustment Style
Internal
Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Electrical Flag
No
Features
350 bar (5000 psi) & 300 L/min (80 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Housing
None
Installation Type
Screw-in Cartridge
Leakage
114 cc/min
Minimum Working Pressure
17
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Pilot Operated
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13 microns
Remote Control
No
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
Spool
Supplier Part Number
02-164733
Switch Connector
No
Valve Material
Cartridge only
Alternate Part Numbers
Alternate Part Number C1MW96, Alternate Part Number MINO-00900X50800
Product Weight
0.45 lbs

Related Documents

Similar Products

Model Number Part Number Adjustable Range Adjustment Style Housing Seal Material Price Action
RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 100-2000 (Set at 1200) PSI Screw Adjustment

RV5-10-S-0-20/12 RV5-10 Series Cartridge Valve

02-164222

100-2000 (Set at 1200)

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1450) PSI Screw Adjustment

RV5-10-S-0-35/14.5 RV5-10 Series Cartridge Valve

02-164723

250-3500 (Set at 1450)

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 500-5000 PSI Screw Adjustment

RV5-10-S-0-50/ RV5-10 Series Cartridge Valve

565572

500-5000

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 PSI Screw Adjustment

RV5-10-S-0-35/ RV5-10 Series Cartridge Valve

566246

250-3500

Screw

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 3000) PSI Factory set Adjustment

RV5-10-F-0-35/30 RV5-10 Series Cartridge Valve

02-163944

250-3500 (Set at 3000)

Factory set

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 3000) PSI Internal Adjustment

RV5-10-I-0-35/30 RV5-10 Series Cartridge Valve

02-164733

250-3500 (Set at 3000)

Internal

None

Buna-N

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 1400) PSI Screw Adjustment

RV5-10-S-0-35/14 RV5-10 Series Cartridge Valve

02-180537

250-3500 (Set at 1400)

Screw

None

Buna-N

Product Questions & Answers (3)

Question by: Troy P on Jan 21, 2026, 9:59 AM
Will this relief valve work okay in a hydraulic system on a harvester?
Answer by: Customer Support on Jan 23, 2026, 6:10 AM
Designed for mobile and industrial applications like harvesters, this pilot-operated relief valve should provide reliable pressure control.
Question by: Danny T on Oct 15, 2025, 3:38 PM
runs pretty much all day long on our refuse trucks, will this valve hold up to that kind of continuous use without needing constant attention?
Answer by: Customer Support on Oct 17, 2025, 12:18 PM
Continuous duty is exactly what this valve was built around. The RV5-10 operates as a pilot-operated spool type, which runs smoother and quieter than direct-acting designs under sustained load. It handles up to 30 GPM and carries a 5000 PSI maximum operating pressure rating, so the headroom is there for heavy daily cycles. Buna-N seals keep it tight over time, and the recommended filtration spec of 18/16/13 microns is worth following closely since clean fluid goes a long way toward extended service life on anything running full shifts.
Question by: Janet M on Jan 14, 2026, 7:54 AM
got a C-10-2 cavity block already, will this RV5-10 cartridge screw right in or am i missing something
Answer by: Customer Support on Jan 15, 2026, 5:15 PM
It is a screw-in cartridge made for a C-10-2 cavity, and it uses a 2 port cartridge layout. It is sold as the cartridge only, so you still need the correct C-10-2 housing or machined cavity to install it.
