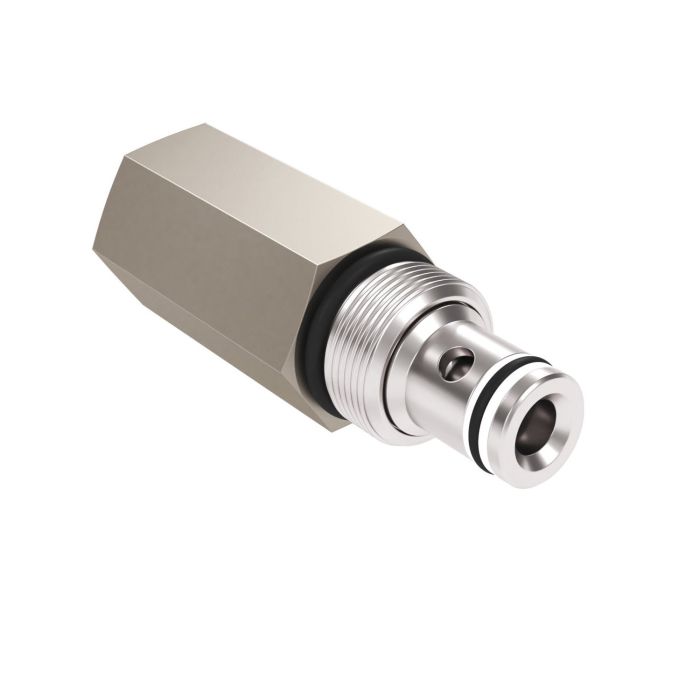

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 500-5000 PSI Screw Adjustment

Description & Features

The RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve offers a broad adjustable range of 500-5000 PSI with screw adjustment. Designed by Danfoss Hydraulics, this valve meets the demands of mobile and industrial applications, including harvesters and refuse haulers. With a maximum operating pressure of 5000 PSI, it ensures reliable performance under high pressure conditions.

This model, optimized for effective pressure control, maintains a maximum flow rate of 30 GPM. Its compact, economical design integrates smoothly into systems requiring a screw-in cartridge valve. Featuring Buna-N seals and a recommended filtration level of 18/16/13 microns, this product ensures durability and efficacy in demanding environments.

Efficiency is further enhanced through its pilot-operated functionality, allowing for smooth and quiet operation. The valve leakage is maintained at a minimal 114 cc/min, ensuring precise control. It requires a machined cavity or housing, designated as cavity size C-10-2, for installation.

For additional hydraulic valve options, view our Hydraulic Valves & Accessories category or browse our Relief Valves selection.

Model Number: RV5-10-S-0-50

Supplier Part Number: 565572

Specifications

Adjustable Range 500-5000	Adjustment No	Adjustment Style Screw	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Electrical Flag No	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Housing None	Installation Type Screw-in Cartridge	Leakage 114 cc/min	Minimum Working Pressure 35	Number of Housing Ports 2	Number of Valve Ports 2	Operation Pilot Operated	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Remote Control No	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Spool	Supplier Part Number 565572	Switch Connector No	Valve Material Cartridge only	Alternate Part Numbers Alternate Part Number C1BT35, Alternate Part Number DSRV510S050/, Alternate Part Number MINO-00569H30182, Alternate Part Number RV510S050/	Product Weight 0.53 lbs

FAQs

What Type of Valve is the RV5-10?

It is a pilot-operated, spool-type hydraulic relief valve that controls system pressure and prevents overload.

What Is The Maximum Operating Pressure?

This valve operates at pressures up to 5000 PSI (345 bar) with smooth, stable performance.

Where Is The RV5-10 Typically Used?

Common in mobile hydraulic, construction, and agricultural systems requiring precise pressure control.

Can The Pressure Setting Be Adjusted?

Yes, the screw adjustment allows accurate pressure calibration within the 500–5000 PSI range.

Applications

The Danfoss RV5-10 Series relief valve is designed for use in hydraulic systems requiring dependable pressure regulation and component protection.

Common applications include:

Mobile machinery and equipment such as refuse haulers, harvesters, and hydraulic-driven work vehicles.
Construction equipment including excavators, loaders, and material handling machinery.
Agricultural systems including tractors, sprayers, and hydraulic-powered implements.

Explore industry-specific solutions for Mobile Machinery & Equipment, Construction, and Agriculture.

About the Manufacturer

Danfoss Power Solutions is a trusted leader in hydraulic and electronic components for mobile and industrial applications. Their RV5-10 Series valves are engineered to deliver precise, consistent performance under demanding conditions.

Hydraulic Supply Company is an authorized Danfoss distributor, offering technical expertise, repair services, and reliable product support. For assistance selecting the correct valve for your hydraulic system, reach out through our Contact Us page.

Similar Products

Model Number	Part Number	Adjustable Range	Adjustment Style	Housing	Seal Material
RV5-10-S-0-20/12 RV5-10 Series Cartridge Valve	02-164222	100-2000 (Set at 1200)	Screw	None	Buna-N
RV5-10-S-0-35/14.5 RV5-10 Series Cartridge Valve	02-164723	250-3500 (Set at 1450)	Screw	None	Buna-N
RV5-10-S-0-50/ RV5-10 Series Cartridge Valve	565572	500-5000	Screw	None	Buna-N
RV5-10-S-0-35/ RV5-10 Series Cartridge Valve	566246	250-3500	Screw	None	Buna-N
RV5-10-F-0-35/30 RV5-10 Series Cartridge Valve	02-163944	250-3500 (Set at 3000)	Factory set	None	Buna-N
RV5-10-I-0-35/30 RV5-10 Series Cartridge Valve	02-164733	250-3500 (Set at 3000)	Internal	None	Buna-N
RV5-10-S-0-35/14 RV5-10 Series Cartridge Valve	02-180537	250-3500 (Set at 1400)	Screw	None	Buna-N

Product Questions & Answers (2)

Question by: Larry C on Jan 24, 2026, 11:07 AM

runs continuous duty on a refuse hauler all day long, will this valve hold up to that kind of use without giving me grief?

Answer by: Customer Support on Jan 25, 2026, 6:14 PM

Continuous duty is exactly what this cartridge is built around. The RV5-10 is a pilot-operated spool type, which means it handles sustained pressure loads more smoothly and with less heat buildup than a poppet-style relief. Rated to 5000 PSI and 30 GPM, it's well within the demands of a refuse hauler running full shifts. One thing worth noting: if you're running above 3000 PSI, you'll need a steel housing for the cavity. Aluminum won't cut it at those pressures.

Question by: Denise Y on Dec 21, 2025, 9:51 PM

What kind of applications does this relief valve work for? Like, what kind of equipment?

Answer by: Customer Support on Dec 23, 2025, 12:58 PM

These valves are often found on mobile equipment like harvesters and refuse trucks, plus various industrial setups.
