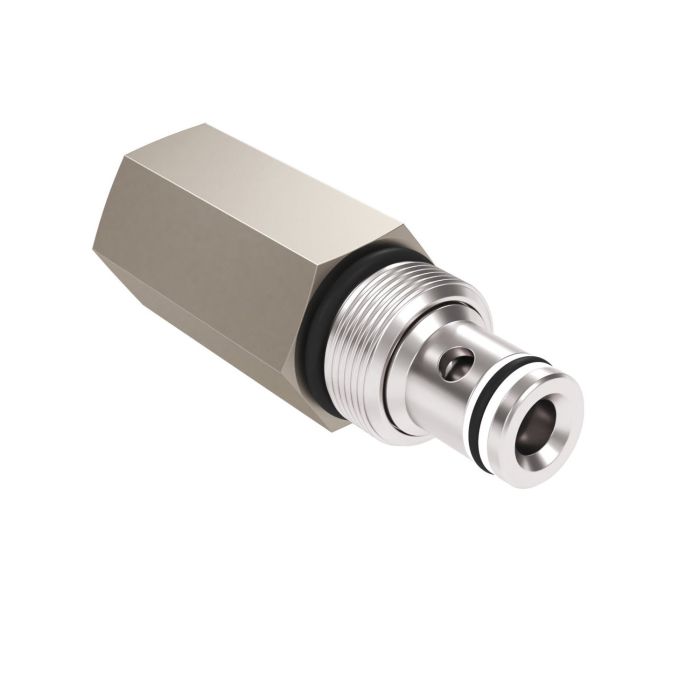

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 PSI Screw Adjustment

Description & Features

Designed for mobile and industrial applications such as harvesters and refuse haulers, this valve offers a versatile solution for pressure control. Featuring a screw-in cartridge installation type, it provides maximum flexibility within a compact form factor. The valve operates within an adjustable range of 250-3500 PSI.

Cartridge style ensures smooth and quiet performance, supporting a continuous duty cycle. The spool type mechanism guarantees reliability and economic efficiency. Compatible with a 30 GPM maximum flow rate, it accommodates high-pressure conditions up to 5000 PSI, with a recommended filtration level of 18/16/13 microns.

Buna-N seal material further enhances the valve's durability. The RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 PSI Screw Adjustment, offers consistent performance with a leakage rate of 114 cc/min. Note that pressures exceeding 3000 PSI require a steel housing for optimal safety.

MPN: RV5-10-S-0-35/

Supplier Part Number: 566246

Specifications

Adjustable Range 250-3500	Adjustment No	Adjustment Style Screw	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Electrical Flag No	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Housing None	Installation Type Screw-in Cartridge	Leakage 114 cc/min	Minimum Working Pressure 17	Number of Housing Ports 2	Number of Valve Ports 2	Operation Pilot Operated	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Remote Control No	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Spool	Supplier Part Number 566246	Switch Connector No	Valve Material Cartridge only	Alternate Part Numbers Alternate Part Number C1KK46, Alternate Part Number MINO-00569H03567, Alternate Part Number RV510S035/	Product Weight 0.52 lbs

Similar Products

Model Number	Part Number	Adjustable Range	Adjustment Style	Housing	Seal Material
RV5-10-S-0-20/12 RV5-10 Series Cartridge Valve	02-164222	100-2000 (Set at 1200)	Screw	None	Buna-N
RV5-10-S-0-35/14.5 RV5-10 Series Cartridge Valve	02-164723	250-3500 (Set at 1450)	Screw	None	Buna-N
RV5-10-S-0-50/ RV5-10 Series Cartridge Valve	565572	500-5000	Screw	None	Buna-N
RV5-10-S-0-35/ RV5-10 Series Cartridge Valve	566246	250-3500	Screw	None	Buna-N
RV5-10-F-0-35/30 RV5-10 Series Cartridge Valve	02-163944	250-3500 (Set at 3000)	Factory set	None	Buna-N
RV5-10-I-0-35/30 RV5-10 Series Cartridge Valve	02-164733	250-3500 (Set at 3000)	Internal	None	Buna-N
RV5-10-S-0-35/14 RV5-10 Series Cartridge Valve	02-180537	250-3500 (Set at 1400)	Screw	None	Buna-N

Product Questions & Answers (6)

Question by: Melvin G on Aug 31, 2025, 8:28 AM

What kind of applications is this valve typically used for?

Answer by: Customer Support on Sep 2, 2025, 6:31 AM

These pilot-operated relief valves are frequently found in harvesters and refuse haulers, as well as various mobile and industrial applications.

Question by: Neil T on Feb 25, 2026, 2:06 PM

runs continuous duty or is it more of a cycle-on-cycle-off type valve?

Answer by: Customer Support on Feb 27, 2026, 6:11 AM

Continuous duty is fine with this one. It's rated for ongoing operation without needing rest cycles, so if you've got an application that keeps pressure on the line for extended periods, that's well within what this valve handles. It's a pilot-operated spool type, which tends to run smoother and quieter than direct-acting designs, and that also contributes to its reliability under sustained load.

Question by: Ray P on Nov 18, 2025, 1:06 PM

got a pressure spike problem on a mobile rig. what range can you actually set this relief at, and how do you adjust it?

Answer by: Customer Support on Nov 19, 2025, 2:32 PM

With the screw adjuster, the set pressure is adjustable from 250 to 3500 PSI on this RV5-10 series pilot operated spool type relief cartridge.

Question by: Marvin R on Jun 18, 2025, 9:25 PM

runs continuous duty okay on a refuse hauler, or is this gonna heat up and cause problems?

Answer by: Customer Support on Jun 20, 2025, 6:19 AM

Continuous duty is fully supported on this valve. It's rated for it right out of the box, so running it steady on a refuse hauler won't push it outside its design limits. The cartridge-style spool mechanism keeps operation smooth and quiet even under prolonged use, which is part of why it gets spec'd into that kind of equipment in the first place.

Question by: Cody T on Jul 29, 2025, 6:44 AM

running one of these on a harvester setup, what pressure range can i actually dial it in to?

Answer by: Customer Support on Jul 30, 2025, 6:11 PM

For adjustment, the screw setting covers 250 to 3500 PSI on this RV5-10 series relief cartridge valve.

Question by: Diane B on Jul 16, 2025, 8:39 PM

Will this cartridge work in any old housing, or do I need something specific?

Answer by: Customer Support on Jul 18, 2025, 6:08 AM

The valve requires a machined cavity or housing for installation; specifically, a C-10-2 size.
