RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valves

Description & Features

Application	This standard valve package is used to maintain constant flow to priority circuits when input flow is greater than required, regardless of changes in upstream or downstream pressure. It will bypass the rest of the flow to an auxiliary circuit or to tank. Relief valve on a priority port limits pressure on a priority port, as well as ensures bypass flow when there is no demand on priority circuit.
Cartridge	Fixed Priority Flow Control Cartridge, PFR1-10-F-0-, sold separately. Relief Cartridge, RV5-10--0-*, sold separately.
Features	Priority flow pressure compensation • All ports except “T” can be pressurized to 3000 psi • Aluminum in-line type housing • Tamper proof and adjustable relief options • Gauge port • All components in the package are true cartridges and can be removed from the housing without disturbing the plumbing • Note: Some assembly required.

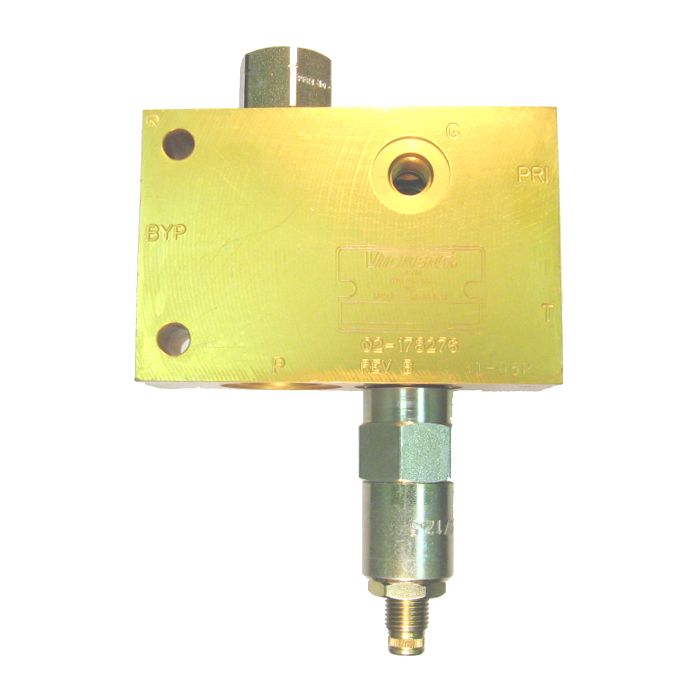

Housing	02-178276, sold separately.
Maximum Inlet Flow	15 GPM.
Maximum Operating Pressure	3000 PSI (All ports except port T).
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Regulated Flow Setting	0.1 - 6.0 GPM (Fixed, non-adjustable)
Temperature Range	-40°F to 248°F (Extreme Limits).

Model Number	Part Number	Specifications	Price	Action
RV5-10-S-0-35/15 RV5-10 Series Cartridge Valve	02-164209	Relief Cartridge, 250-3500 PSI Range (Set at 1500), Screw Adjustment, Buna-N Seals
