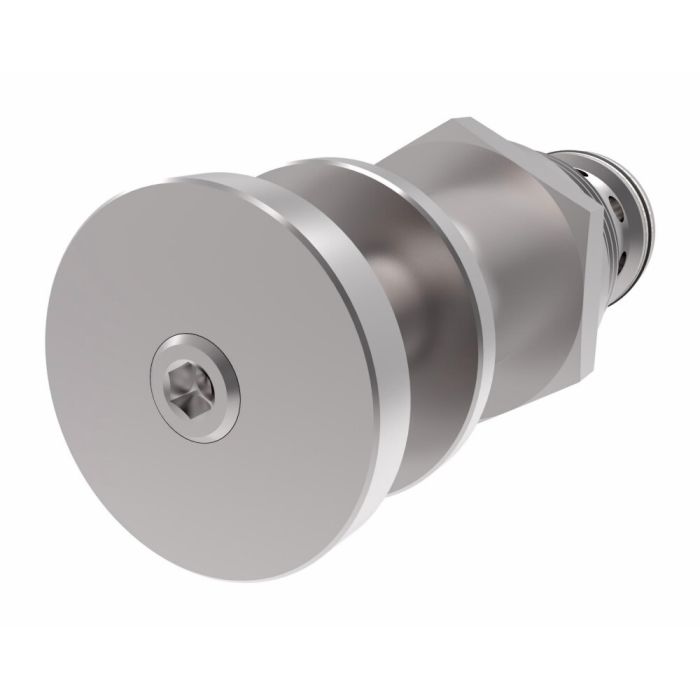

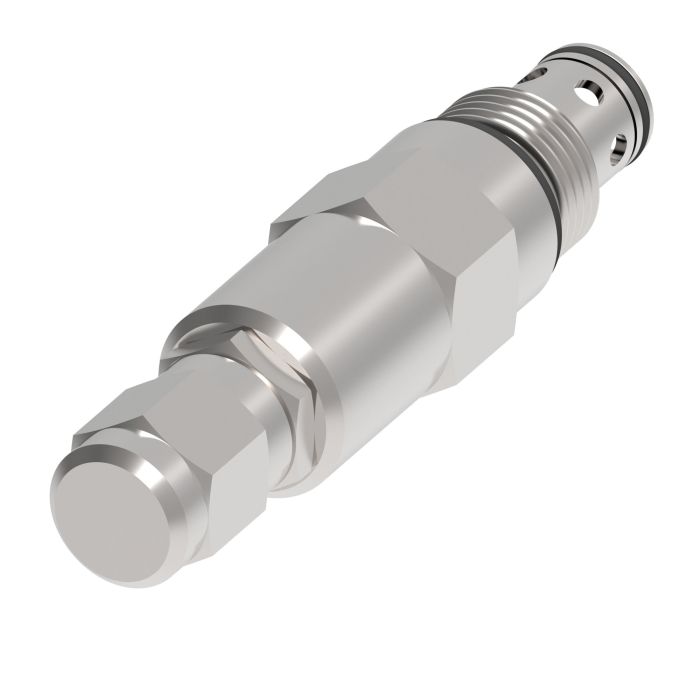

main product photo

RV5-16 SeriesPilot-Operated Relief Cartridge Valve, 500-3000 (Set at 2200) PSI Screw Adjustment

Ask A Question

Description & Features

The RV5-16 SeriesPilot-Operated Relief Cartridge Valve, 500-3000 (Set at 2200) PSI Screw Adjustment by Danfoss Power Solutions offers effective pressure control for diverse applications such as harvesters, refuse haulers, and other mobile and industrial uses. The valve operates within an adjustable pressure range of 500-3000 PSI, set precisely at 2200 PSI for optimum performance. Designed for maximum flexibility and efficiency, this compact valve features a screw adjustment style and requires a machined cavity or housing for installation. Its spool style operation ensures smooth and quiet functioning while maintaining reliability under continuous duty. The valve supports a maximum flow rate of 80 GPM and can withstand operating pressures up to 6000 PSI, making it highly robust and dependable. Furthermore, it integrates a Buna-N seal material, ensuring low leakage rates of 164 cc/min and minimal maintenance. The recommended filtration level for the RV5-16 Series is 18/16/13 microns, enhancing its longevity and performance.

Model Number: RV5-16-S-0-30/22

Specifications

Adjustable Range
500-3000 (Set at 2200)
Adjustment
No
Adjustment Style
Screw
Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Electrical Flag
No
Features
350 bar (5000 psi) & 300 L/min (80 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Housing
None
Installation Type
Screw-in Cartridge
Leakage
164 cc/min
Minimum Working Pressure
34
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Pilot Operated
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13 microns
Remote Control
No
Seal Material
Buna-N
Seal Type
Buna-N
Style
Spool
Supplier Part Number
02-164165
Switch Connector
No
Valve Material
Cartridge only
Alternate Part Numbers
Alternate Part Number C1MW95, Alternate Part Number MINO-00900X50797
Product Weight
0.81 lbs

Related Documents

Similar Products

Model Number Part Number Adjustable Range Adjustment Style Housing Seal Material Price Action
RV5-16 SeriesPilot-Operated Relief Cartridge Valve, 500-3000 (Set at 2200) PSI Screw Adjustment

RV5-16-S-0-30/22 RV5-16 Series Cartridge Valve

02-164165

500-3000 (Set at 2200)

Screw

None

Buna-N

RV5-16 SeriesPilot-Operated Relief Cartridge Valve, 500-3000 PSI Screw Adjustment

RV5-16-S-0-30/ RV5-16 Series Cartridge Valve

565854

500-3000

Screw

None

Buna-N

Product Questions & Answers (3)

Question by: Freddie R on Feb 24, 2026, 5:44 PM
Will this valve hold up if I'm running it pretty much non-stop?
Answer by: Customer Support on Feb 26, 2026, 12:45 PM
Designed for continuous duty, this valve should handle constant operation without issue.
Question by: Gene M on Jan 8, 2026, 4:45 PM
got a machine that needs a screw-in relief, what pressure range does this one cover and where’s it set from the factory
Answer by: Customer Support on Jan 10, 2026, 10:16 AM
From a setup standpoint, the adjustment range is 500 to 3000 PSI and this one is set at 2200 PSI. It uses a screw adjustment so you can dial it within that range as needed.
Question by: Melvin K on Sep 27, 2025, 4:45 PM
runs at 2200 psi out of the box or do i need to set that myself before putting it in service?
Answer by: Customer Support on Sep 28, 2025, 7:11 PM
It comes factory set at 2200 PSI, so you can install it and run it without having to dial it in from scratch. That said, the screw adjustment lets you move the set point anywhere between 500 and 3000 PSI if your system calls for something different. Just keep in mind that anything above 3000 PSI requires a steel housing, so plan accordingly before pushing it past that threshold.
