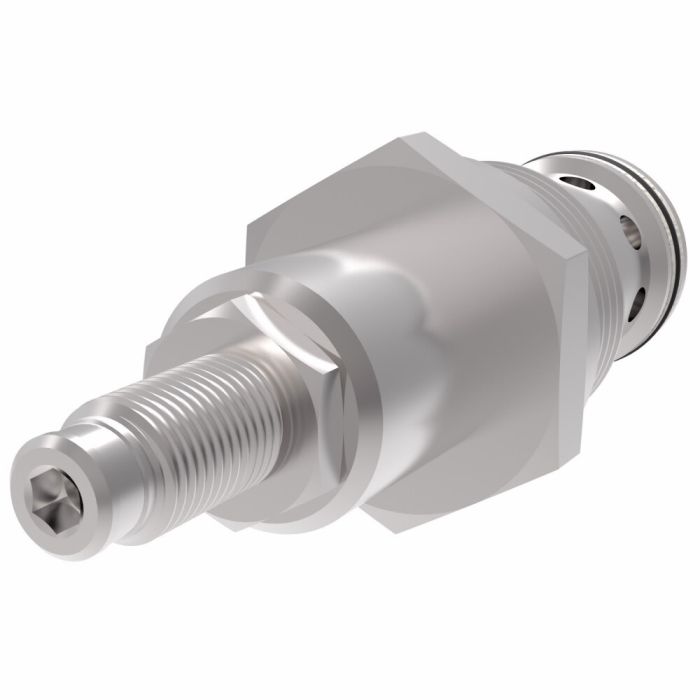

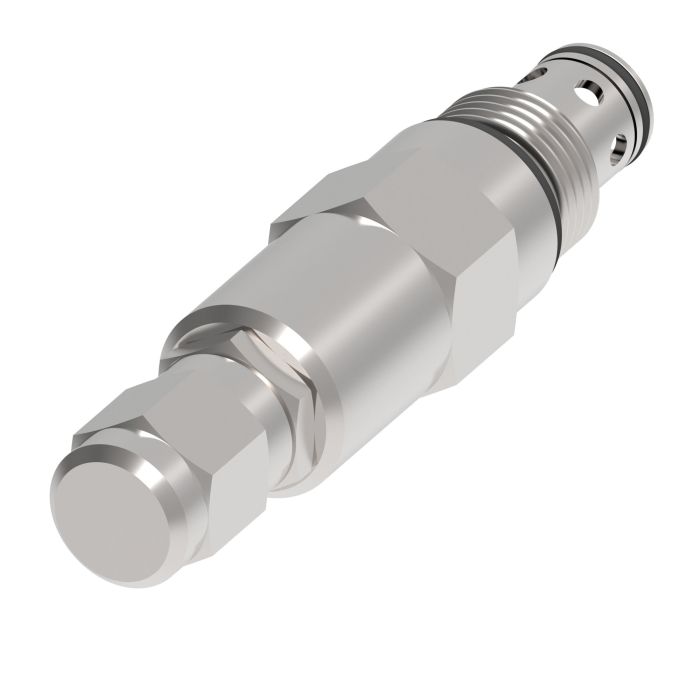

main product photo

RV5-16 SeriesPilot-Operated Relief Cartridge Valve, 500-3000 PSI Screw Adjustment

Ask A Question

Description & Features

The RV5-16 SeriesPilot-Operated Relief Cartridge Valve 500-3000 PSI Screw Adjustment offers optimal performance for a variety of applications including harvesters refuse haulers and both mobile and industrial uses. This pilot-operated spool type relief valve is designed for continuous duty with a smooth and quiet operation ensuring reliable pressure control.

With a maximum flow rate of 80 GPM and the capability to handle operating pressures up to 6000 PSI this cartridge-only valve provides both maximum flexibility and a compact design. To ensure longevity and minimal maintenance the valve boasts leakage of 164 cc/min and a recommended filtration level of 18/16/13 microns.

Featuring a screw-in cartridge installation type this valve requires a C-16-2 cavity housing which is sold separately. The adjustable range from 500 to 3000 PSI allows for precise control in demanding environments. Additionally the valve material and seal type are made from Buna-N to ensure durability and resilience.

The DANFOSS (Power Solutions II LLC) RV5-16 series is a reliable and economical choice for various applications offering maximum flexibility while occupying minimum space.

MPN: RV5-16-S-0-30/

Supplier Part Number: 565854

Specifications

Adjustable Range
500-3000
Adjustment
No
Adjustment Style
Screw
Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Electrical Flag
No
Features
350 bar (5000 psi) & 300 L/min (80 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Housing
None
Installation Type
Screw-in Cartridge
Leakage
164 cc/min
Minimum Working Pressure
20
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Pilot Operated
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13 microns
Remote Control
No
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
Spool
Supplier Part Number
565854
Switch Connector
No
Valve Material
Cartridge only
Alternate Part Numbers
Alternate Part Number C1EN56, Alternate Part Number DSRV516S030, Alternate Part Number MINO-00569H79263, Alternate Part Number RV516S030/
Product Weight
0.79 lbs

Related Documents

Similar Products

Model Number Part Number Adjustable Range Adjustment Style Housing Seal Material Price Action
RV5-16 SeriesPilot-Operated Relief Cartridge Valve, 500-3000 (Set at 2200) PSI Screw Adjustment

RV5-16-S-0-30/22 RV5-16 Series Cartridge Valve

02-164165

500-3000 (Set at 2200)

Screw

None

Buna-N

Product Questions & Answers (1)

Question by: Curt H on Oct 23, 2025, 4:10 PM
Running this on a refuse hauler that cycles pretty hard throughout the day, does this valve hold up to that kind of continuous use, or is it more of a light-duty setup?
Answer by: Customer Support on Oct 24, 2025, 7:16 PM
Continuous duty is exactly what this valve is built for. Smooth and quiet operation is part of the design, so it handles repeated pressure cycles without needing to be babied. Refuse haulers and harvesters are both listed as intended applications, so the demands of a hard daily cycle are well within what this valve is meant to take on.
