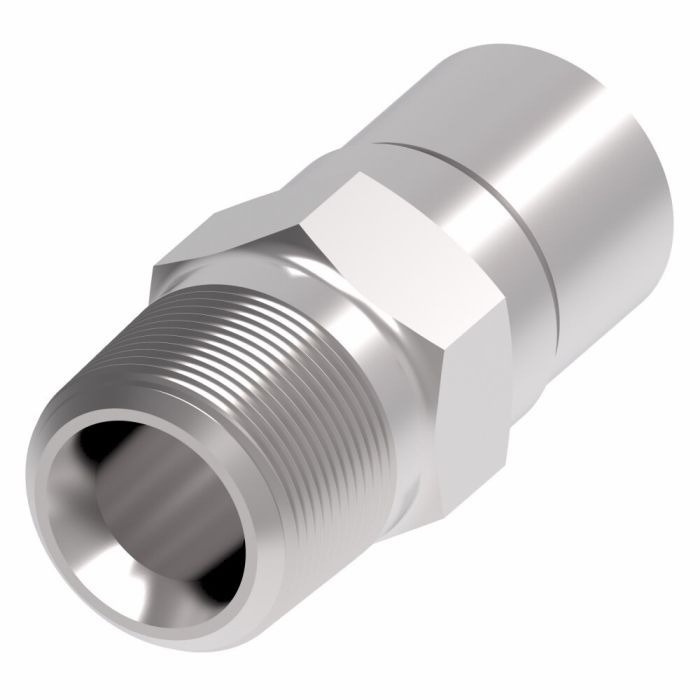

Danfoss / Eaton Everflex Top Assembly S-1112 Top Assembly Stainless Steel 0.625 IN Compatible Hose ID 3/4 - 14 IN MPT Male

Ask A Question

Description & Features

Constructed from stainless steel, this male NPT top assembly is designed for use with the Eaton Everflex swage hose fitting system, compatible with a 0.625 IN hose ID and a 3/4–14 NPT male thread connection. The stainless steel construction provides reliable corrosion resistance suited to demanding hydraulic and fluid conveyance environments.

The Danfoss / Eaton Everflex Top Assembly S-1112 is part of the Everflex Everswage series, which is engineered around a mix-and-match component inventory model, allowing top assemblies and sockets to be paired across a wide range of hose styles and configurations. Dura-Kote plating adds a further layer of corrosion protection to the fitting assembly. Packaged individually and carrying a -12 hose dash size designation, this fitting is well suited to hydraulic line assemblies where a permanent swaged male pipe thread termination is required.

SKU: S-1112

Supplier Part Number (MPN): S-1112

Specifications

Brand
Danfoss
Compatible Hose ID
3/4 in
Compatible Tube OD
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Hose, MNPT
Connection Type 1
Hose
Connection Type 2
Male NPT
Construction Style
Swage
Cut-Off Factor
1.315 in
Dimensions
2.14 in L
End Gender 1
Male
End Size 1
3/4 in
End Size 2
5/8 in
Fitting Type
Hose Fitting
For Use With
Everflex® STW, SCTW, B, M, S and SC Series Hoses
Hex Size
1.06 in
Hose Dash Size
12
Inside Diameter
0.566 in
Material
Stainless Steel
Material Construction
Stainless Steel
nmfc
50
Thread Sealant
Without Thread Sealant
Thread Size
3/4-14
Tube Outside Diameter 1
3/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Hose Dash Size Price Action
FITTING (PERM), NPTF Everswage

S-1103

3/16 in

1/8 in

03

Danfoss / Eaton Fitting (Perm) NPTF

S-1105

5/16 in

1/4 in

05

FITTING (PERM), NPTF Everswage

S-1110

5/8 in

1/2 in

10

Danfoss / Eaton Fitting (Perm) NPTF

S-1116

1 in

1 in

16

Product Questions & Answers (3)

Question by: Jerry B on Sep 23, 2025, 11:34 AM
got a -12 hose here, will this S-1112 top assembly match up with a 3/4-14 male pipe thread?
Answer by: Customer Support on Sep 25, 2025, 6:20 AM
It is set up for a -12 hose dash size with a 0.625 inch compatible hose ID, and the outlet end is a 3/4-14 male NPT (MPT) connection.
Question by: Jerry W on Feb 2, 2026, 12:12 PM
Got a swage hose assembly I'm putting together and need a male pipe thread end on it, will this S-1112 top assembly work with a 0.625 inch hose ID?
Answer by: Customer Support on Feb 4, 2026, 10:06 AM
For a 0.625 inch hose ID with a male pipe thread termination, yes, that's exactly what this fitting is built around. It's a -12 dash size top assembly threaded 3/4-14 NPT male, and it's part of the Everflex Everswage system, so it swages permanently onto the hose rather than reusing or disassembling. Pair it with the appropriate Everflex socket for your hose style and you've got a complete swage fitting assembly.
Question by: Cindy K on Dec 12, 2025, 1:46 PM
Will this fitting hold up if I'm running hydraulic fluid through it pretty much all day, every day?
Answer by: Customer Support on Dec 13, 2025, 9:14 PM
Designed for demanding hydraulic applications, the stainless steel construction offers good corrosion resistance for continuous fluid conveyance.
