Smooth Bore Hose

Description & Features

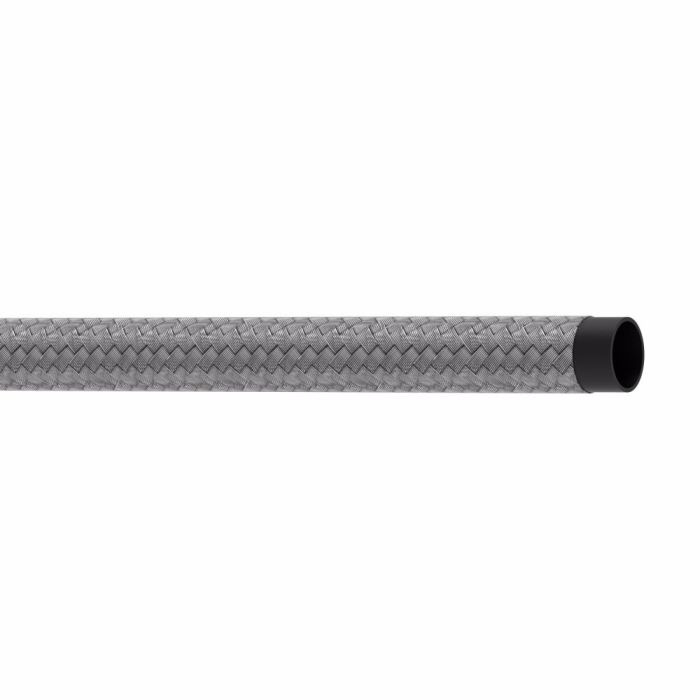

This -18 dash size smooth bore hose is constructed with a Teflon tube and stainless steel cover for premium abrasion resistance. Suitable for use in hydraulic, fuel oil, and pneumatic systems, this hose meets SAE 100R14A standards.

The non-conductive Smooth Bore Hose features a 1 Ply Braid construction and maintains a minimum bend radius of 12 inches. It is designed to operate in temperatures ranging from -65°F and up. Qualified hose fittings include E Series.

SKU: S-18ZTW

Supplier Part Number (MPN): S-18ZTW

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X15381	Application in hydraulic, fuel oil, and pneumatic systems	Certifications SAE 100R14A	Color Teflon	Conductivity 13552	Construction 1 Ply Braid	Cover Material Stainless Steel	Dash Size -18	Brand Danfoss Power Solutions (Aeroquip Inc-Alternate)	Brand Aeroquip	Pack Size 12.00	UOM FT	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 12	Minimum Bend Radius 12	Minimum Working Temperature -65	Net Pack Quantity Units FT	NMFC 70	Product Width 1.24	Qualified Hose Fittings E Series	Reinforcement Material Stainless Steel	Supplier Part Number S-18ZTW	Tube Material Teflon	Product Weight 1.82 lbs

Product Questions & Answers (1)

Question by: Rex T on Oct 19, 2025, 7:54 PM

What kind of systems can I run this hose in?

Answer by: Customer Support on Oct 21, 2025, 6:26 AM

This smooth bore hose is suitable for hydraulic, fuel oil, and pneumatic systems.
