Smooth Bore Hose

Description & Features

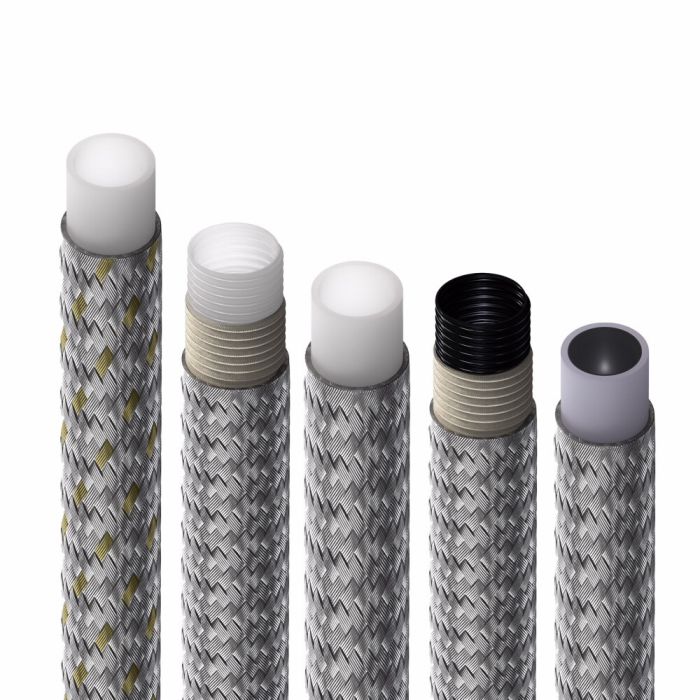

Rated to SAE 100R14A, this Eaton Aeroquip Everflex Smooth Bore Hose is a -3 dash size PTFE hose designed for demanding chemical, steam, and compressor discharge service. The extruded Teflon tube with stainless steel braided cover delivers broad chemical compatibility and withstands vibration and pressure impulses across an exceptionally wide temperature range, with a minimum working temperature of -65°F.

The non-conductive construction resists degradation from aggressive media, making it well suited for virtually all chemical transfer applications. A minimum bend radius of 1 inch and premium abrasion resistance add to its versatility in tight or high-wear installations. Compatible with Everswage fittings, the hose integrates reliably into assemblies requiring dependable fluid containment. Note that this product is not recommended for steam-to-cold water cycling applications.

SKU: S-3

Supplier Part Number (MPN): S-3

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X16373	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14A	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -3	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 1	Minimum Bend Radius 1	Minimum Working Temperature -65	Net Pack Quantity Units FT	NMFC 70	Product Width 0.27	Qualified Hose Fittings Everswage	Reinforcement Material None	Sub Brand Everflex	Supplier Part Number S-3	Tube Material Teflon	Product Weight 0.33 lbs

Product Questions & Answers (3)

Question by: Clint W on Jun 22, 2025, 6:26 AM

Got a compressor discharge line that runs hot and sees some pretty aggressive chemicals, would this hose hold up to both at the same time?

Answer by: Customer Support on Jun 24, 2025, 6:53 AM

Compressor discharge and chemical exposure together is exactly where this hose earns its keep. The extruded Teflon tube gives you broad chemical compatibility across virtually all aggressive media, and the stainless steel braid adds durability where heat and pressure impulses are in the mix. It's also rated down to -65°F on the cold end, so wide temperature swings aren't a concern. Just keep in mind it's not suited for steam-to-cold water cycling specifically, but straight compressor discharge and chemical service is right in its wheelhouse.

Question by: Billy R on Jul 1, 2025, 12:06 PM

trying to snake a hose through a tight spot, how sharp can this one bend without kinking up?

Answer by: Customer Support on Jul 3, 2025, 11:21 AM

For tight routing, it has a 1 inch minimum bend radius, which helps a lot in compact installs while still holding up to vibration and pressure impulses.

Question by: Dwight J on Jun 16, 2025, 10:31 AM

Will this here hose stand up to brake cleaner and other nasty chemicals?

Answer by: Customer Support on Jun 17, 2025, 1:25 PM

This Aeroquip Everflex hose is made with a Teflon tube and stainless steel braid, giving it broad compatibility with chemicals, steam, and even compressor discharge.
