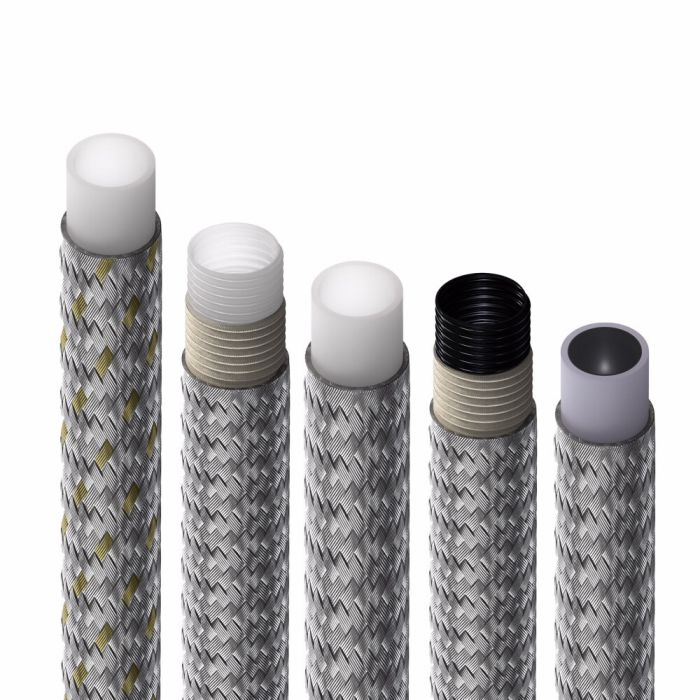

Hose Teflon SMOOTH BORE

Description & Features

Featuring a smooth bore and stainless steel cover, this Teflon hose is ideal for steam, compressor discharge, and chemical applications where premium abrasion resistance is required. The Eaton Everflex S Series hose construction includes an extruded Teflon tube with a braided cover, providing a wide temperature range and making it impervious to degradation and able to withstand vibration and impulsing. This Hose Teflon SMOOTH BORE has a minimum bend radius of 2 inches.

This non-conductive hose is SAE 100R14A certified. It is qualified for use with Everswage hose fittings.

SKU: S-5

Supplier Part Number (MPN): S-5

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X16375	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14A	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -5	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 2	Minimum Bend Radius 2	Minimum Working Temperature -65	Net Pack Quantity Units FT	NMFC 70	Product Width 0.40	Qualified Hose Fittings Everswage	Reinforcement Material None	Sub Brand Everflex	Supplier Part Number S-5	Tube Material Teflon	Product Weight 0.39 lbs

Product Questions & Answers (1)

Question by: Travis C on May 22, 2025, 2:17 PM

Reckon this would hold up okay for running steam through it, like from a pressure washer?

Answer by: Customer Support on May 24, 2025, 9:01 AM

This Teflon hose is ideally suited for steam applications, so it should work fine for your pressure washer as long as you stay within the specified temperature range. It's also good for compressor discharge and most chemical applications.
