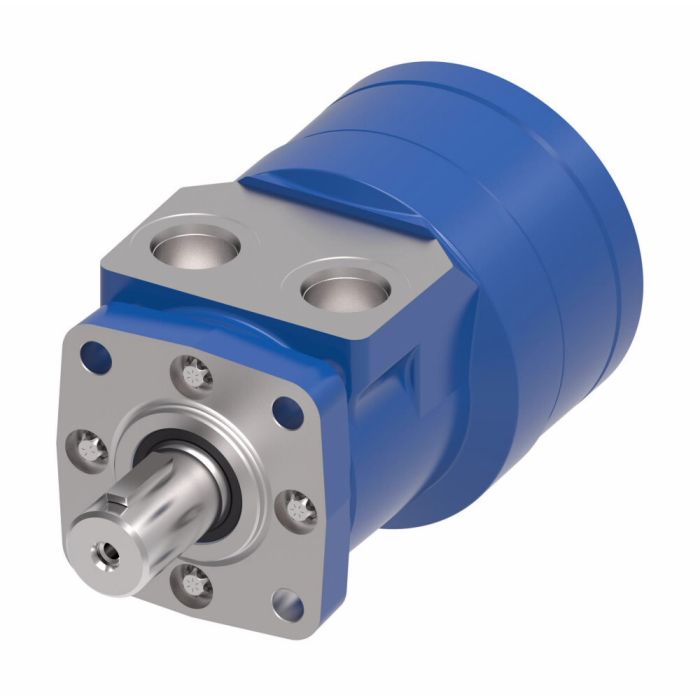

S Series Geroler Motor, 13.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Description & Features

Designed for agricultural and industrial duty cycles, the Eaton Char-Lynn S Series Geroler Motor delivers 13.70 cu in/rev displacement with a rated torque output of 372 Nm. The 4-bolt mounting flange and 1 in. straight keyed shaft provide straightforward mechanical integration, while the 7/8-14 straight-thread O-ring ports support reliable, leak-resistant connections in demanding service environments.

The S Series Geroler Motor is well suited for agricultural augers, harvesters, seeders, food processing equipment, and machine tools. Extended bearing life and an increased shaft seal rating contribute to sustained performance under continuous load. Maximum case pressure is rated at 1,500 PSI, with an operating temperature ceiling of 180°F. The motor is compatible with premium anti-wear hydraulic fluid maintained at ISO Cleanliness Code level 18/13.

SKU: 103-1014

Supplier Part Number (MPN): 103-1014-012

Alternate Part Numbers: C1AG76

Specifications

Application Agricultural augers, Food processing, Machine tools, Harvesters, Seeders	Design Code 12	Displacement 13.70	Displacement 13.7	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Compact yet powerful\|Extended bearing life\|Increased shaft seal	Identification None	Mount 4 Bolt	Mount 4 Bolt	Port Type .875-14 UNF-2B SAE O-Ring Ports	Ports 7/8-14 St.Thd. O-Ring	Ports 7/8-14 St.Thd. O-Ring	Shaft 1 in. Straight Keyed	Shaft 1 in. Straight Keyed	Supplier Part Number 103-1014-012	Torque Rating 372 newton metre	Torque Rating 372 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 103-1014-012, Alternate Part Number C1AG76, Alternate Part Number MINO-00162X02572	Product Weight 16.00 lbs

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
103-1040 S Series Geroler Motor	22.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1002 S Series Geroler Motor	4.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1003 S Series Geroler Motor	5.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1004 S Series Geroler Motor	10.1	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1005 S Series Geroler Motor	11.4	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1006 S Series Geroler Motor	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1007 S Series Geroler Motor	18.2	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1008 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1011 S Series Geroler Motor	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1013 S Series Geroler Motor	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1014 S Series Geroler Motor	13.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1015 S Series Geroler Motor	18.2	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1016 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1024 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	Manifold	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1026 S Series Geroler Motor	4.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1027 S Series Geroler Motor	5.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1028 S Series Geroler Motor	10.1	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1029 S Series Geroler Motor	11.4	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1030 S Series Geroler Motor	13.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1031 S Series Geroler Motor	18.2	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1032 S Series Geroler Motor	22.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1034 S Series Geroler Motor	4.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1035 S Series Geroler Motor	5.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1036 S Series Geroler Motor	10.1	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1037 S Series Geroler Motor	11.4	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1038 S Series Geroler Motor	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1039 S Series Geroler Motor	17.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1537 S Series Geroler Motor	3.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1538 S Series Geroler Motor	7.3	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1539 S Series Geroler Motor	8.8	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1540 S Series Geroler Motor	3.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1542 S Series Geroler Motor	8.8	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1570 S Series Geroler Motor	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1571 S Series Geroler Motor	7.3	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1572 S Series Geroler Motor	8.8	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1573 S Series Geroler Motor	3.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1574 S Series Geroler Motor	7.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1575 S Series Geroler Motor	8.8	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2006 S Series Geroler Motor	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2016 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2038 S Series Geroler Motor	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3575 S Series Geroler Motor	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3577 S Series Geroler Motor	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3581 S Series Geroler Motor	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal

Product Questions & Answers (3)

Question by: Randy M on Apr 7, 2025, 1:40 PM

Is this motor gonna be alright for running a grain auger on my farm?

Answer by: Customer Support on Apr 9, 2025, 9:25 AM

This S Series motor works well in agricultural applications such as augers. Just make sure your specific auger setup is within the motor's torque rating of 372 newton metres.

Question by: Judy M on Mar 10, 2026, 8:04 AM

been running a harvester with a busted motor and tryna figure out if this one'll hold up to the work -- what kind of torque output are we talkin on this thing?

Answer by: Customer Support on Mar 12, 2026, 6:30 AM

Rated at 372 newton metres, this motor puts out solid torque for that kind of agricultural work. Harvesters are actually one of the listed applications for it, so you're in the right ballpark. Just make sure you do a proper break-in before throwing it into full load duty -- about an hour at 30% of rated pressure does it, and the motor needs to be filled with fluid before any load goes on it.

Question by: Ralph W on Oct 25, 2025, 7:15 PM

got a motor mount with a 4 bolt flange already. is this one the 4 bolt style and what ports does it take

Answer by: Customer Support on Oct 27, 2025, 6:57 AM

For fit-up, it uses a 4 bolt mounting flange and it has 7/8-14 UNF-2B SAE O-ring ports, listed as 7/8-14 straight thread O-ring.
