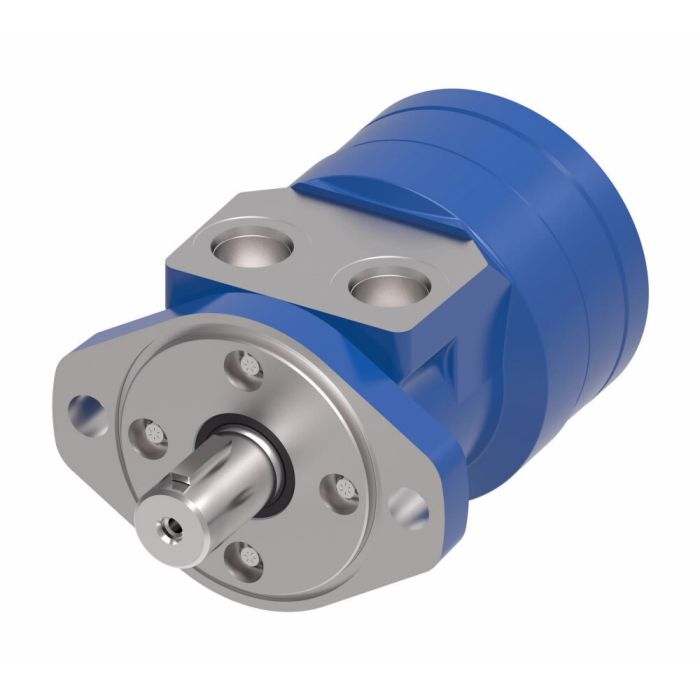

S Series Geroler Motor, 10.10 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Description & Features

Designed for demanding agricultural and industrial applications, the Eaton Char-Lynn S Series Geroler Motor delivers 10.10 cu in/rev displacement with a rated torque output of 301 Nm. The 2-bolt mounting flange and 1 in. straight keyed shaft offer straightforward integration into equipment such as harvesters, seeders, agricultural augers, food processing machinery, and machine tools.

The motor features 7/8-14 straight-thread O-ring ports and is built to operate within a maximum case pressure of 1,500 PSI and a maximum operating temperature of 180°F. Fluid viscosity should be maintained at 70 SUS at operating temperature, using a premium anti-wear hydraulic fluid meeting ISO Cleanliness Code level 18/13.

Extended bearing life and an increased shaft seal rating are key design attributes of this unit. The compact form factor makes it well suited for installations where space is constrained without sacrificing torque capacity.

SKU: 103-1036

Supplier Part Number (MPN): 103-1036-012

Alternate Part Numbers: C1ZZ49

Specifications

Application Agricultural augers, Food processing, Machine tools, Harvesters, Seeders	Design Code 12	Displacement 10.10	Displacement 10.1	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Compact yet powerful\|Extended bearing life\|Increased shaft seal	Identification None	Mount 2 Bolt	Mount 2 Bolt	Port Type .875-14 UNF-2B SAE O-Ring Ports	Ports 7/8-14 St.Thd. O-Ring	Ports 7/8-14 St.Thd. O-Ring	Shaft 1 in. Straight Keyed	Shaft 1 in. Straight Keyed	Supplier Part Number 103-1036-012	Torque Rating 301 newton metre	Torque Rating 301 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 103-1036-012, Alternate Part Number C1ZZ49, Alternate Part Number MINO-00162X02764	Product Weight 17.02 lbs

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
103-1040 S Series Geroler Motor	22.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1002 S Series Geroler Motor	4.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1003 S Series Geroler Motor	5.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1004 S Series Geroler Motor	10.1	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1005 S Series Geroler Motor	11.4	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1006 S Series Geroler Motor	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1007 S Series Geroler Motor	18.2	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1008 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1011 S Series Geroler Motor	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1013 S Series Geroler Motor	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1014 S Series Geroler Motor	13.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1015 S Series Geroler Motor	18.2	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1016 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1024 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	Manifold	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1026 S Series Geroler Motor	4.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1027 S Series Geroler Motor	5.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1028 S Series Geroler Motor	10.1	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1029 S Series Geroler Motor	11.4	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1030 S Series Geroler Motor	13.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1031 S Series Geroler Motor	18.2	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1032 S Series Geroler Motor	22.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1034 S Series Geroler Motor	4.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1035 S Series Geroler Motor	5.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1036 S Series Geroler Motor	10.1	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1037 S Series Geroler Motor	11.4	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1038 S Series Geroler Motor	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1039 S Series Geroler Motor	17.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1537 S Series Geroler Motor	3.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1538 S Series Geroler Motor	7.3	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1539 S Series Geroler Motor	8.8	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1540 S Series Geroler Motor	3.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1542 S Series Geroler Motor	8.8	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1570 S Series Geroler Motor	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1571 S Series Geroler Motor	7.3	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1572 S Series Geroler Motor	8.8	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1573 S Series Geroler Motor	3.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1574 S Series Geroler Motor	7.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1575 S Series Geroler Motor	8.8	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2006 S Series Geroler Motor	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2016 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2038 S Series Geroler Motor	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3575 S Series Geroler Motor	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3577 S Series Geroler Motor	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3581 S Series Geroler Motor	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal

Product Questions & Answers (3)

Question by: Roy R on May 9, 2025, 6:14 AM

I'm looking at using this on a seeder. Is that doable?

Answer by: Customer Support on May 10, 2025, 3:09 PM

This S Series Geroler motor is definitely suitable for agricultural seeders, along with augers, food processing equipment, and machine tools.

Question by: Earl C on Aug 28, 2025, 3:57 PM

got a 2-bolt mount and a 1 inch straight keyed shaft on my setup. is this motor that same style, or am i barkin up the wrong tree?

Answer by: Customer Support on Aug 29, 2025, 4:54 PM

You’re looking at a motor built with a 2 bolt mounting flange and a 1 in. straight keyed shaft, so it matches that mounting and shaft style. Ports are 7/8-14 straight thread SAE O-ring (UNF-2B), so your hydraulic connections needs to match that port type too.

Question by: Shawn K on Mar 30, 2025, 5:06 PM

got a seeder setup running a 10 cube motor right now and wondering if this one would swap in clean, same displacement and shaft size?

Answer by: Customer Support on Apr 1, 2025, 9:26 AM

At 10.1 cubic inches per revolution with a 1 inch straight keyed shaft, this motor lines up well for that kind of swap on seeder applications. The mounting is a 2-bolt flange configuration and the ports are 7/8-14 straight thread O-ring type, so those are the two other details worth matching up before you pull the trigger. The S Series is actually listed for seeder use, so you're in the right neighborhood application-wise.
