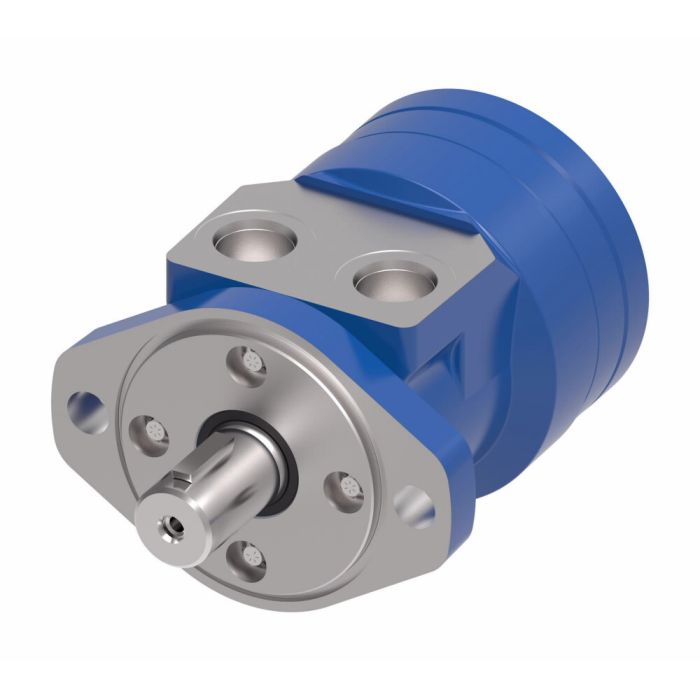

main product photo

S Series Geroler Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Ask A Question

Description & Features

Ideal for agricultural and industrial applications such as augers, food processing, and machine tools, the Eaton Char-Lynn S Series Geroler Motor is engineered for reliable performance. Featuring a 7.30 cubic inch per revolution displacement, this compact yet powerful motor is designed with a 2-bolt mounting flange and a 1-inch straight keyed shaft. The 7/8-14 UNF-2B SAE O-Ring ports ensure secure connections, while the enhanced shaft seal and extended bearing life increase durability under various conditions.

The motor's robust construction supports a maximum case pressure of 1500 PSI and operates efficiently with premium quality, anti-wear hydraulic fluid. To maximize the lifespan and efficiency of this motor, a recommended break-in period at 30% of the rated pressure is advised. The motor is compatible with a fluid viscosity of 70 SUS at operating temperatures, and an ISO cleanliness code level of 18/13 is suggested for optimal performance.

SKU: 103-1538

Supplier Part Number (MPN): 103-1538-012

Alternate Part Numbers: C1HC88

Specifications

Application
Agricultural augers, Food processing, Machine tools, Harvesters, Seeders
Design Code
12
Displacement
7.30
Displacement
7.3
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Compact yet powerful|Extended bearing life|Increased shaft seal
Identification
None
Mount
2 Bolt
Mount
2 Bolt
Port Type
.875-14 UNF-2B SAE O-Ring Ports
Ports
7/8-14 St.Thd. O-Ring
Ports
7/8-14 St.Thd. O-Ring
Shaft
1 in. Straight Keyed
Shaft
1 in. Straight Keyed
Supplier Part Number
103-1538-012
Torque Rating
237 newton metre
Torque Rating
237 newton metre
Valve Options
None
Alternate Part Numbers
Alternate Part Number 103-1538-012, Alternate Part Number C1HC88
Product Weight
16.05 lbs
