S Series Geroler Motor, 8.80 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Description & Features

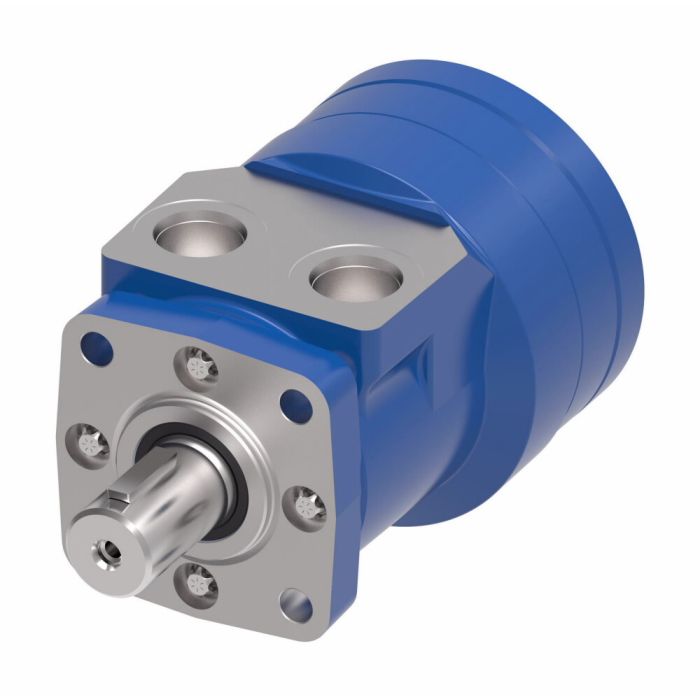

Rated at 8.80 cu in/rev displacement with a torque output of 265 Nm, this Eaton Char-Lynn S Series Geroler Motor is well-suited for demanding agricultural and industrial applications including harvesters, seeders, augers, and food processing equipment. The 4-bolt mounting flange and 1 in. straight keyed shaft provide a secure, straightforward installation, while 7/8-14 straight-thread O-ring ports support reliable hydraulic connections.

The S Series Geroler Motor is built with extended bearing life and an increased shaft seal capacity, making it a dependable choice for continuous-duty machine tool and harvesting equipment use. Maximum case pressure is rated at 1,500 PSI, with an operating temperature limit of 180°F. The motor requires premium anti-wear hydraulic fluid maintained at 70 SUS viscosity at operating temperature, and is compatible with ISO Cleanliness Code level 18/13 filtration standards.

SKU: 103-1572

Supplier Part Number (MPN): 103-1572-012

Alternate Part Numbers: C1LW62

Specifications

Application Agricultural augers, Food processing, Machine tools, Harvesters, Seeders	Design Code 12	Displacement 8.80	Displacement 8.8	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Compact yet powerful\|Extended bearing life\|Increased shaft seal	Identification None	Mount 4 Bolt	Mount 4 Bolt	Port Type .875-14 UNF-2B SAE O-Ring Ports	Ports 7/8-14 St.Thd. O-Ring	Ports 7/8-14 St.Thd. O-Ring	Shaft 1 in. Straight Keyed	Shaft 1 in. Straight Keyed	Supplier Part Number 103-1572-012	Torque Rating 265 newton metre	Torque Rating 265 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 103-1572-012, Alternate Part Number C1LW62, Alternate Part Number MINO-00162X02662	Product Weight 15.35 lbs

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
103-1040 S Series Geroler Motor	22.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1002 S Series Geroler Motor	4.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1003 S Series Geroler Motor	5.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1004 S Series Geroler Motor	10.1	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1005 S Series Geroler Motor	11.4	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1006 S Series Geroler Motor	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1007 S Series Geroler Motor	18.2	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1008 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1011 S Series Geroler Motor	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1013 S Series Geroler Motor	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1014 S Series Geroler Motor	13.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1015 S Series Geroler Motor	18.2	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1016 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1024 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	Manifold	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1026 S Series Geroler Motor	4.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1027 S Series Geroler Motor	5.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1028 S Series Geroler Motor	10.1	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1029 S Series Geroler Motor	11.4	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1030 S Series Geroler Motor	13.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1031 S Series Geroler Motor	18.2	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1032 S Series Geroler Motor	22.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1034 S Series Geroler Motor	4.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1035 S Series Geroler Motor	5.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1036 S Series Geroler Motor	10.1	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1037 S Series Geroler Motor	11.4	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1038 S Series Geroler Motor	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1039 S Series Geroler Motor	17.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1537 S Series Geroler Motor	3.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1538 S Series Geroler Motor	7.3	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1539 S Series Geroler Motor	8.8	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1540 S Series Geroler Motor	3.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1542 S Series Geroler Motor	8.8	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1570 S Series Geroler Motor	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1571 S Series Geroler Motor	7.3	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1572 S Series Geroler Motor	8.8	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1573 S Series Geroler Motor	3.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1574 S Series Geroler Motor	7.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1575 S Series Geroler Motor	8.8	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2006 S Series Geroler Motor	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2016 S Series Geroler Motor	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2038 S Series Geroler Motor	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3575 S Series Geroler Motor	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3577 S Series Geroler Motor	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3581 S Series Geroler Motor	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal

Product Questions & Answers (3)

Question by: Merle H on Jun 4, 2025, 7:25 PM

got a char-lynn motor with SAE o-ring ports, are these the 7/8-14 straight thread ones?

Answer by: Customer Support on Jun 6, 2025, 6:25 AM

Port-wise, you’re looking at 7/8-14 UNF-2B SAE O-ring ports, listed as 7/8-14 straight thread O-ring ports. That matches the common SAE straight thread O-ring style in that size.

Question by: Harvey B on Jul 19, 2025, 4:06 PM

what's the break-in procedure on this motor? got one going on a grain auger setup and don't want to burn it up right out of the gate

Answer by: Customer Support on Jul 21, 2025, 7:01 AM

Run it for about an hour at roughly 30% of rated pressure before you put it under a full load. Make sure the motor is primed with hydraulic fluid before you ever apply any load to it. Skipping that step is usually what causes early wear on these. Following that break-in sequence goes a long way toward getting the full service life out of it.

Question by: Daryl F on May 2, 2025, 8:35 PM

Will this motor work on a seeder?

Answer by: Customer Support on May 4, 2025, 10:01 AM

This S Series Geroler motor is applicable for use in seeders, according to the product information. It's also good for agricultural augers, food processing, and machine tools.
