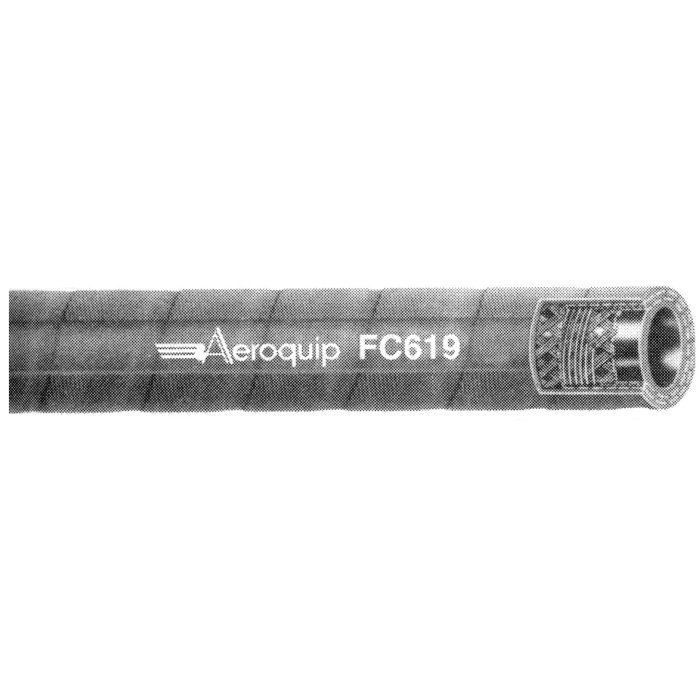

Wire Inserted Suction SAE 100R4 Black Hose

Description & Features

Application	Suction and transfer applications for petroleum hydraulic fluids, fuel, lubricating oils, gasoline, water and many other industrial fluids. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on
Construction	Synthetic rubber inner tube, reinforcement consisting of a helical wire between two textile braids and black synthetic rubber cover with orange layline.
Crimp Fittings	Global TTC (Steel, Stainless Steel), -12 requires buffing, -20 requires 1AT or 1AV part number. Global TTC12 , -12 only, no buffing required. Field Crimp, -12 and -16 only.
Fitting Attachment	T-Bolt Clamps (stainless band)
Industrial Reusable Fittings & Attachment Suggestions	Shank Type Combination Nipples attached with T-Bolt Band Clamps or Preformed Clamps.
Note	Maximum working pressure for clamped hose assembly is 50 psi.
Reusable Fittings	Shank Type Combination Nipples (Steel, Stainless Steel)
Temperature Range	-40°F to +275°F.

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
FC619-12 SAE 100R4 Black Suction Hose	0.75	1.21	300	2.5	28	Rolls Only
FC619-16 SAE 100R4 Black Suction Hose	1	1.48	250	3	28	Rolls Only
FC619-24 SAE 100R4 Black Suction Hose	1.5	2.04	150	5	28	Rolls Only
FC619-20 SAE 100R4 Black Suction Hose	1.25	1.75	200	4	28	Rolls Only
FC619-32 SAE 100R4 Black Suction Hose	2	2.55	100	6	28	Rolls Only
FC619-40 SAE 100R4 Black Suction Hose	2.5	3.12	62	14	28	Rolls Only
