Single Wire Braid SAE 100R5 Performance Hose

Description & Features

Application	Hydraulics, gasoline, fuel and lubricating oils, air and water. Except air, not to exceed 250 psi or +160°F. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on

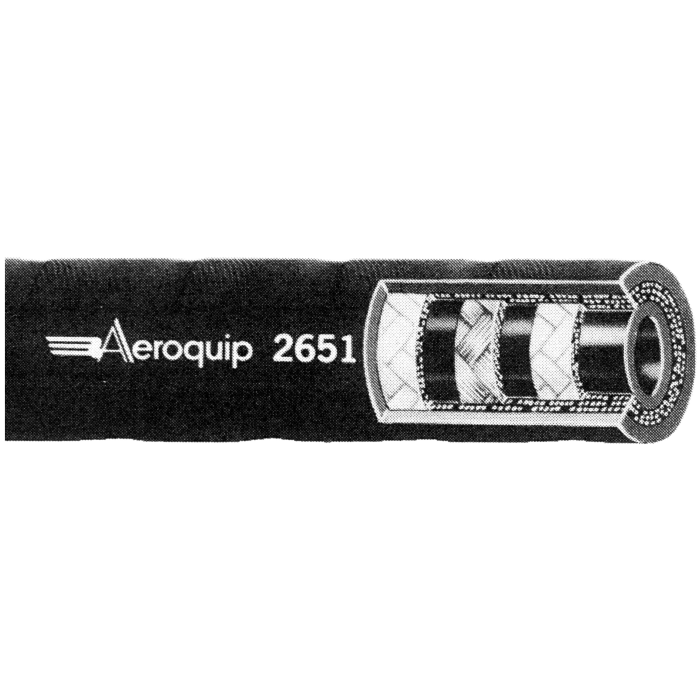

Construction	Synthetic rubber tube, textile inner braid, single wire braid reinforcement, outer textile braid and black synthetic rubber cover.
Temperature Range	-40°F to +212°F, except air +160°F.

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2651-8 SAE 100R5 Performance Hose	0.41	0.75	2000	4.62	28	470-620
2651-12 SAE 100R5 Performance Hose	0.62	1.08	1500	6.5	28	230-300
2651-16 SAE 100R5 Performance Hose	0.88	1.23	800	7.38	20	180-240
2651-20 SAE 100R5 Performance Hose	1.12	1.5	625	9	20	Rolls Only
2651-4 SAE 100R5 Performance Hose	0.19	0.52	3000	3	28	540-720
2651-6 SAE 100R5 Performance Hose	0.31	0.68	2250	4	28	320-420
