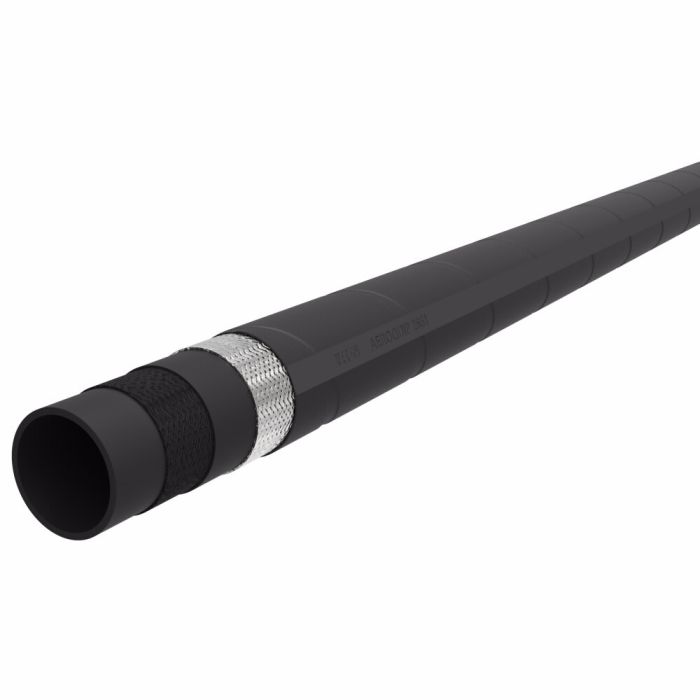

Single Wire Braid SAE 100R5 Performance Hose, 0.62 Inch ID, Up to 1500.00 PSI

Ask A Question

Description & Features

Engineered to handle hydraulics, gasoline, fuel, lubricating oils, air, and water applications, this advanced hose meets SAE 100R5 standards. The Danfoss Power Solutions (II LLC Aeroquip) hose features a robust synthetic rubber tube and an outer textile braid, ensuring excellent durability and performance.

Constructed with a single wire braid reinforcement, the hose offers impressive impulse cycle life and is designed to withstand a wide temperature range from -40deg;F to +212deg;F, except for air at +160deg;F. The chloroprene rubber cover provides standard abrasion resistance and protection.

This hydraulic hose, specifically designed for critical industrial tasks, sports a diameter of 0.62 inch and an outer diameter of 1.08 inch, capable of operating at pressures up to 1500 PSI. It also maintains its flexibility with a minimum bend radius of 6.5 inches, ensuring adaptable use in diverse systems.

MPN: C1BH98

Supplier Part Number: 2651-12RL

Specifications

Abrasion Resistance
29
Application
Hydraulics, gasoline, fuel and lubricating oils, air and water.
Color
Black
Conductivity
30
Construction
2-ply braid
Cover Material
Chloroprene Rubber
Dash Size
-12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.62
Hose O.D.
1.08
Impulse Cycle Life
500000 cycle
Lay Line Style
Embossed
Maximum Operating Pressure
1500
Minimum Bend Radius
6.50
Minimum Working Temperature
-40
Reel Qty (ft)
230-300
Reinforcement Material
Polyester and Wire
Supplier Part Number
2651-12RL
Tube Material
Synthetic Rubber
Vacuum Service
28
Alternate Part Numbers
Alternate Part Number C1BH98, Alternate Part Number MINO-00015X60022
Product Weight
1.20 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Single Wire Braid SAE 100R5 Performance Hose, 0.41 Inch ID, Up to 2000.00 PSI

2651-8 SAE 100R5 Performance Hose

0.41

0.75

2000

4.62

28

470-620

Single Wire Braid SAE 100R5 Performance Hose, 0.88 Inch ID, Up to 800.00 PSI

2651-16 SAE 100R5 Performance Hose

0.88

1.23

800

7.38

20

180-240

Single Wire Braid SAE 100R5 Performance Hose, 1.12 Inch ID, Up to 625.00 PSI

2651-20 SAE 100R5 Performance Hose

1.12

1.5

625

9

20

Rolls Only

Single Wire Braid SAE 100R5 Performance Hose, 0.19 Inch ID, Up to 3000.00 PSI

2651-4 SAE 100R5 Performance Hose

0.19

0.52

3000

3

28

540-720

Single Wire Braid SAE 100R5 Performance Hose, 0.31 Inch ID, Up to 2250.00 PSI

2651-6 SAE 100R5 Performance Hose

0.31

0.68

2250

4

28

320-420

Product Questions & Answers (1)

Question by: Lee P on May 6, 2025, 10:41 AM
hose rated for fuel lines or just straight hydraulic use?
Answer by: Customer Support on May 8, 2025, 10:25 AM
Fuel service is absolutely within scope for this hose. It's built to SAE 100R5 standards and listed for hydraulics, gasoline, fuel, lubricating oils, air, and water. The synthetic rubber tube handles petroleum-based fluids well, which is why it shows up in fuel transfer and lube oil routing just as often as in hydraulic circuits.
