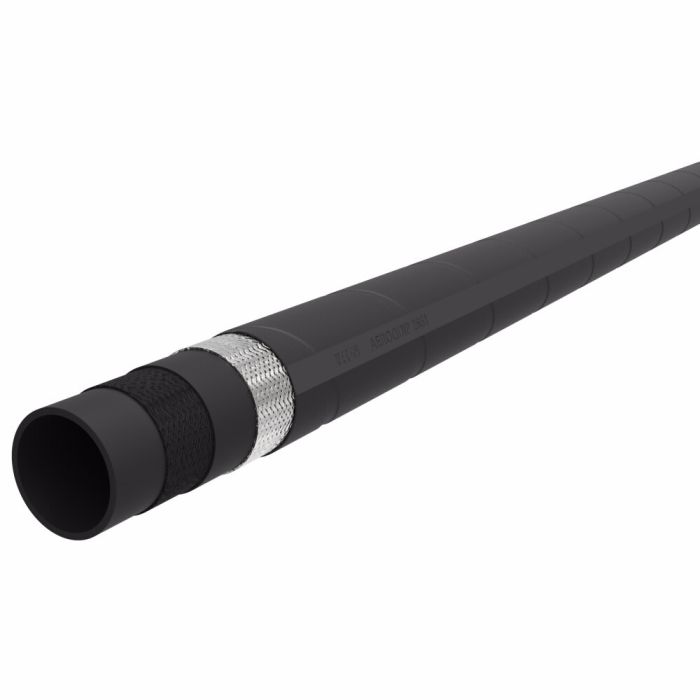

Single Wire Braid SAE 100R5 Performance Hose, 0.41 Inch ID, Up to 2000.00 PSI

Ask A Question

Description & Features

This hose, offered by Danfoss Power Solutions, is crafted for rigorous industrial applications such as hydraulics, gasoline, fuel, lubricating oils, air, and water. Constructed with a synthetic rubber tube, textile inner braid, single wire braid reinforcement, and a black synthetic rubber cover, it ensures durability and reliability.

Featuring a minimum bend radius of 4.62 inches, it handles a range of temperatures from -40deg;F to +212deg;F. For air applications, it should not exceed 250 PSI or +160deg;F.

Its chloroprene rubber cover offers standard abrasion resistance, while the polyester and wire reinforcement adds strength. The impulse cycle life of 500,000 cycles guarantees longevity.

The hose maintains conductivity and is available in a reel quantity of 470-620 feet. The embossed lay line style and 0.75-inch outer diameter further enhance its suitability for demanding environments.

Supplier Part Number: 2651-8RL

Specifications

Abrasion Resistance
29
Application
Hydraulics, gasoline, fuel and lubricating oils, air and water.
Color
Black
Conductivity
30
Construction
2-ply braid
Cover Material
Chloroprene Rubber
Dash Size
-8
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.41
Hose O.D.
0.75
Impulse Cycle Life
500000 cycle
Lay Line Style
Embossed
Maximum Operating Pressure
2000
Minimum Bend Radius
4.62
Minimum Working Temperature
-40
Reel Qty (ft)
470-620
Reinforcement Material
Polyester and Wire
Supplier Part Number
2651-8RL
Tube Material
Synthetic Rubber
Vacuum Service
28
Alternate Part Numbers
Alternate Part Number 2651-8RL, Alternate Part Number C1BJ16, Alternate Part Number MINO-00015X60027
Product Weight
0.75 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Single Wire Braid SAE 100R5 Performance Hose, 0.62 Inch ID, Up to 1500.00 PSI

2651-12 SAE 100R5 Performance Hose

0.62

1.08

1500

6.5

28

230-300

Single Wire Braid SAE 100R5 Performance Hose, 0.88 Inch ID, Up to 800.00 PSI

2651-16 SAE 100R5 Performance Hose

0.88

1.23

800

7.38

20

180-240

Single Wire Braid SAE 100R5 Performance Hose, 1.12 Inch ID, Up to 625.00 PSI

2651-20 SAE 100R5 Performance Hose

1.12

1.5

625

9

20

Rolls Only

Single Wire Braid SAE 100R5 Performance Hose, 0.19 Inch ID, Up to 3000.00 PSI

2651-4 SAE 100R5 Performance Hose

0.19

0.52

3000

3

28

540-720

Single Wire Braid SAE 100R5 Performance Hose, 0.31 Inch ID, Up to 2250.00 PSI

2651-6 SAE 100R5 Performance Hose

0.31

0.68

2250

4

28

320-420

Product Questions & Answers (2)

Question by: Travis D on Dec 18, 2025, 8:26 PM
Got a tight spot to route this line, what’s the smallest bend it’ll take without kinking up?
Answer by: Customer Support on Dec 20, 2025, 7:37 PM
Minimum bend radius on this hose is 4.62 inches, so you want your routing to stay at or above that radius to keep it from getting stressed.
Question by: Lance R on Apr 12, 2025, 7:05 PM
got a tight spot to route this line. how tight can i bend that -8 hose without kinkin it
Answer by: Customer Support on Apr 14, 2025, 3:32 PM
For this -8 (0.41 inch ID) SAE 100R5 hose, the minimum bend radius is 4.62 inches. Staying at or above that radius helps keep it from kinking and protects the reinforcement.
