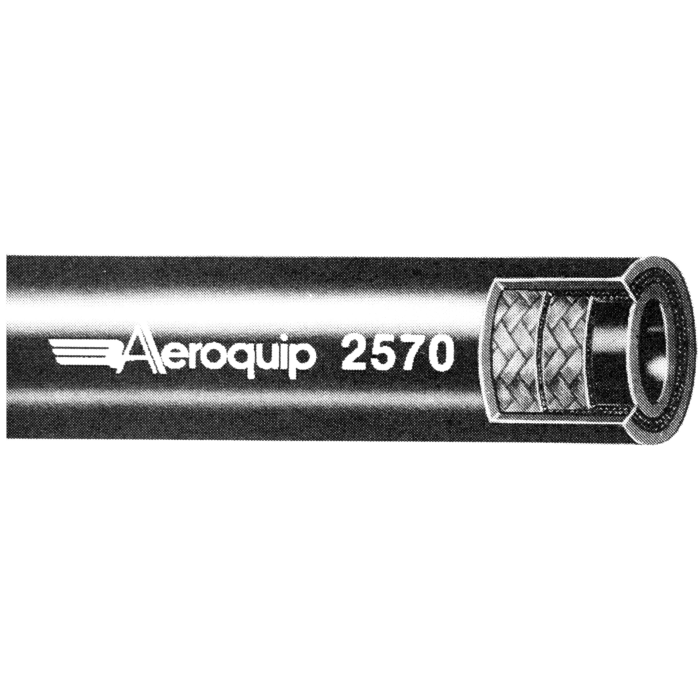

Air Brake SAE J1402 (FMVSS106) Hose

Description & Features

Application	Tractor to trailer lines, axle chamber lines and tractor service lines. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on
Construction	Synthetic rubber tube, double textile braid and black synthetic rubber cover.
Reusable Fittings	Aeroquip® Reusable Air Brake Fittings, (-6 and -8 only).
Temperature Range	-40°F to +212°F.

Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Burst Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)	Price	Action
2570-6 SAE J1402 Air Brake Hose	0.38	0.75	225		1.75		450-475

Product Questions & Answers (1)

Question by: Jimmy M on Jun 10, 2025, 9:27 AM

Can I use regular Aeroquip fittings with this hose or do I need something special?

Answer by: Customer Support on Jun 12, 2025, 6:04 AM

You'll want to stick with Aeroquip® Reusable Air Brake Fittings, and only in the -6 and -8 sizes. Other fittings might not give you the proper seal and could cause problems down the road.
