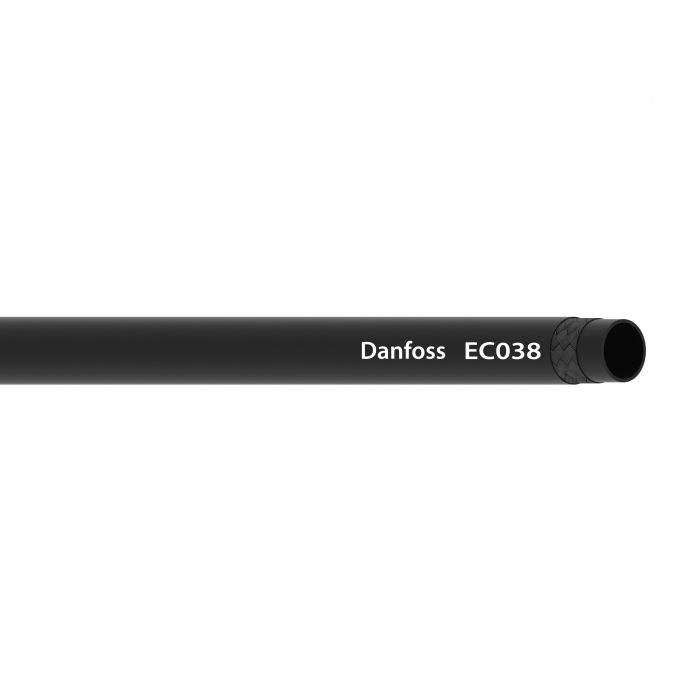

WEATHERHEAD H338 Air Brake Hose

Ask A Question

Description & Features

The Danfoss / Eaton EC038 Series Airbrake Hose and Tubing provides robust performance for air brake applications. Featuring a construction of one-ply braid with a perforated EPDM cover this black hose is designed to last under harsh operating conditions. The high-quality proprietary blended nylon materials ensure maximum durability.

Preferred for tractor to trailer axle chamber and tractor service air brake lines it conforms to SAE J1402 and SAE J1402A standards and meets DOT AII and DOT FMVSS 106 compliance requirements. The hoses polyester reinforcement and conductive properties add to its reliability and it boasts a minimum bend radius of 2 inches.

The minimum working temperature is -40 degrees and it has an impressive impulse cycle life of 1 000 000 cycles. Qualified with 338 P and 338 B fittings this lightweight hose offers improved flexibility essential for demanding applications.

ECCN: EAR99

Part Number: EC03808-250R

Specifications

Abrasion Resistance
Standard
Cover Material
EPDM
Cover Style
Perforated
Dash Size
08
For Use With
338 P and 338 B Series Hose Fittings
Hose Color
Black
Hose Type
Conductive
Impulse Cycle
1000000
Impulse Cycle Life
1000000
Inside Diameter
1/2 in
Lay Line Style
Inkjet
nmfc
70
Nominal Size
1/2 in
Package Form
Reel
Reinforcement
1-Ply Braided Fabric
Resistance
Abrasion
Resistance Properties
Abrasion
Segment Code
A
Series
EC038 Series
Tube Material
EPDM

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Kirk M on Nov 12, 2025, 11:41 AM
Running tractor-trailer rigs and need to swap out the air brake lines. This hose rated for that kind of application, and what pressure does it hold up to?
Answer by: Customer Support on Nov 13, 2025, 2:32 PM
Tractor to trailer lines are exactly what this hose is built for, along with axle chamber lines and tractor service lines. It handles up to 225 PSI operating pressure, which covers standard air brake system demands. The 0.50 inch inner diameter and EPDM construction with polyester braid reinforcement give it solid durability for that kind of regular workload. It also carries SAE J1402 A, DOT AII, and FMVSS106 ratings, so it meets the certifications required for air brake use on commercial vehicles.
