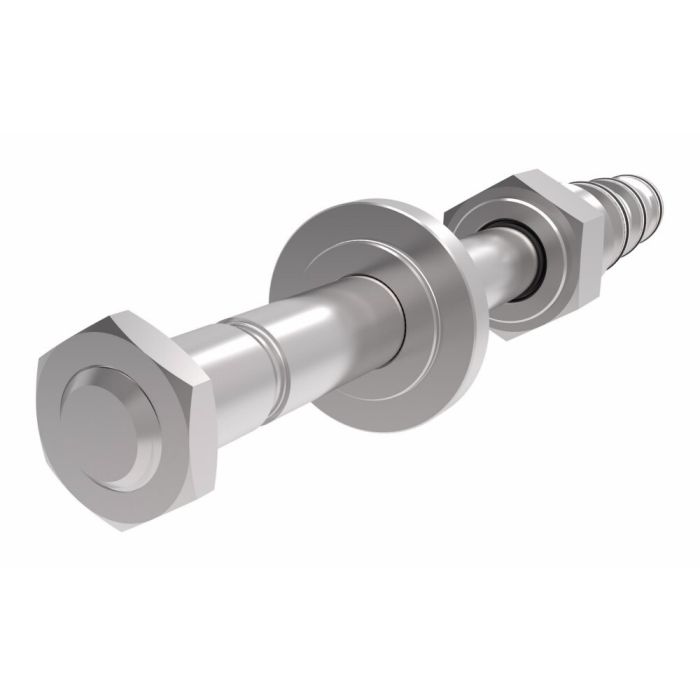

main product photo

SBV11-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The SBV11-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included from Danfoss Power Solutions is a reliable choice for mobile and industrial applications, including harvesters and refuse haulers. This solenoid valve features a compact and economical design, able to withstand pressures of up to 350 bar (5000 psi) and flow rates of up to 227 L/min (60 USgpm).

The direct-acting valve operates to block flow in both directions when de-energized, allowing flow in both directions when energized. It is constructed from hardened and ground steel for durability. Standard internal leakage is controlled at a maximum of 5 drops per minute at 5000 PSI.

Installation is simplified thanks to its screw-in cartridge type, and it's designed with Buna-N seals for optimal performance. The recommended filtration level is 18/16/13 microns, ensuring clean operation. Please note, a steel housing or manifold is required for pressures exceeding 3000 PSI.

Coils and housing are sold separately, with the required cavity size being C-10-2. Operating temperature ranges from -40deg;F to 212deg;F.

Model Number: SBV11-10-C-0-00

Supplier Part Number: 02-177580

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13 microns
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
Bi-Directional 2-Way 2-Position Normally Closed
Supplier Part Number
02-177580
Switch Connector
No
Valve Material
Cartridge only
Product Weight
0.40 lbs
Alternate Part Numbers
Alternate Part Number C1HY32, Alternate Part Number DSSBV11 10 C 0 00, Alternate Part Number SBV1110C000

Related Documents

Similar Products

Model Number Part Number Housing Coil Seal Material Price Action
SBV11-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SBV11-10-C-0-00 SBV11-10-C Series Cartridge Valve

02-177580

None

Not Included

Buna-N

Product Questions & Answers (1)

Question by: Harold W on May 28, 2025, 8:36 PM
Will this valve work okay in a hydraulic system on a cotton picker?
Answer by: Customer Support on May 30, 2025, 7:52 AM
It's a good fit for mobile equipment like harvesters, so it should do the job. Just be sure your system's pressure doesn't go over 5000 PSI, and that you have a steel housing if you are above 3000 PSI.
