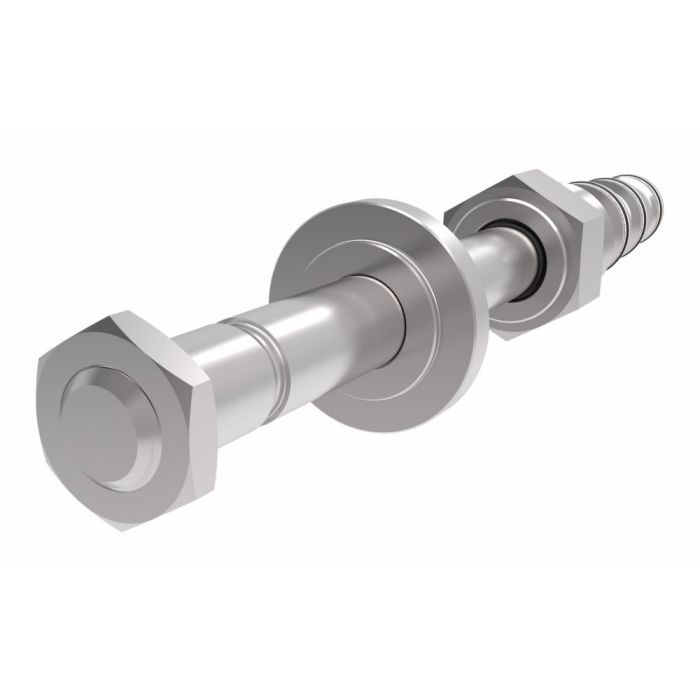

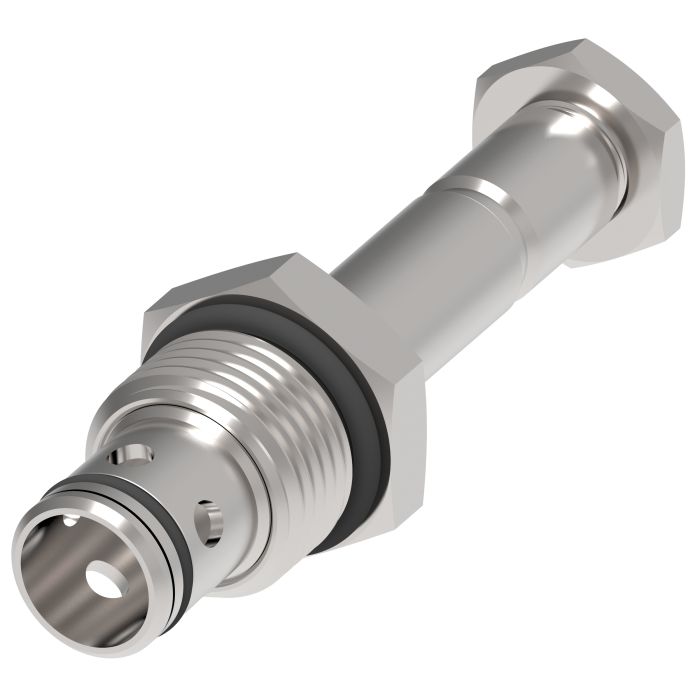

SBV11-10-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The SBV11-10-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included is designed for harvesters, refuse haulers, as well as mobile and industrial applications. Its direct-acting operation allows for flow in both directions when de-energized, and blocks flow when energized.

This product supports a maximum pressure rating of 5000 PSI (note: pressures exceeding 3000 PSI require a steel housing or manifold). It comes equipped with hardened and ground steel for durability and is recommended to operate with ISO 4406 Cleanliness Level 18/16/13 or cleaner.

Key technical specifications include a flow rating of 20 GPM and an internal leakage rate of 5 drops per minute maximum at 5000 PSI. The valve features Buna-N seals and requires a cavity size C-10-2 housing, which is sold separately. It shows a maximum operating temperature range from -40deg;F to 212deg;F.

Model Number: SBV11-10-0-0-00

Supplier Part Number: 02-177579

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
5 drops/min, max @ 350 bar
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
Bi-Directional 2-Way 2-Position Normally Open
Supplier Part Number
02-177579
Switch Connector
No
Valve Material
Cartridge only
Product Weight
0.39 lbs
Alternate Part Numbers
Alternate Part Number C1HY31, Alternate Part Number DSSBV11 10 0 0 00, Alternate Part Number SBV11100000

Related Documents

Similar Products

Model Number Part Number Housing Coil Seal Material Price Action
SBV11-10-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SBV11-10-0-0-00 SBV11-10-O Series Cartridge Valve

02-177579

None

Not Included

Buna-N

Product Questions & Answers (3)

Question by: Travis W on Dec 21, 2025, 9:49 PM
Will this here valve work okay on a log splitter? I'm pushing about 2800 PSI through it.
Answer by: Customer Support on Dec 23, 2025, 6:06 AM
This valve is rated up to 5000 PSI, but keep in mind that if you're going over 3000 PSI, you'll need to use a steel housing or manifold with it.
Question by: Kent B on Feb 3, 2026, 8:08 AM
got a question on how this one acts, is it open unless you power it up or the other way around?
Answer by: Customer Support on Feb 5, 2026, 6:06 AM
De-energized, it is normally open and will pass flow either direction through the cartridge. When you energize the solenoid, it shifts to block flow in both directions.
Question by: Shawn K on May 14, 2025, 4:04 PM
runs at 5000 psi but my setup's got a cast housing right now, that gonna be a problem?
Answer by: Customer Support on May 15, 2025, 5:47 PM
At pressures above 3000 PSI, a steel housing or manifold is required. Cast housings are not rated for the upper end of this valve's pressure range. If you're running anywhere near that 5000 PSI ceiling, you'll need to swap to a steel housing before putting this cartridge in service. The valve itself is rated for 5000 PSI, but what it's threaded into has to be up to that same standard.
