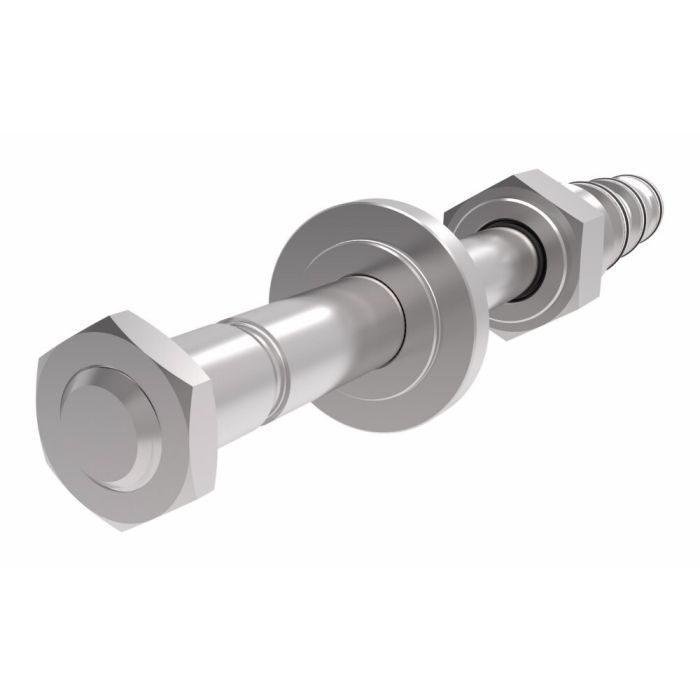

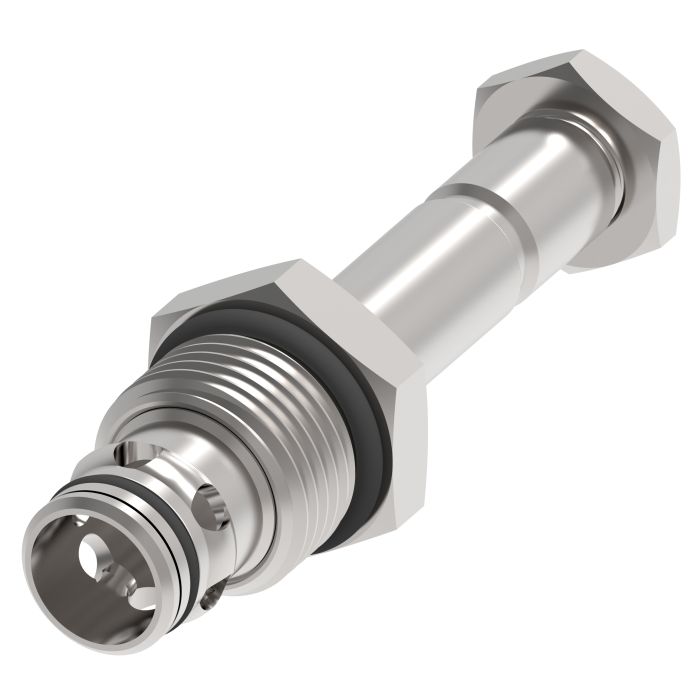

SBV11-12-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The Vickers by Danfoss / Eaton SBV11-12-C Series Solenoid Valves are engineered for reliability and efficiency in mobile and industrial applications.

Designed as a 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, this model is ideal for high-pressure environments with a maximum pressure rating of 5000 PSI. The valve operates in a direct-acting manner, ensuring precise flow control in both de-energized and energized positions.

Featuring a flow rating of 30 GPM and a recommended filtration level of ISO 4406 Cleanliness Level 18/16/13, this cartridge valve maintains optimal performance under rigorous conditions. The valve is constructed from hardened and ground steel, providing durability and longevity.

Installation is streamlined with its screw-in cartridge type, and it is specified to fit Cavity size C-12-2, sold separately. The SBV11-12-C model ensures minimal internal leakage, rated at a maximum of 5 drops per minute at 5000 PSI, enhancing its dependability.

With an operational temperature range of -40deg;F to 212deg;F, this solenoid valve is well-suited for diverse environments. The seal material is Buna-N, ensuring robust performance in demanding applications such as harvesters and refuse haulers.

Model Number: SBV11-12-C-0-00

Supplier Part Number: 02-177576

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
Bi-Directional 2-Way 2-Position Normally Closed
Supplier Part Number
02-177576
Switch Connector
No
Valve Material
Cartridge only
Product Weight
0.60 lbs
Alternate Part Numbers
Alternate Part Number C1LW47, Alternate Part Number SBV1112C000

Related Documents

Similar Products

Model Number Part Number Housing Coil Seal Material Price Action
SBV11-12-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SBV11-12-C-0-00 SBV11-12-C Series Cartridge Valve

02-177576

None

Not Included

Buna-N

Product Questions & Answers (3)

Question by: Howard B on Jan 4, 2026, 2:21 PM
runs at 5000 psi all day long on a refuse hauler, will internal leakage be a problem over time?
Answer by: Customer Support on Jan 5, 2026, 9:24 PM
At full rated pressure, maximum internal leakage on this valve is 5 drops per minute. For a refuse hauler running continuous duty at high pressure, that's a pretty tight spec and should hold up well under normal operating conditions. The cartridge body is hardened and ground steel, so it's not going to wear fast on the internal seating surfaces. Keep your fluid clean at ISO 4406 level 18/16/13 or better and you'll get the most life out of it.
Question by: Terry J on Apr 10, 2025, 3:52 PM
got a valve bank that’s already cut for a C-12-2 cavity. will this SBV11-12-C screw right in, or am i missing something?
Answer by: Customer Support on Apr 12, 2025, 6:34 AM
It’s a screw-in cartridge built for the C-12-2 cavity size, and it does require a machined cavity or housing to install. Keep in mind this SKU is the cartridge only, so the housing is sold separately and the coil is not included.
Question by: Roger R on Oct 30, 2025, 5:01 PM
Will this valve work in my harvester without a separate housing?
Answer by: Customer Support on Nov 1, 2025, 7:56 AM
No, this solenoid cartridge valve requires a machined cavity or housing for installation, specifically a C-12-2 size. It's sold separately.
