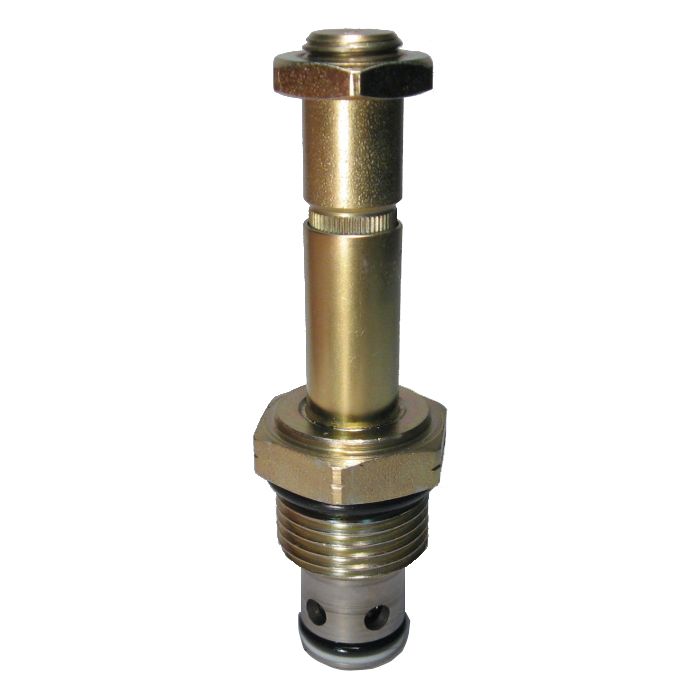

SBV11-12-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valves, Up To 30 GPM & 5000 PSI

Description & Features

Cartridge	Model SBV11-12-C*, sold separately.
Coil	H Series, sold separately, see
Group Description	The SBV11-12-C is a 2-way, 2-position, bi-directional, pilot operated, poppet-type, normally closed screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	30 GPM
Housing	Cavity size C-12-2, sold separately, see
Internal Leakage	5 drops per minute maximum @ 5000 PSI.
Operation	In the de-energized position, flow is blocked in both directions. In the energized position, flow is allowed in both directions.
Pressure Rating	5000 PSI. (CAUTION: Pressures over 3000 PSI require steel housing or manifold).
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40°F to 212°F

Products

Model Number	Part Number	Housing	Coil	Seal Material	Price	Action
SBV11-12-C-0-00 SBV11-12-C Series Cartridge Valve	02-177576	None	Not Included	Buna-N

Product Questions & Answers (1)

Question by: Janet D on Feb 15, 2026, 11:23 AM

If I hook this up to a system running around 3500 PSI, do I need a special housing for it?

Answer by: Customer Support on Feb 17, 2026, 8:31 AM

Yes, pressures exceeding 3000 PSI require a steel housing or manifold to safely contain the valve. Using a standard housing at that pressure could cause damage or failure.
