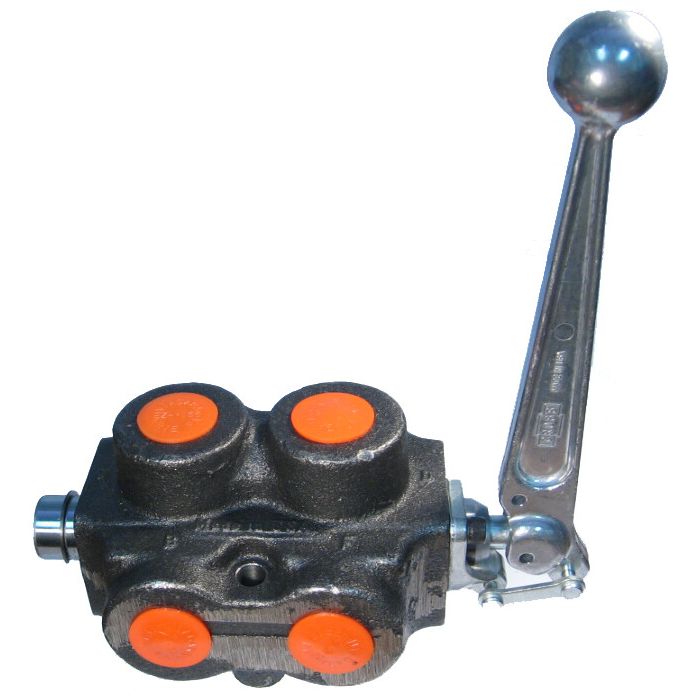

SD Series Double Selector Valve, 3/4 NPT Ports, Up To 40.00 GPM & 2500.00 PSI

Description & Features

Engineered by Cross Manufacturing this valve is ideal for demanding industrial applications. The SD Series Double Selector Valve 3/4 NPT Ports Up To 40.00 GPM & 2500.00 PSI features a high tensile strength cast iron body that ensures robust performance.

With a rated flow capacity of up to 40.00 GPM and a maximum operating pressure of 2500 PSI this valve is built for efficiency and reliability. It includes a selector spool and offers a manual spool positioning standard with an optional handle actuator port available on the D side.

The valve's construction incorporates a ground plated and polished steel spool along with durable Buna-N seals. These specifications guarantee smooth and dependable hydraulic control suitable for various high-demand environments.

Supplier Part Number: 129024

Specifications

Brand Cross®	Actuator Type Knob	Body Material Iron	Connection Type NPT	Domestic/Import Domestic	Finish Chrome-Plated	grp Available Options Actuator Location Port C Or Port D Side, Knob, Clevis, Handle, Plain Or Hydraulic Pilot Actuator, Manual, Spring Return, 2-Position Detent Or Hydraulic Pilot Spool Action, Selector Or Series/parallel Spool Type, SAE-8, SAE-12, SAE-16, 3/4 NPT Or 1 NPT Por	grp Construction High-Tensile Strength Cast Iron Body, Ground, Plated and Polished Steel Spool, Buna-N Seals	Nominal Size 3/4 in	Number of Handles 1	Number of Ports/Ways 6	Number of Positions 2	Seal Material Buna-N	Series SD Series

Product Questions & Answers (1)

Question by: Carl M on Dec 7, 2025, 7:53 PM

got a hydraulic circuit that sees around 35 to 40 gpm. is this selector valve gonna be the bottleneck?

Answer by: Customer Support on Dec 9, 2025, 5:42 PM

With a rated flow of up to 40 GPM, it is sized to handle that range. The main hard limits to stay inside are the 40 GPM rated flow and the 2500 PSI maximum operating pressure.
