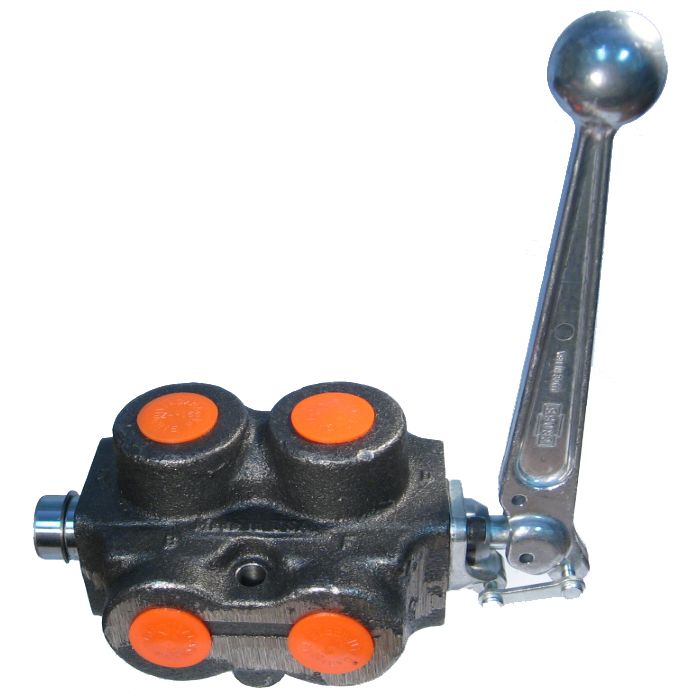

SD Series Double Selector Valves, Up To 2500 PSI & 40 GPM

Description & Features

Available Options	Actuator location port C or port D side. Knob, clevis, handle, plain or hydraulic pilot actuator. Manual, spring return, 2-position detent or hydraulic pilot spool action. Selector or Series/Parallel spool type. SAE-8, SAE-12, SAE-16, 3/4 NPT or 1 NPT ports.
Construction	High tensile strength cast iron body. Ground, plated and polished steel spool. Buna-N seals.

Model Number	Rated Flow	Maximum Operating Pressure	Features	Price	Action
SD4BALA4 SD Series Selector Valve	40	2500	Selector Spool. Optional Handle actuator port D side. Standard Manual spool positioning.

Question by: Kent C on Oct 13, 2025, 9:55 PM

Can you switch the handle on these selector valves to the other side if needed?

Answer by: Customer Support on Oct 15, 2025, 9:48 PM

Actuator location can be configured with the port on either the C or D side.
